Sunroof Motor/Actuator Replacement

Callout	Component Name
NOTE: Refer to Fastener Notice . Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the sunroof window. Refer to Sunroof Window Replacement . Remove the headliner. Refer to Headliner Replacement .
1	Sunroof Motor/Actuator Plug
2	Sunroof Motor/Actuator Screws (Qty: 3) Tighten: 10 N.m (89 lb in)
3	Sunroof Motor/Actuator Tip: Pull downward to disengage the motor/actuator from the sunroof module.

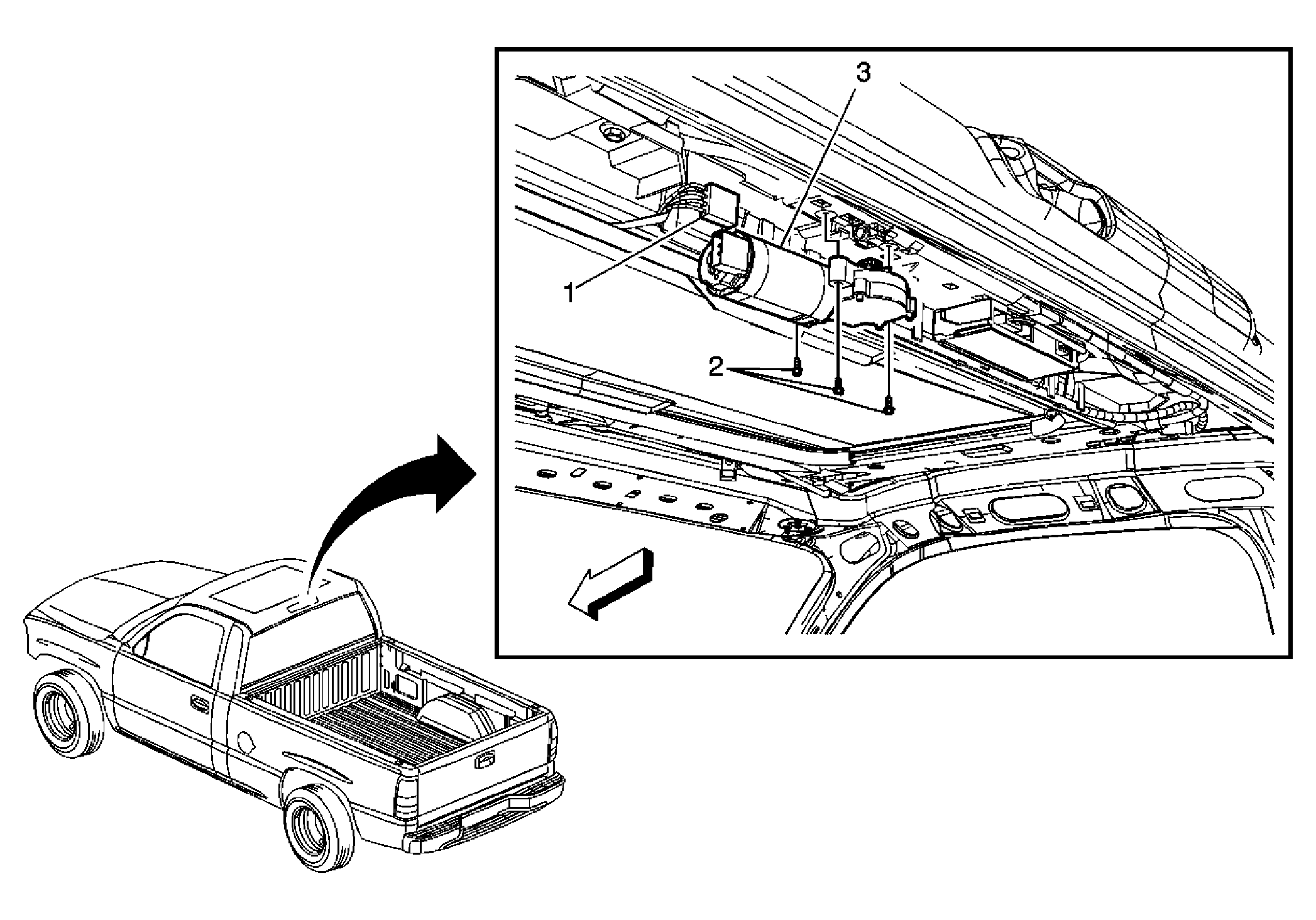

Fig 1: Locating Sunroof Motor/Actuator

Courtesy of GENERAL MOTORS CORP.
