Driver Seat Schematics

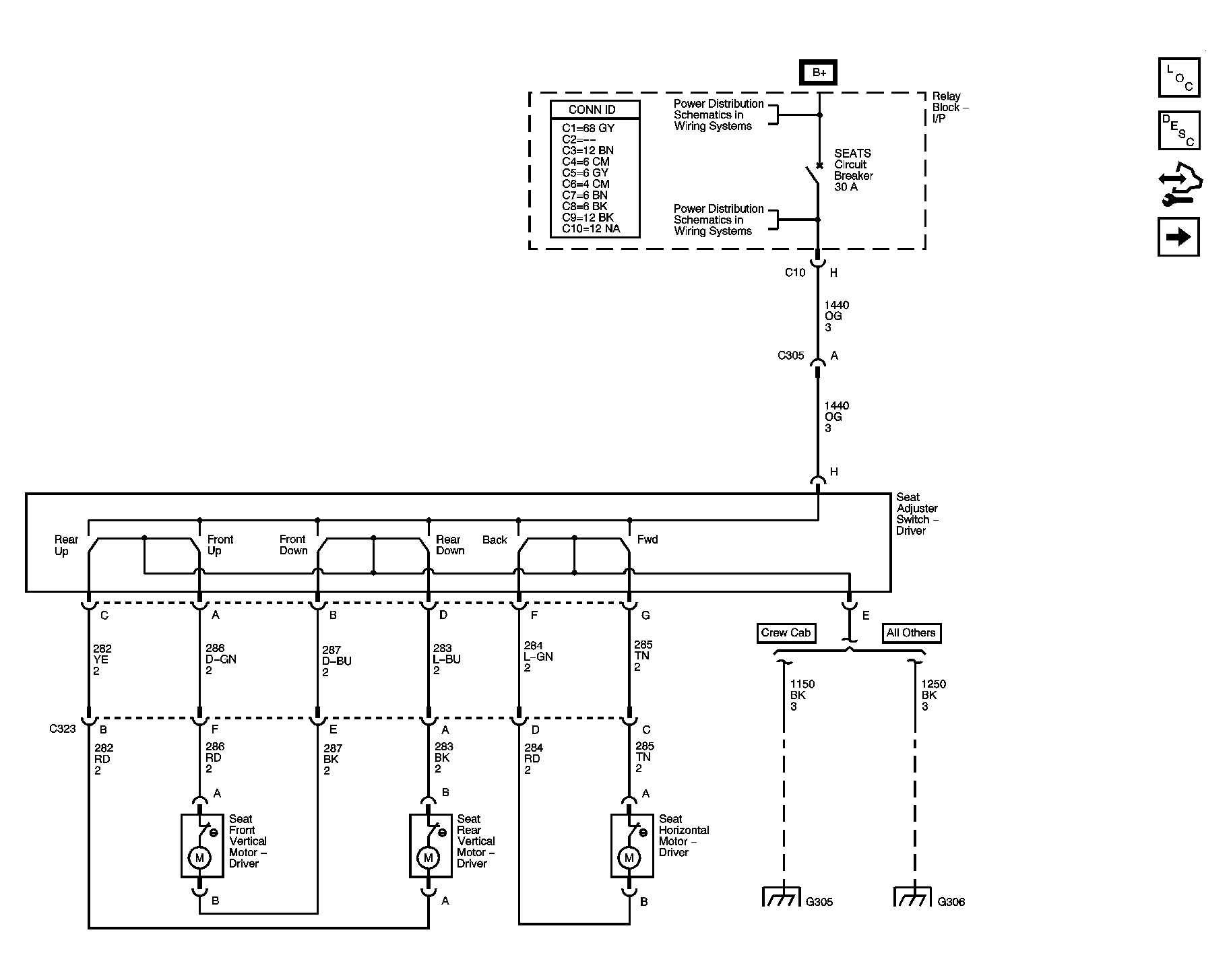

Fig 1: Driver - 6-Way
GM1570546Courtesy of GENERAL MOTORS CORP.

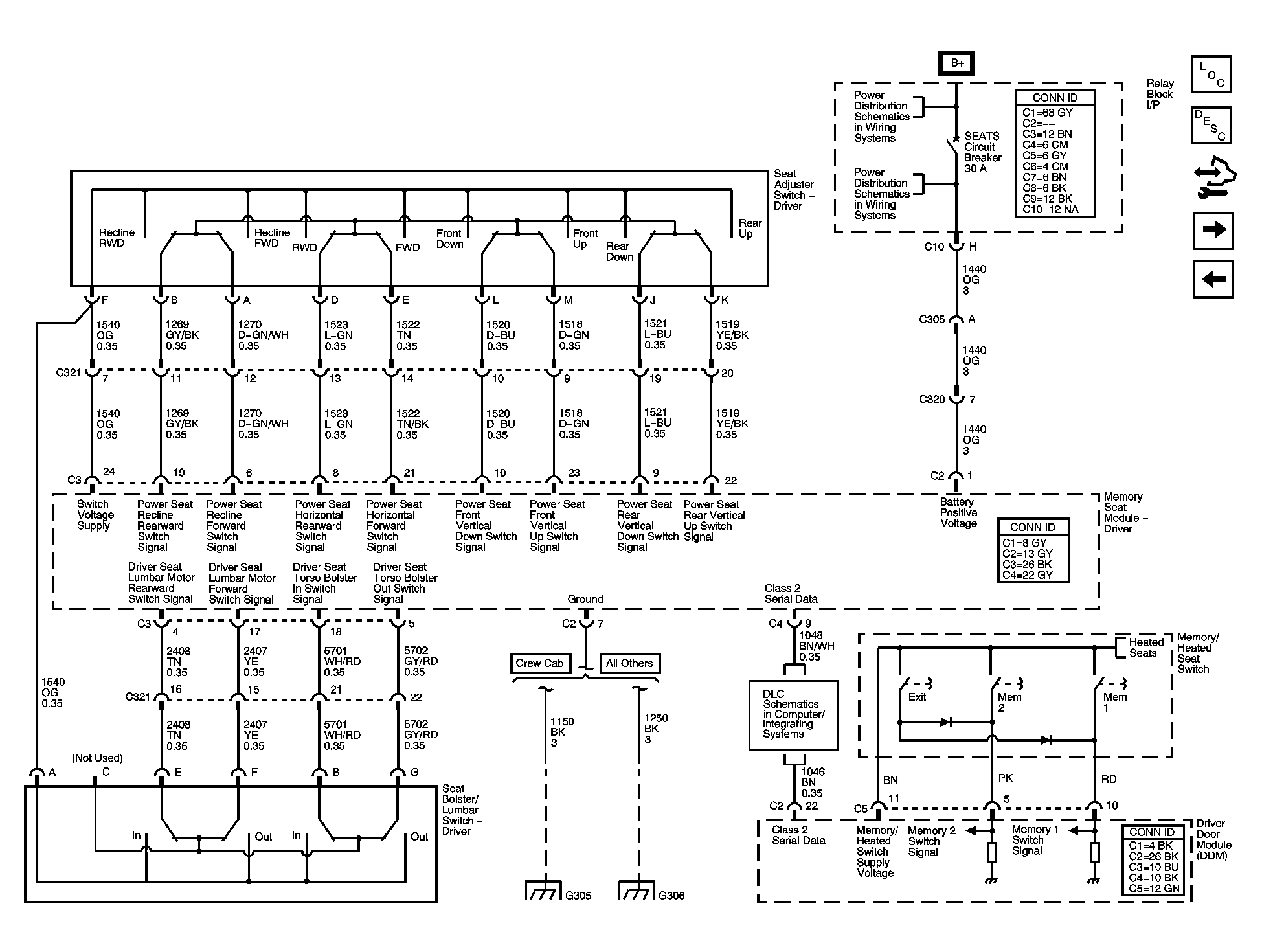

Fig 2: Power, Ground, Serial Data, and Seat Controls
GM1570550Courtesy of GENERAL MOTORS CORP.

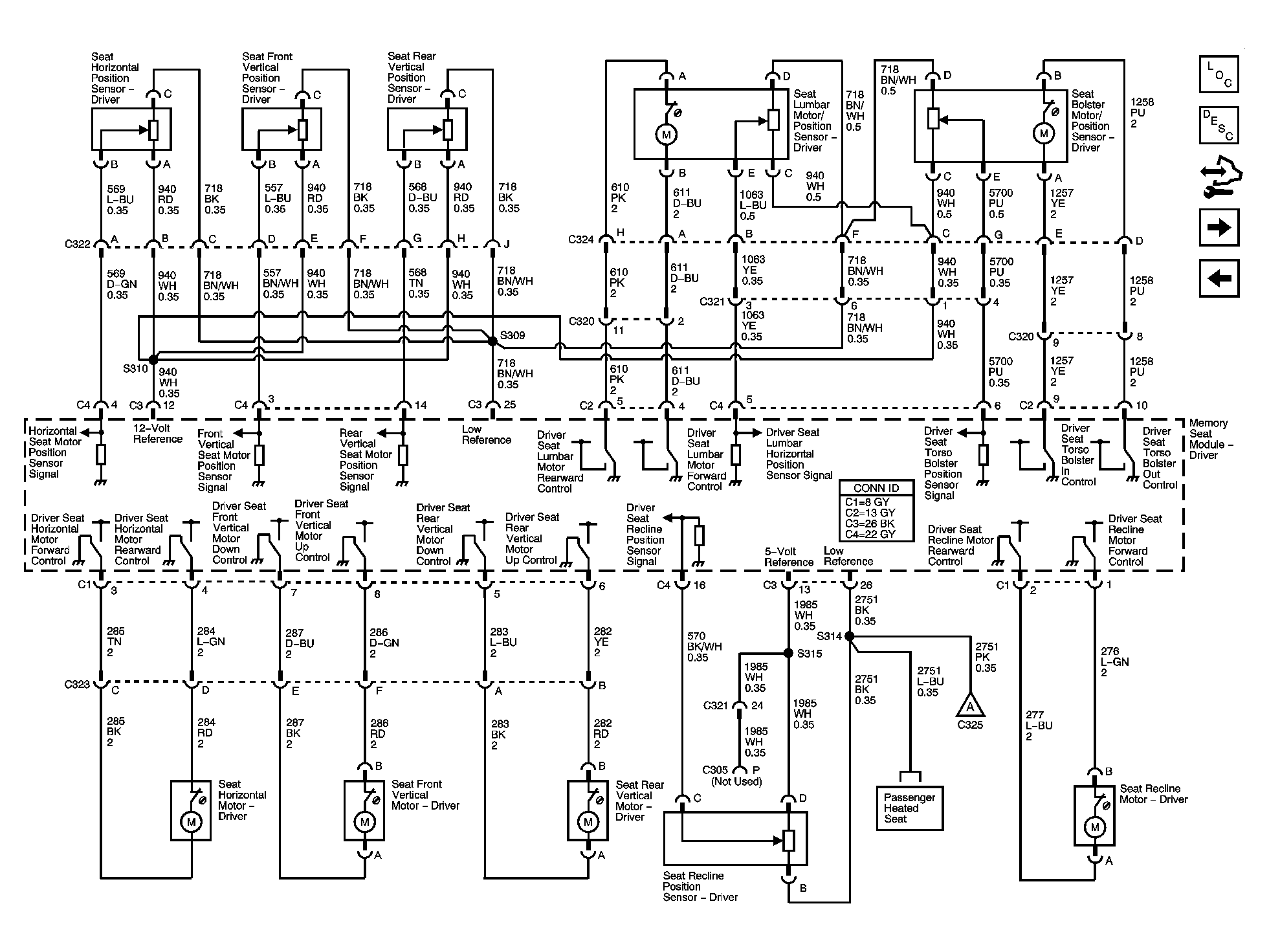

Fig 3: Seat Motors and Position Sensors
GM1570552Courtesy of GENERAL MOTORS CORP.
Fig 4: Heated Seat Controls (AN3)
GM1570553Courtesy of GENERAL MOTORS CORP.
