Radio/Audio System Schematics (Steering Wheel Controls (UK3))

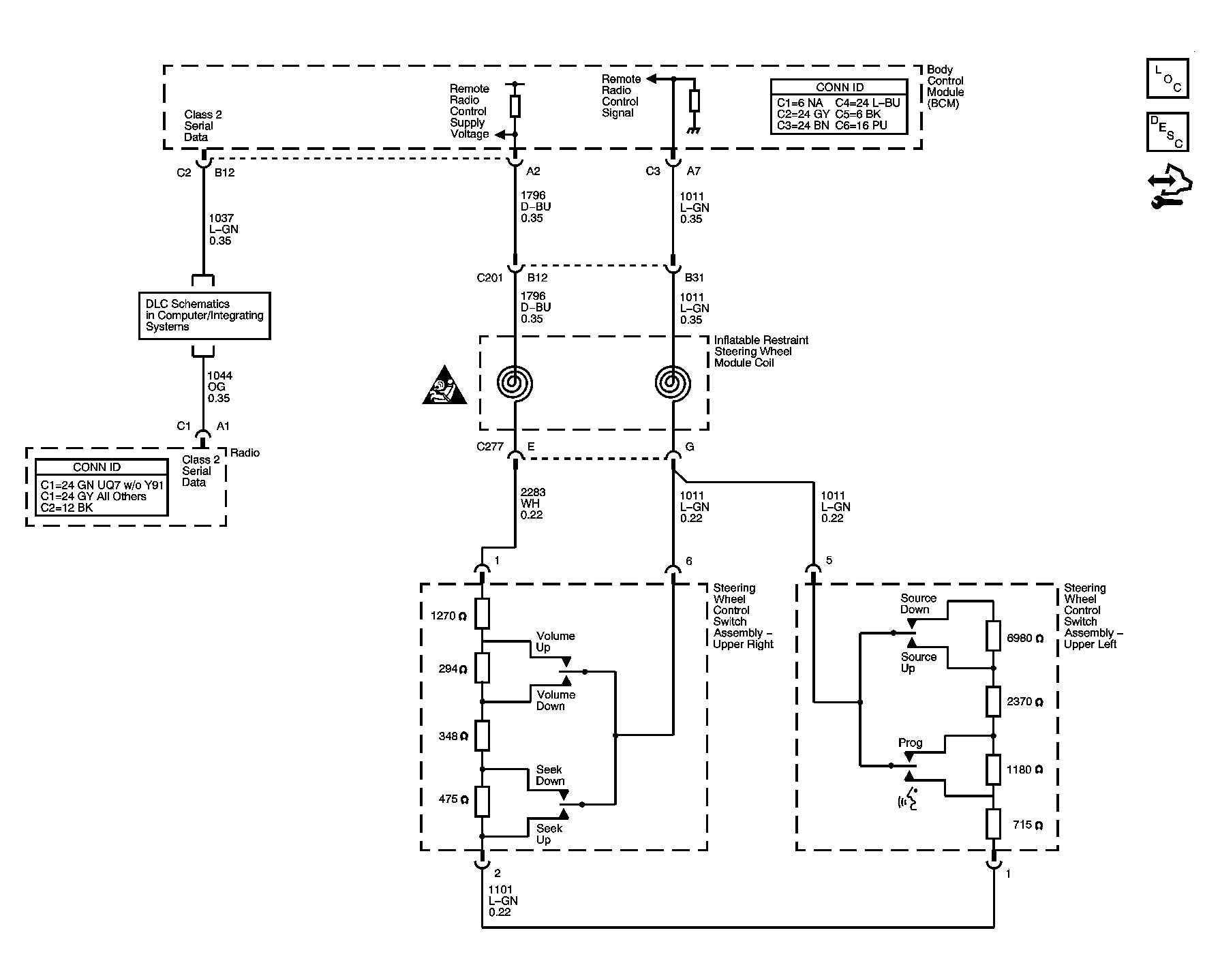

Fig 1: Steering Wheel Controls

GM1570593

Courtesy of GENERAL MOTORS CORP.
