Radio/Audio System Schematics (Base)

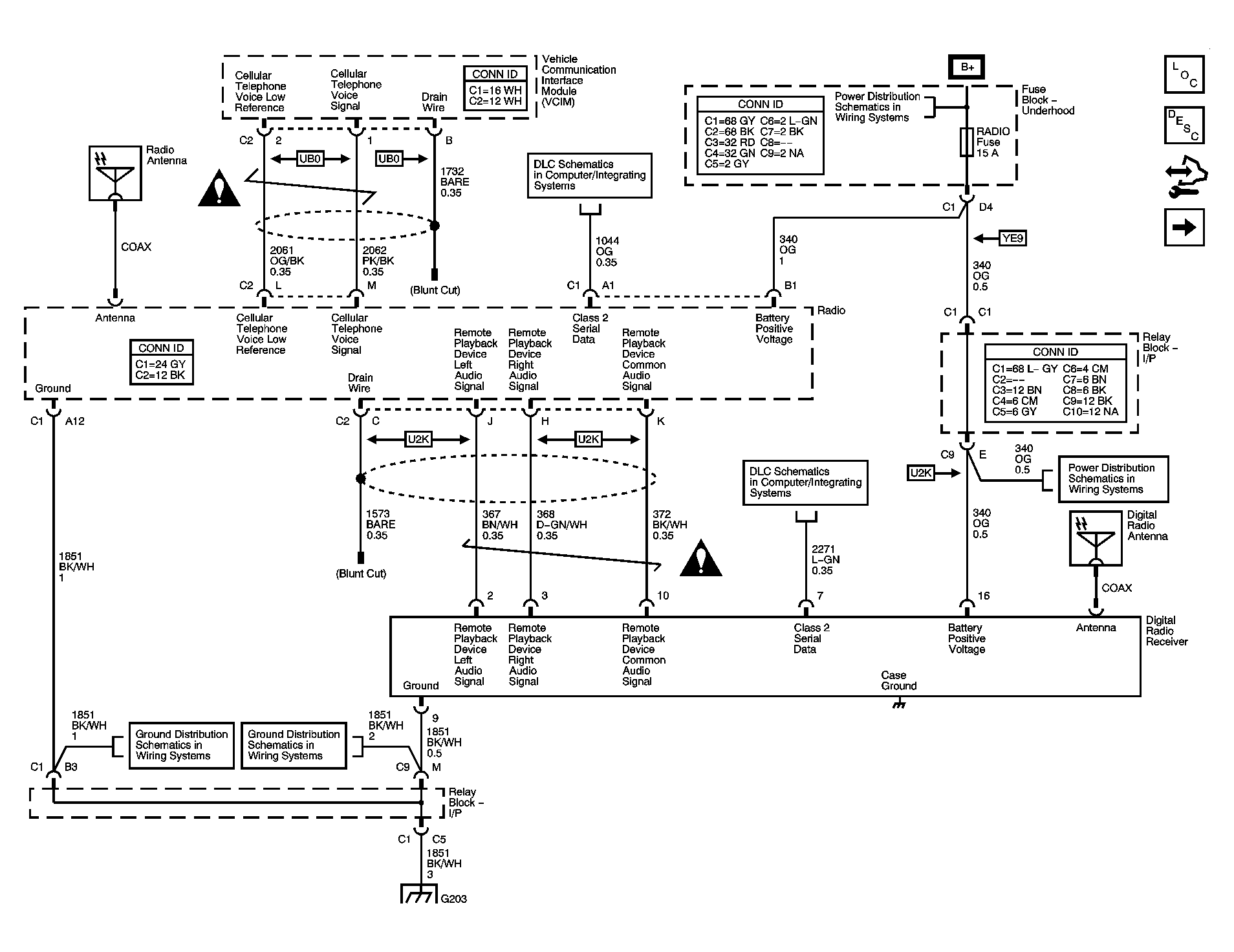

Fig 1: Power, Ground, Serial Data, and Digital Radio

GM1570594

Courtesy of GENERAL MOTORS CORP.

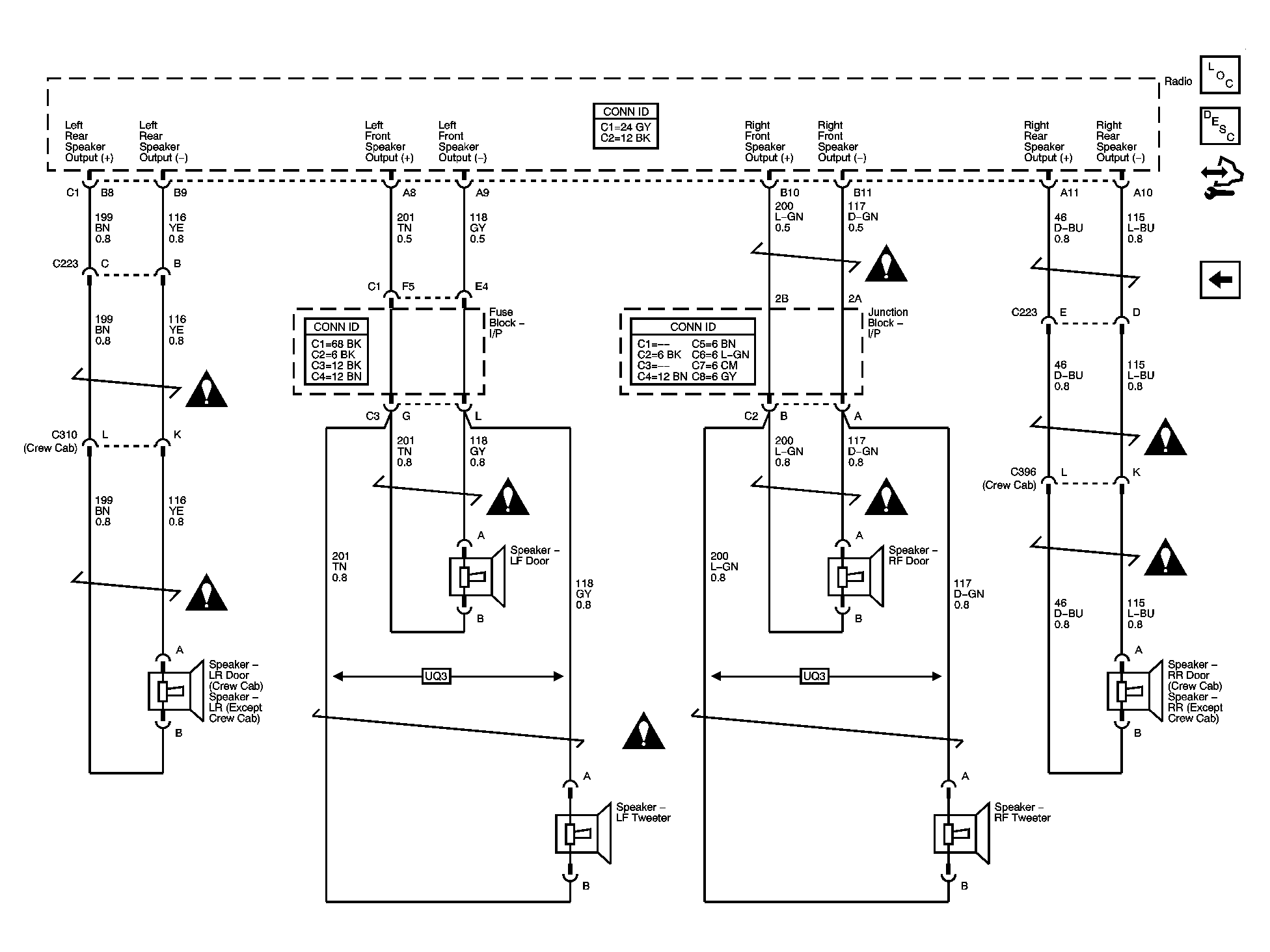

Fig 2: Speakers

GM1570596

Courtesy of GENERAL MOTORS CORP.
