Cruise Control Schematics

Fig 1: Cruise Control Schematic - 4.3L
GM1570582Courtesy of GENERAL MOTORS CORP.
Fig 2: Cruise Control Schematic - 4.8L, 5.3L, 6.0L, and 8.1L
GM1570585Courtesy of GENERAL MOTORS CORP.

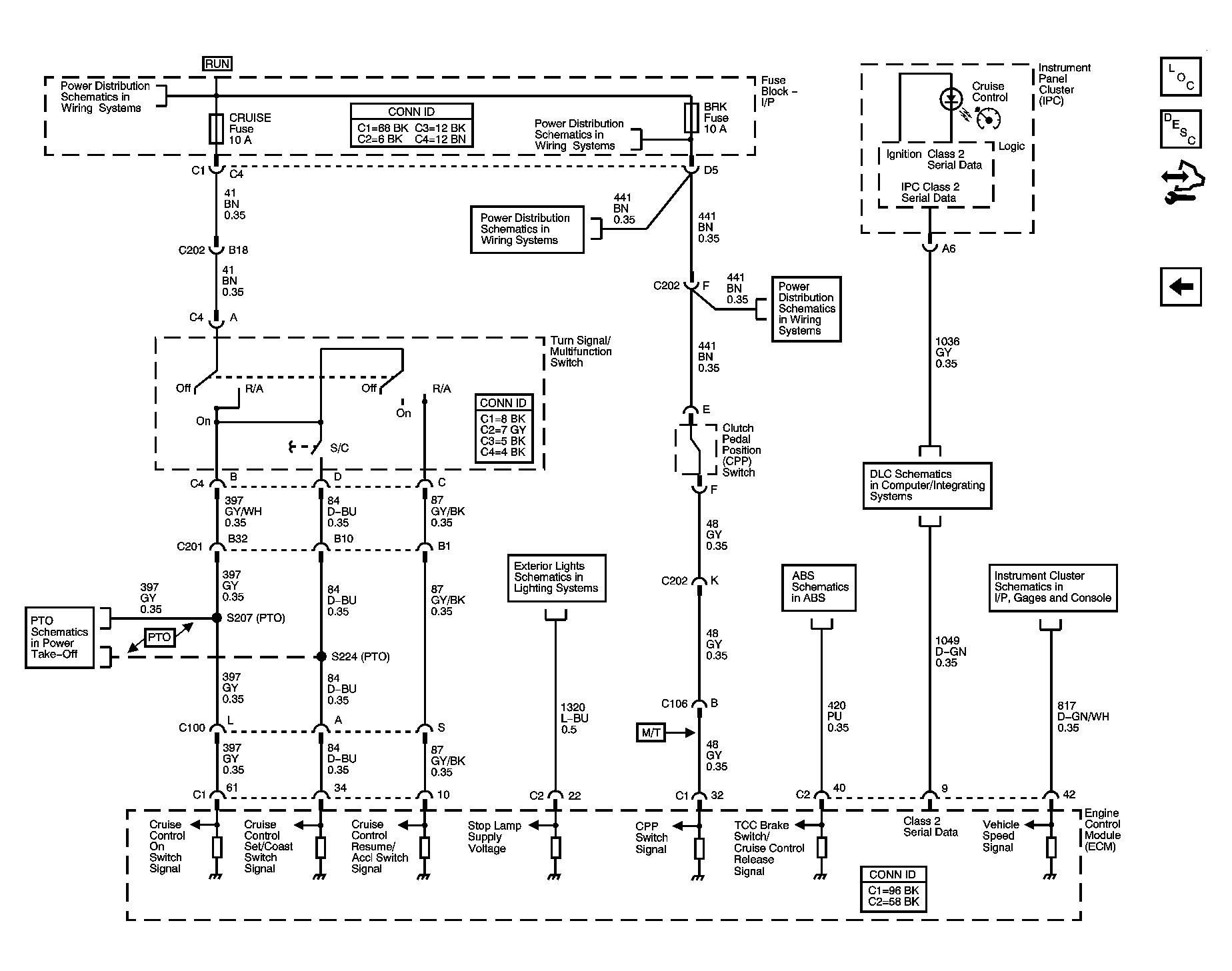

Fig 3: Cruise Control Schematic - Diesel
GM1570587Courtesy of GENERAL MOTORS CORP.
