Body Control System Wiring Schematics

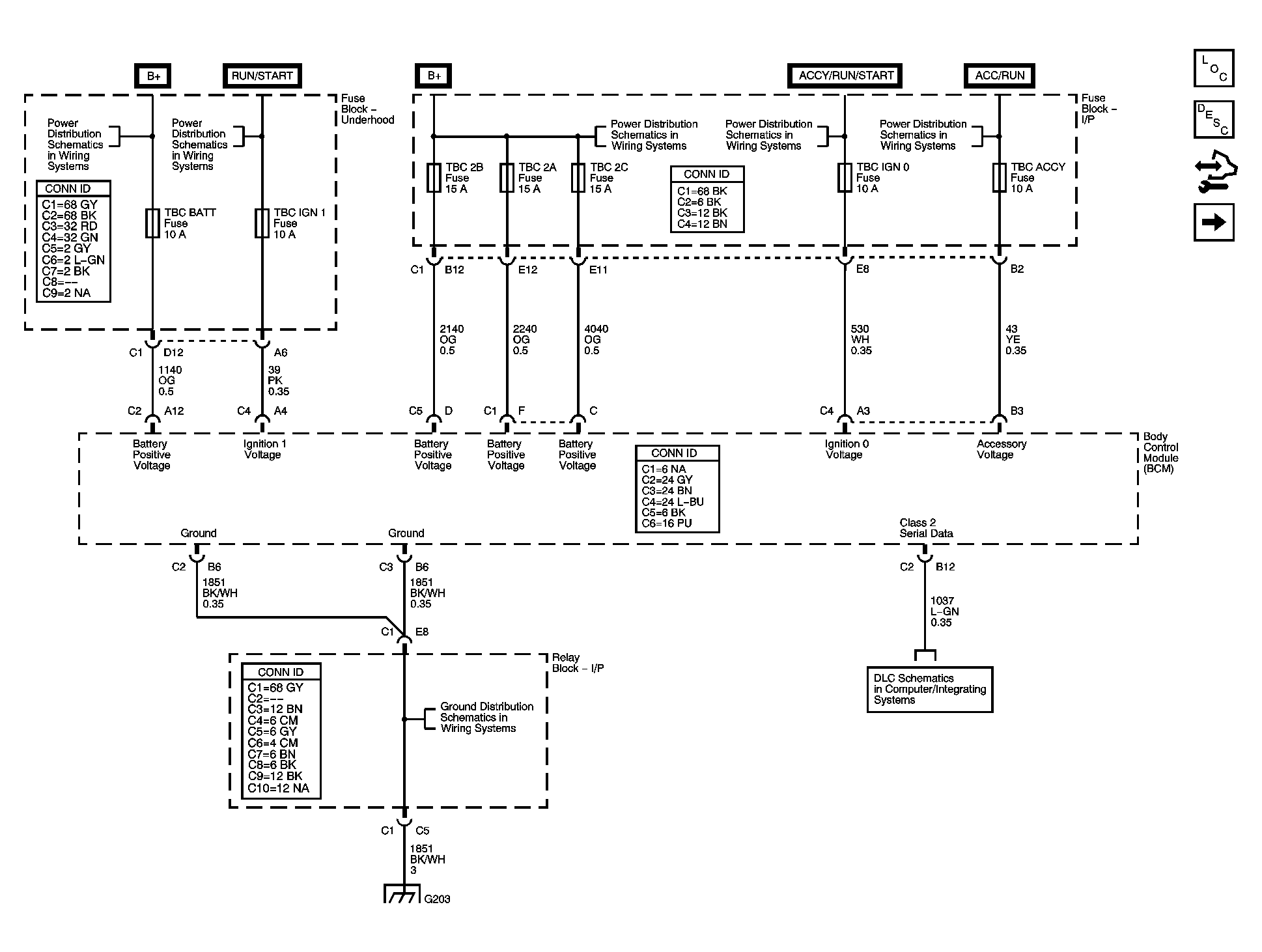

Fig 1: Power, Ground, and Serial Data

Courtesy of GENERAL MOTORS CORP.

Fig 2: Interior Lights and Interior Lights Dimming References

Courtesy of GENERAL MOTORS CORP.

Fig 3: Headlights and Exterior Lights References

Courtesy of GENERAL MOTORS CORP.

Fig 4: Controlled/Monitored Subsystem References - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 5: Controlled/Monitored Subsystem References - 2 of 2

Courtesy of GENERAL MOTORS CORP.
