Disassembled Views

WARNING: This page is about a different variant/trim than selected.

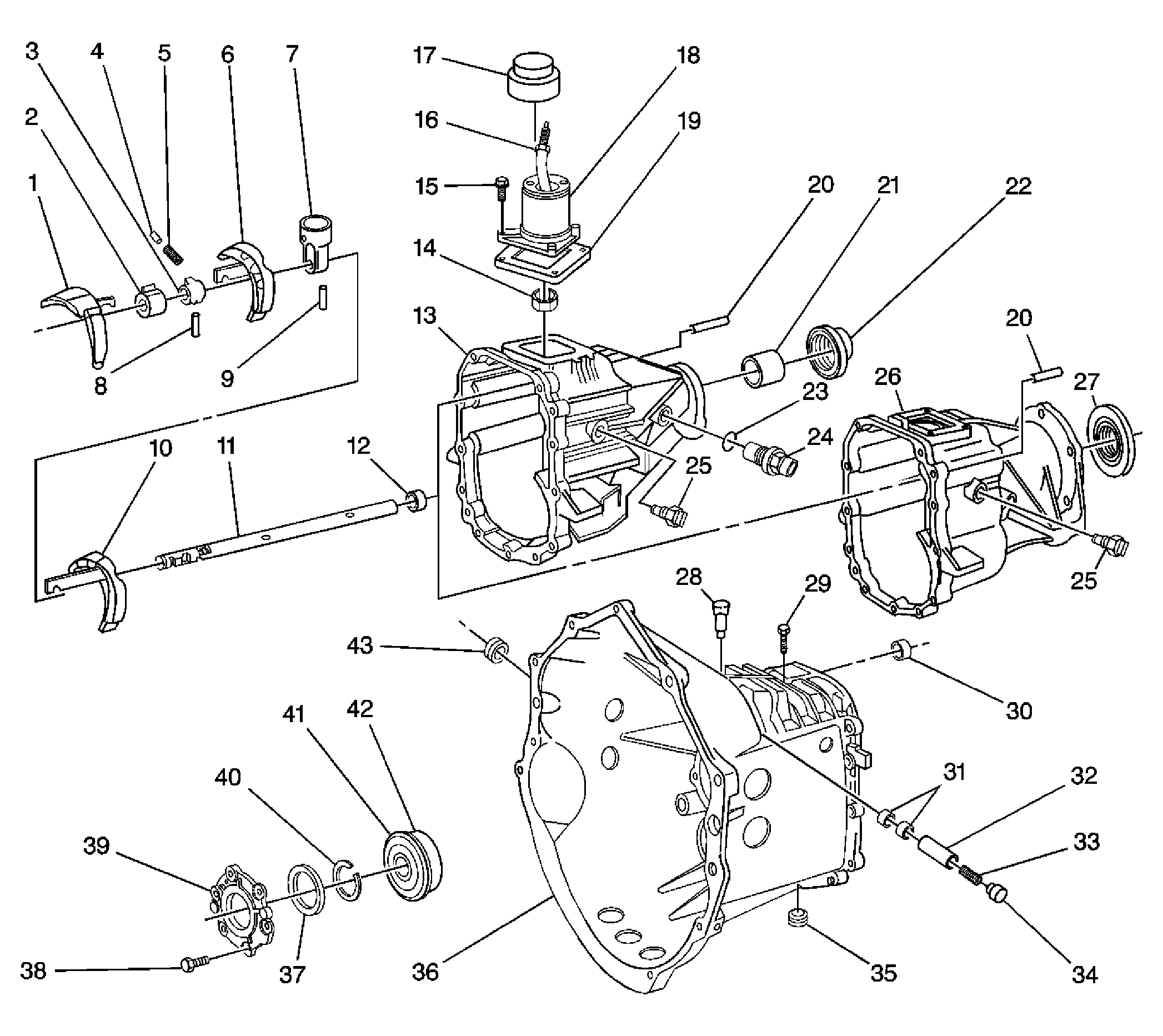

Fig 1: Exploded View Of Internal Transmission Shift Control Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 1

Callout	Component Name
1	3rd/4th Shift Fork
2	Shift Shaft Block Bushing
3	Shift Shaft Lever
4	Shift Shaft Plunger
5	Shift Shaft Spring
6	1st/2nd Shift Fork
7	Shift Shaft Socket
8	Shift Shaft Pin
9	Shift Shaft Pin
10	5th/Reverse Shift Fork
11	Shift Shaft
12	Shift Rail Bushing
13	Rear Case RWD
14	Control Lever Insulator - RWD Only
15	Shift Control Housing Bolt
16	Shift Lever Nut
17	Boot
18	Shift Lever
19	Transmission Shift Lever Seal
20	Transmission Rear Case Location Pin
20	Transmission Rear Case Location Pin
21	Transmission Case Rear Housing Bushing - RWD Only
22	Main Shaft Seal RWD
23	Vehicle Speed Sensor O-ring Seal
24	Vehicle Speed Sensor
25	Back Up Lamp Switch
25	Back Up Lamp Switch
26	Rear Case 4WD
27	Mainshaft Oil Seal - 4WD
28	Vent
29	Shift Shaft Detent Pin
30	Shift Rail Bushing
31	Shift Shaft Detent Bushing
32	Shift Shaft Detent Plunger
33	Shift Shaft Detent Spring
34	Shift Shaft Detent Plug
35	Transmission Oil Drain Plug
36	Clutch Housing
37	Input Shaft Seal
38	Input Shaft Bearing Retainer Bolt
39	Input Shaft Bearing Retainer
40	Input Shaft Retaining Ring
41	Input Shaft Bearing Retaining Ring
42	Input Shaft Bearing
43	Transmission Oil Fill Plug

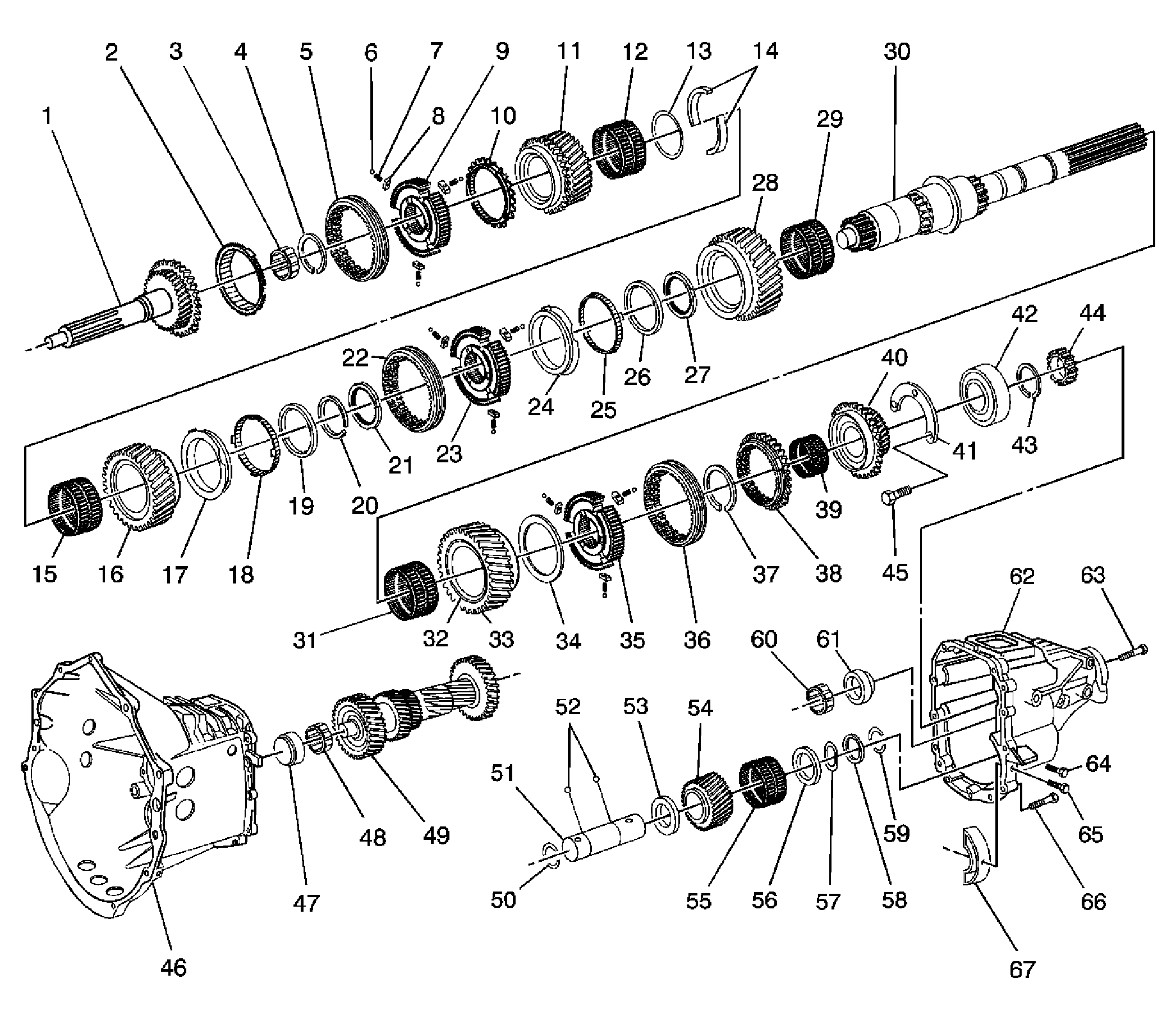

Fig 2: Exploded View Of Transmission Gear Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 2

Callout	Component Name
1	Input Shaft
2	4th Speed Gear Synchronizer Blocking Ring
3	Main Shaft Front Bearing
4	3rd/4th Speed Gear Synchronizer Retaining Ring
5	3rd/4th Speed Synchronizer Sleeve
6	Synchronizer Ball
7	Synchronizer Spring
8	Synchronizer Insert
9	3rd/4th Synchronizer Hub
10	3rd Speed Gear Synchronizer Blocking Ring
11	3rd Speed Gear
12	3rd Speed Gear Bearing
13	2nd Speed Gear Thrust Washer Retaining Ring
14	2nd Speed Gear Thrust Washer
15	2nd Speed Gear Bearing
16	2nd Speed Gear
17	2nd Speed Gear Synchronizer Blocking Ring
18	2nd Speed Gear Synchronizer Inner Blocking Ring
19	2nd Speed Gear Synchronizer Middle Blocking Ring
20	1st/2nd Hub Retaining Ring
21	1st/2nd Speed Gear Synchronizer Interim Ring
22	1st/2nd Speed Gear Synchronizer Sleeve
23	1st/2nd Speed Gear Synchronizer Hub
24	1st Speed Gear Synchronizer Blocking Ring
25	1st Speed Gear Synchronizer Middle Blocking Ring
26	1st Speed Gear Synchronizer Inner Blocking Ring
27	1st Speed Gear Interim Blocking Ring Retainer
28	1st Speed Gear
29	1st Speed Gear Bearing
30	Main Shaft
31	Reverse Speed Gear Bearing
32	Reverse Speed Gear Seal
33	Reverse Speed Gear
34	5th Speed Gear Synchronizer Hub Retaining Ring
35	5th Speed Gear Synchronizer Hub
36	5th Speed Gear Synchronizer Sleeve
37	5th Speed Gear Synchronizer Retaining Ring
38	5th Speed Gear Synchronizer Blocking Ring
39	5th Speed Gear Bearing
40	5th Speed Gear
41	Main Shaft Bearing Retainer
42	Main Shaft Rear Bearing
43	Main Shaft Rear Bearing Retaining Ring
44	Vehicle Speed Sensor Reluctor Wheel - 2WD Only
45	Main Shaft Bearing Retainer Bolt - 2WD Only
46	Clutch Housing
47	Countershaft Front Bearing Race
48	Countershaft Front Bearing
49	Countershaft
50	Reverse Idler Gear Retaining Ring
51	Reverse Idler Gear Shaft
52	Reverse Idler Gear Shaft Ball
53	Reverse Idler Gear Thrust Washer
54	Reverse Idler Gear
55	Reverse Idler Gear Bearing
56	Reverse Idler Gear Thrust Washer
57	Reverse Idler Gear Wave Washer
58	Reverse Idler Gear Washer
59	Reverse Idler Gear Retaining Ring
60	Countershaft Rear Bearing
61	Countershaft Rear Bearing Race
62	Transmission Rear Case - 2WD Shown
63	Main Shaft Bearing Retainer Bolt - 2WD Only
64	Reverse Idler Gear Shaft Short Bolt
65	Reverse Idler Gear Shaft Long Bolt
66	Transmission Case Bolt
67	Reverse Idler Gear Shaft Retainer
