Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the applique (3) to the vehicle.
  2. Install the retainer (1) into the slot in the filler panel. Press the retainer into place.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the screws (2) in order to retain the applique (3) to the upper fender filler panel.

    Tighten

    Tighten the screws (2) to 2 N.m (18 lb in).

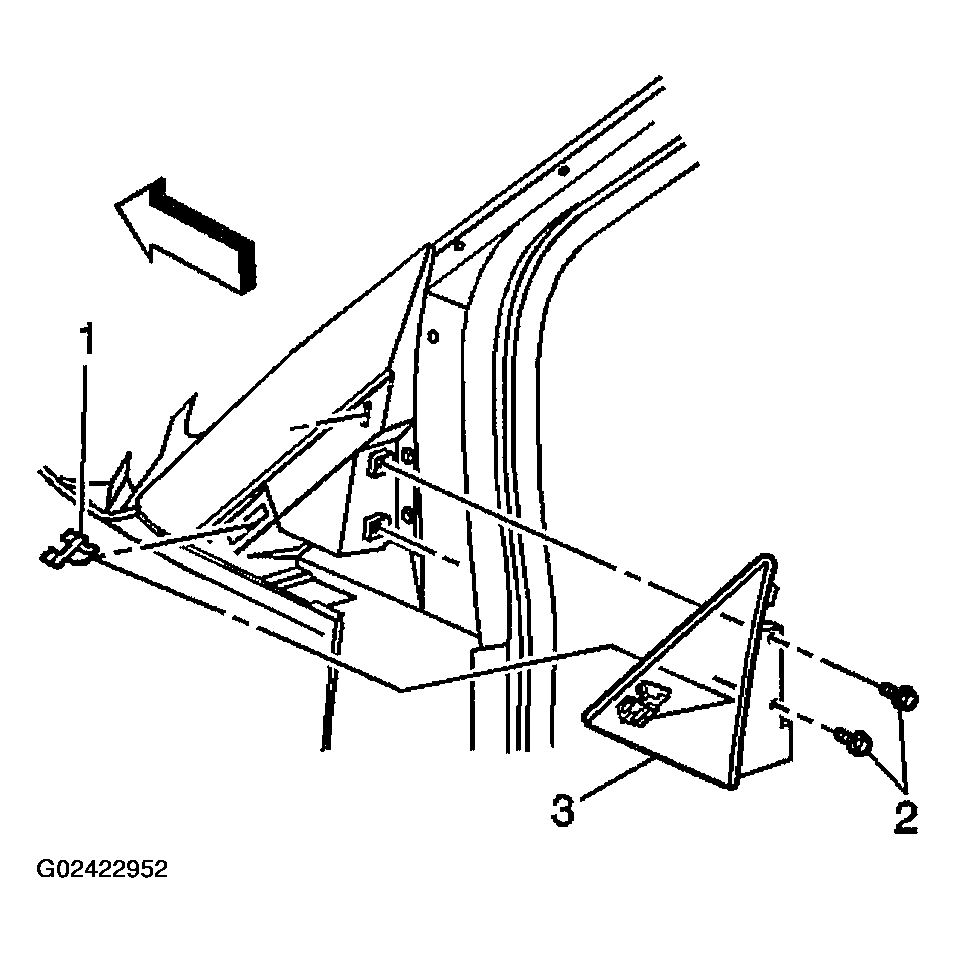

    Fig 1: Installing Upper Front Fender Filler Panel Applique
    G02422952Courtesy of GENERAL MOTORS CORP.
