Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to FASTENER NOTICE .
  1. Install the bolts that retain the front fascia mounting brackets to the bumper, if removed.

    Tighten

    Tighten the front fascia mounting bracket to bumper bolts to 2 N.m (18 lb in).

  2. Install the front fascia support (2) to the bumper, if removed. Tap down on the support with a rubber mallet, in order to install the tabs into the bumper.
  3. Install the push pin retainers (1) to the top of the front fascia.
  4. Install the bolts that retain the front fascia (4) to the mounting bracket (3).

    Tighten

    Tighten the front fascia to mounting bracket bolts to 2 N.m (18 lb in).

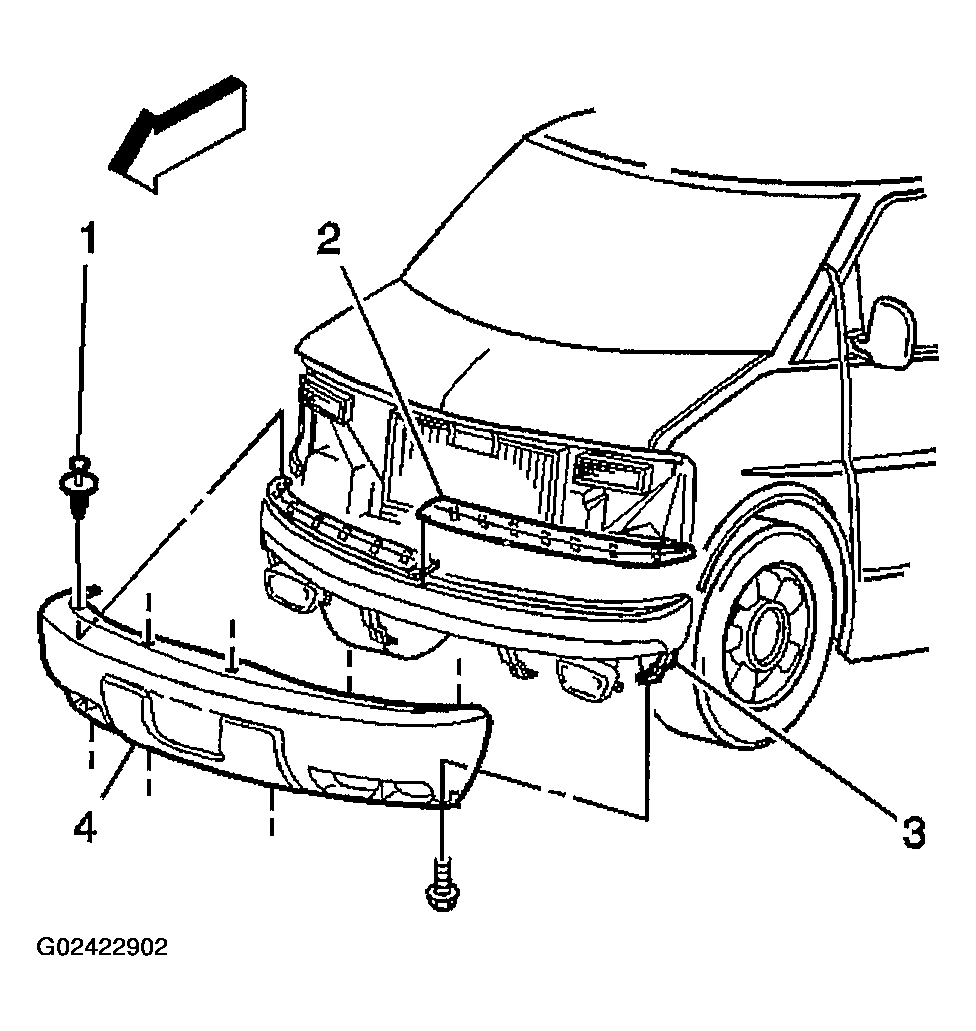

    Fig 1: Installing Front Fascia
    G02422902Courtesy of GENERAL MOTORS CORP.
  5. Install the front grille to the vehicle. Refer to GRILLE REPLACEMENT (UPLEVEL) or GRILLE REPLACEMENT (BASE) .
