Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 6. Tests for the proper operation of the circuit in the normal voltage range.

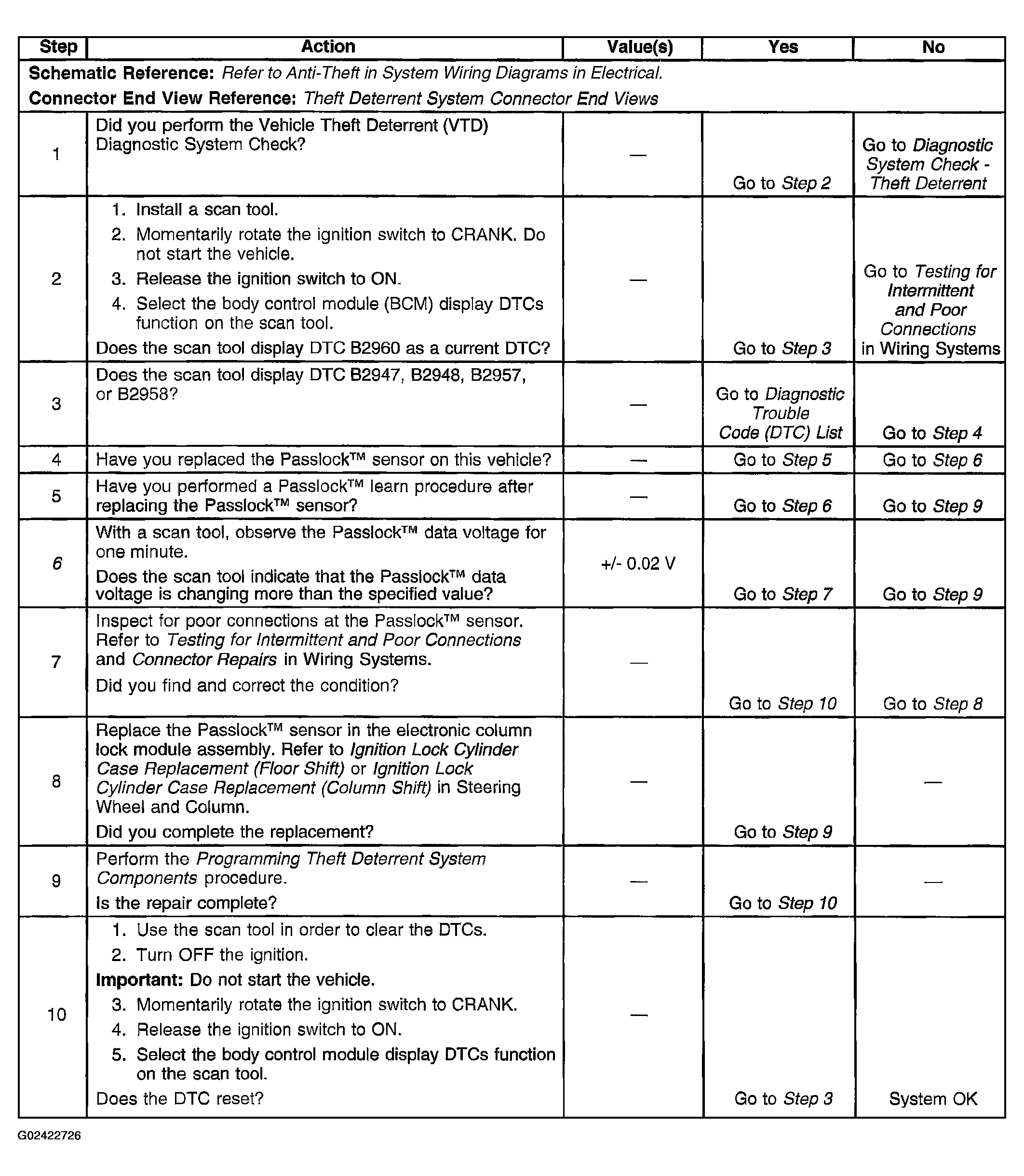

    Fig 1: Identifying DTC B2960 Diagnostic Table
    G02422726Courtesy of GENERAL MOTORS CORP.
