Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear passenger seats as needed. Refer to SEAT REPLACEMENT - REAR BENCH .
  2. Remove the passenger side rear corner trim panel. Refer to Trim Panel Replacement - Right Rear Corner .
  3. Grasp and gently pull the passenger side body side trim panel in order to disengage the retaining clips.
  4. Remove the passenger side body side trim panel from the vehicle.
  5. Inspect the passenger side body side trim panel for broken or missing retaining clips. Replace the clips as needed.

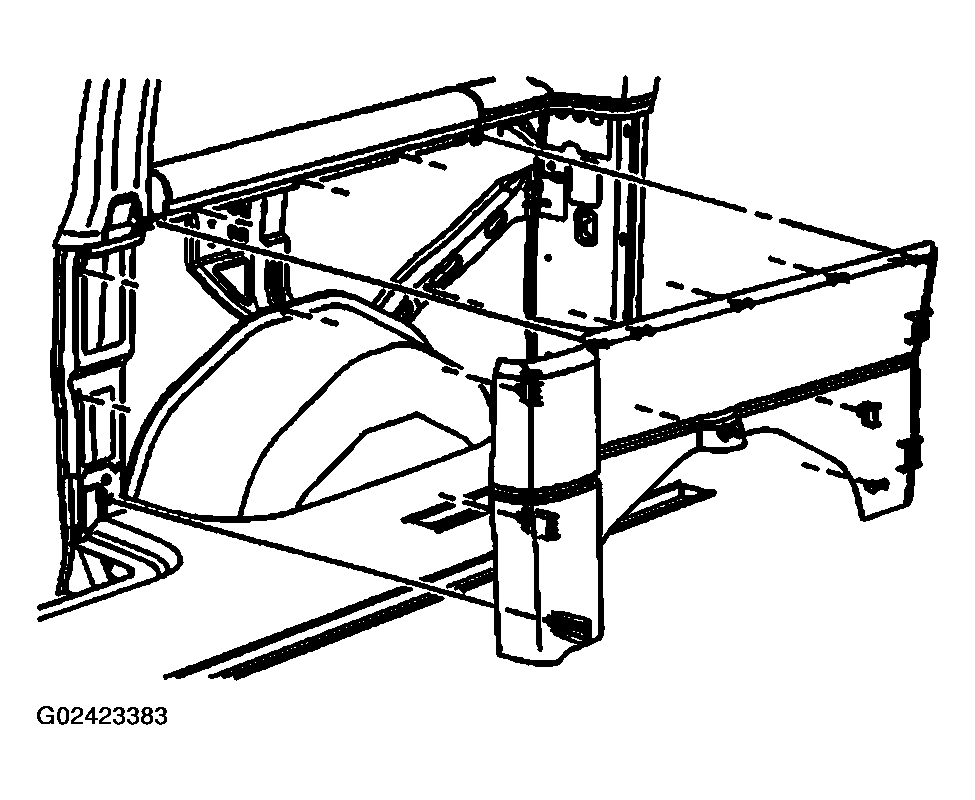

    Fig 1: Removing Right Body Side Trim Panel
    G02423383Courtesy of GENERAL MOTORS CORP.
