Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt retractor to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the seat belt retractor retaining bolt to the vehicle.

    Tighten

    Tighten the seat belt retractor retaining bolt to 52 N.m (38 lb ft).

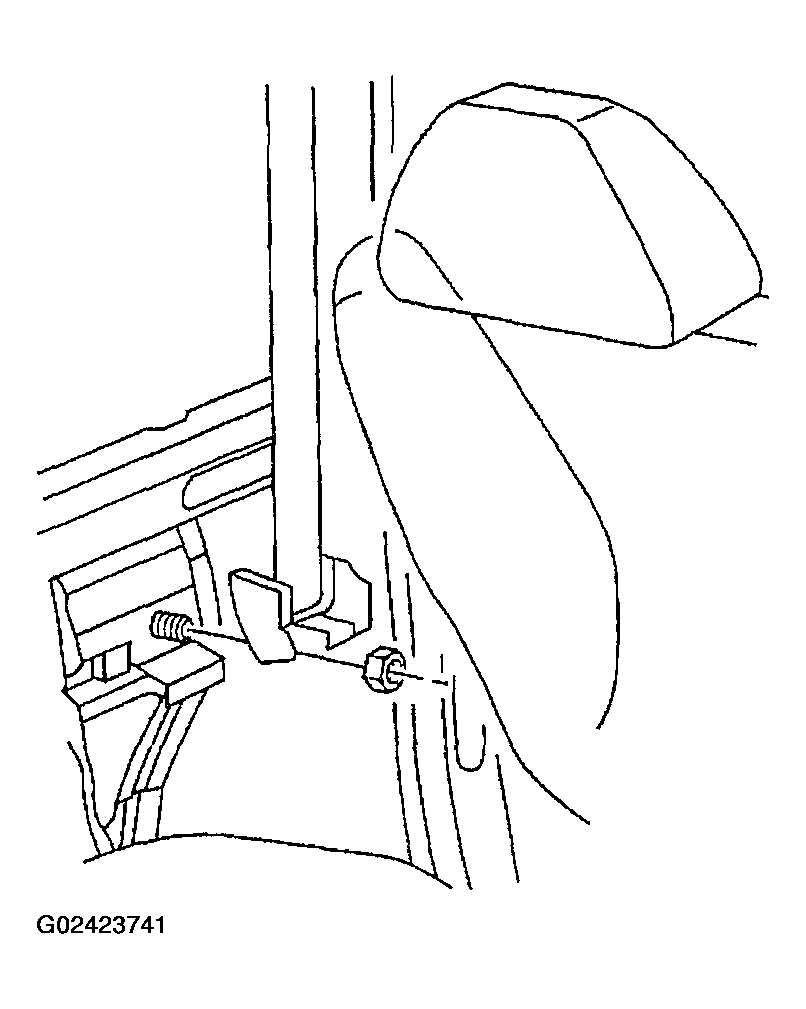

    Fig 1: Installing No. 3 Left Rear Seat Belt Retractor
    G02423741Courtesy of GENERAL MOTORS CORP.
  3. Install the seat belt guide to the vehicle.
  4. Install the seat belt guide retaining bolt to the vehicle.

    Tighten

    Tighten the seat belt guide retaining bolt to 52 N.m (38 lb ft).

  5. Install the body side trim panel. Refer to TRIM PANEL REPLACEMENT - LEFT BODY SIDE .

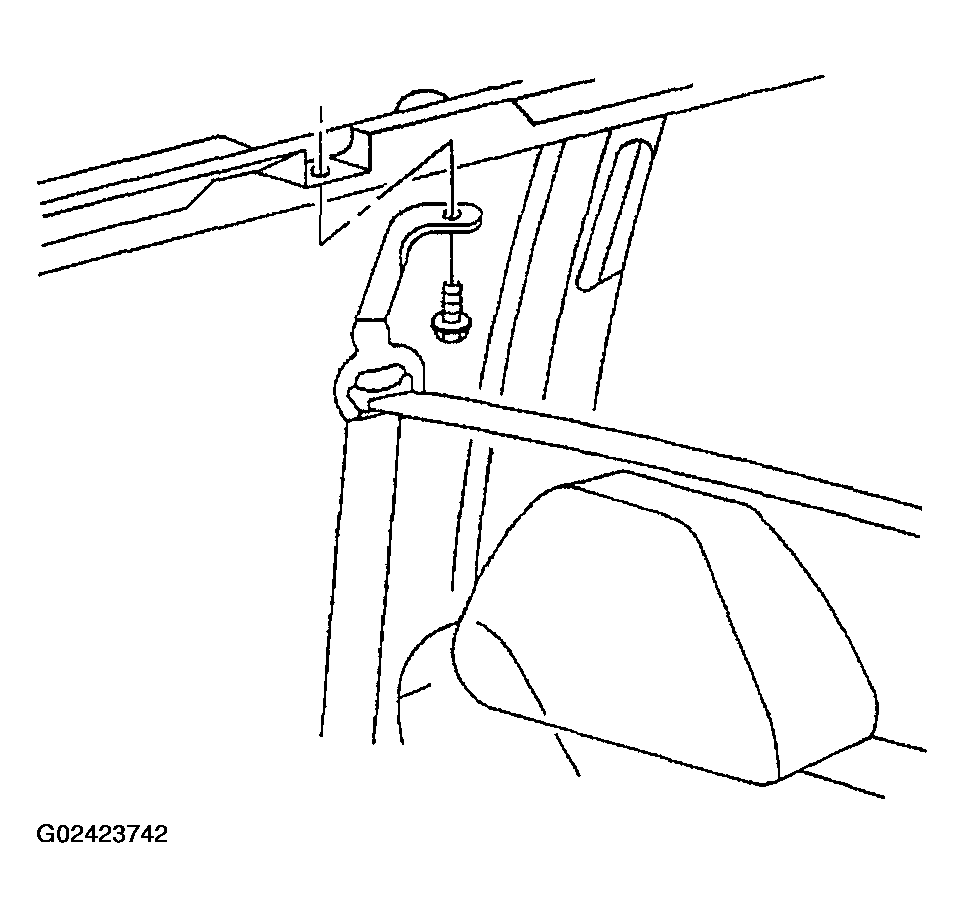

    Fig 2: Installing Seat Belt Guide
    G02423742Courtesy of GENERAL MOTORS CORP.
  6. Install the seat belt upper trim cover retainers (2).
  7. Install the seat belt upper trim cover (1)
    Fig 3: Installing Seat Belt Upper Trim Cover Retainers & Cover
    G02423743Courtesy of GENERAL MOTORS CORP.
