Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a flat bladed tool, remove the shoulder/seat belt guide adjuster cover (1).

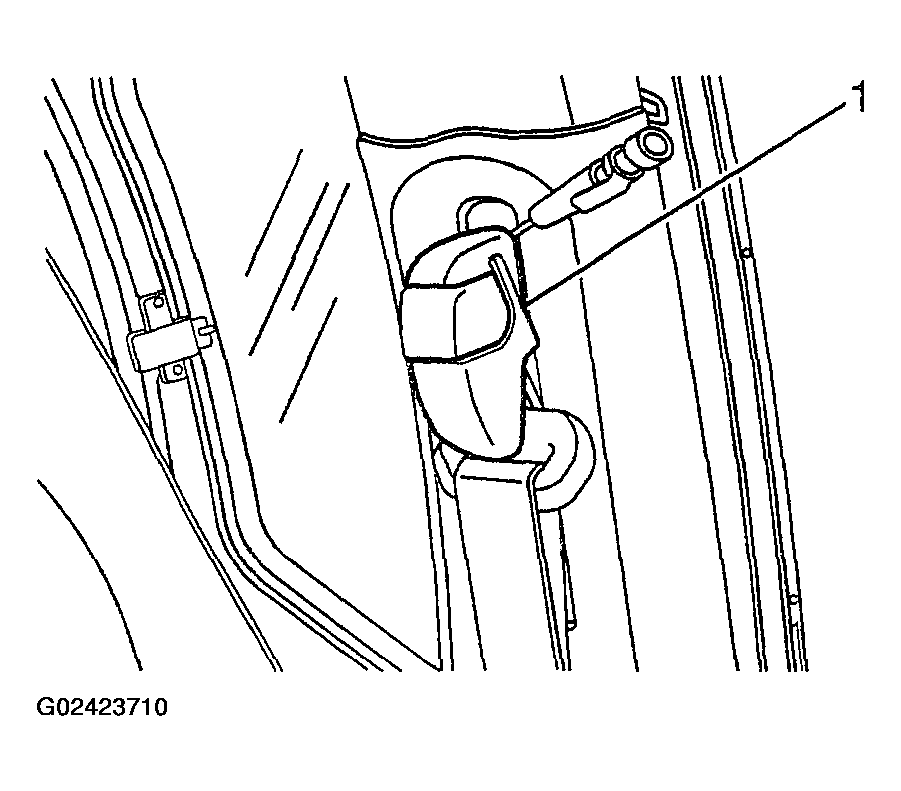

    Fig 1: Removing Shoulder/Seat Belt Guide Adjuster Cover
    G02423710Courtesy of GENERAL MOTORS CORP.
  2. Remove the shoulder/seat belt guide retaining bolt from the shoulder belt guide adjuster.
  3. Remove the shoulder/seat belt guide from the shoulder belt guide adjuster.
  4. Remove the front door upper pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR .
    Fig 2: Removing Shoulder/Seat Belt Guide From Shoulder Belt Guide Adjuster
    G02423711Courtesy of GENERAL MOTORS CORP.
  5. Remove the front door lower pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LOWER PILLAR .
  6. Disengage the front seat belt retractor guide (4) from the pillar.
  7. Remove the shoulder/seat belt retractor bolt (2) from the lower pillar.
  8. Remove the shoulder/seat belt retractor (1) assembly from the vehicle.

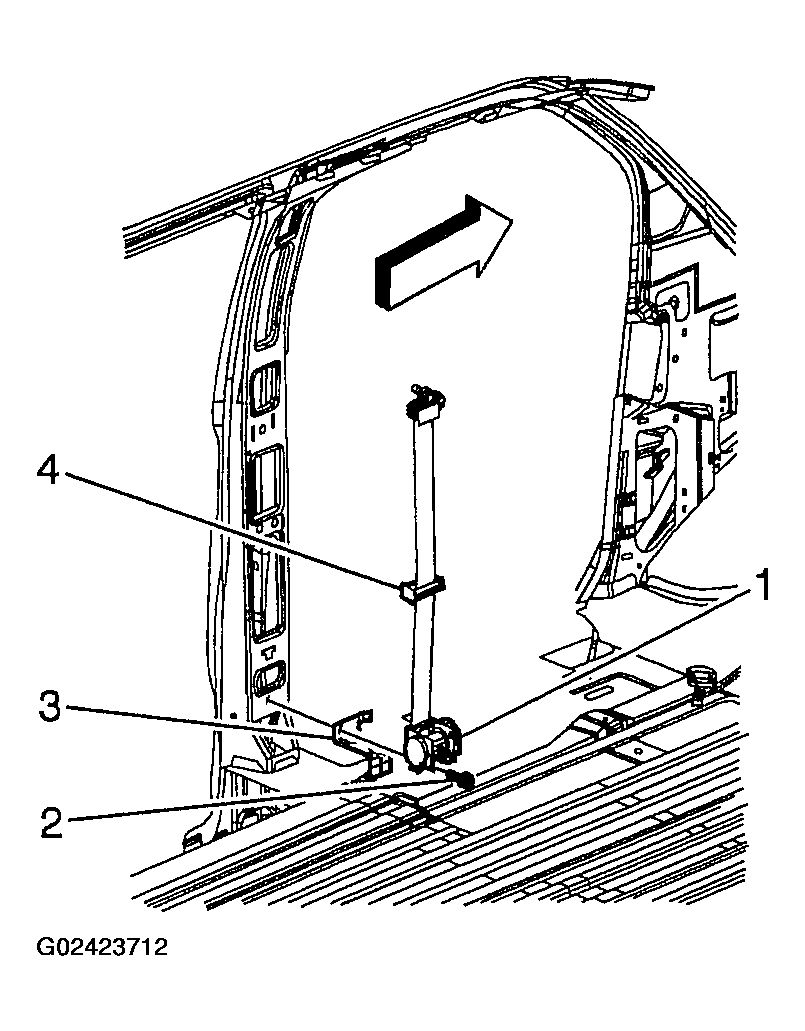

    9. Fig 3: Removing Front Shoulder/Seat Belt Retractor Assembly
    G02423712Courtesy of GENERAL MOTORS CORP.
