Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shoulder/seat belt retractor assembly to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the shoulder/seat belt retractor retaining bolt to the lower pillar.

    Tighten

    Tighten the shoulder/seat belt retractor retaining bolt to 52 N.m (38 lb ft).

  3. Install the front door lower pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LOWER PILLAR .
  4. Install the front door upper pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR .

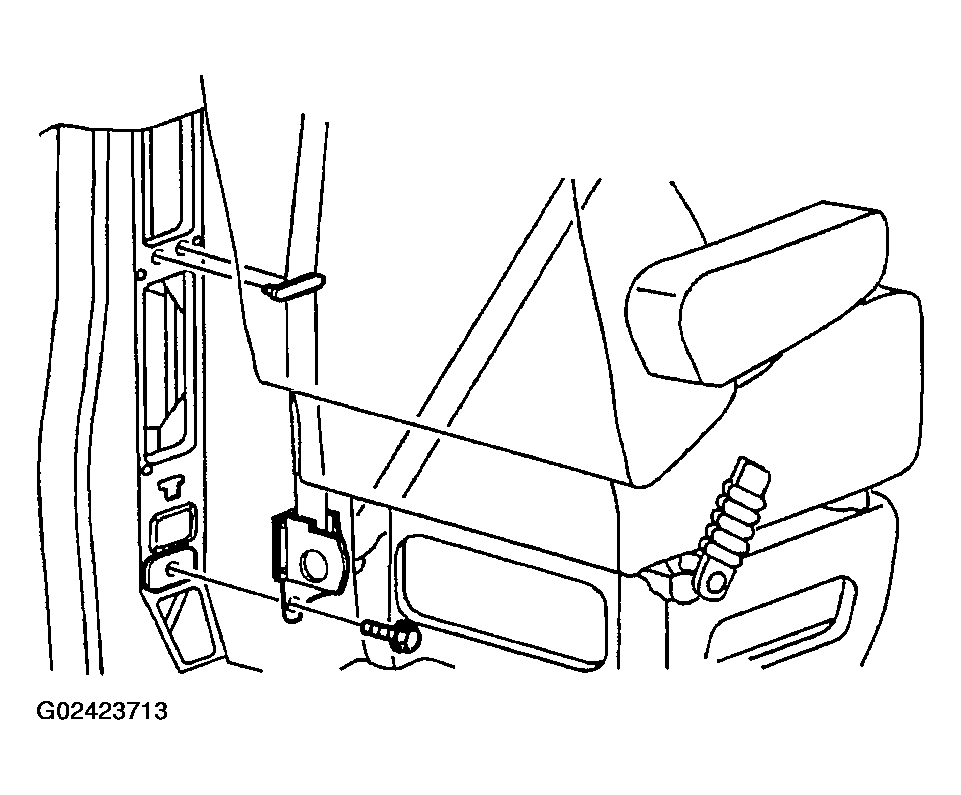

    Fig 1: Installing Front Shoulder/Seat Belt Retractor Assembly
    G02423713Courtesy of GENERAL MOTORS CORP.
  5. Install the shoulder/seat belt guide to the shoulder belt guide adjuster.
  6. Install the upper shoulder/seat belt guide retaining bolt to the vehicle.

    Tighten

    Tighten the upper shoulder/seat belt guide retaining bolt to 10 N.m (89 lb in).

    Fig 2: Installing Shoulder/Seat Belt Guide To Shoulder Belt Guide Adjuster
    G02423714Courtesy of GENERAL MOTORS CORP.
  7. Install the shoulder/seat belt guide to the guide adjuster cover (1).

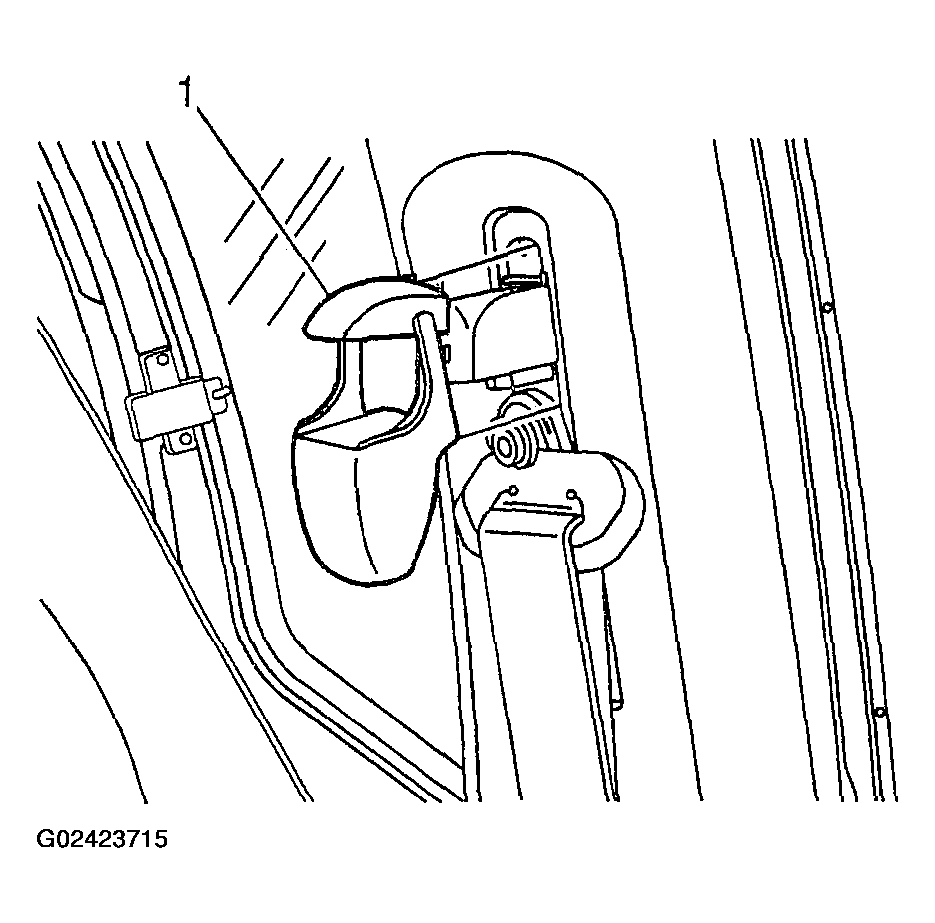

    Fig 3: Installing Shoulder/Seat Belt Guide To Guide Adjuster Cover
    G02423715Courtesy of GENERAL MOTORS CORP.
