Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt / buckle to the seat frame.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the seat belt / buckle retaining bolt to the seat frame.

    Tighten

    Tighten the seat belt / buckle retaining bolt to 52 N.m (38 lb ft).

  3. Install the seat cushion cover to the seat frame.

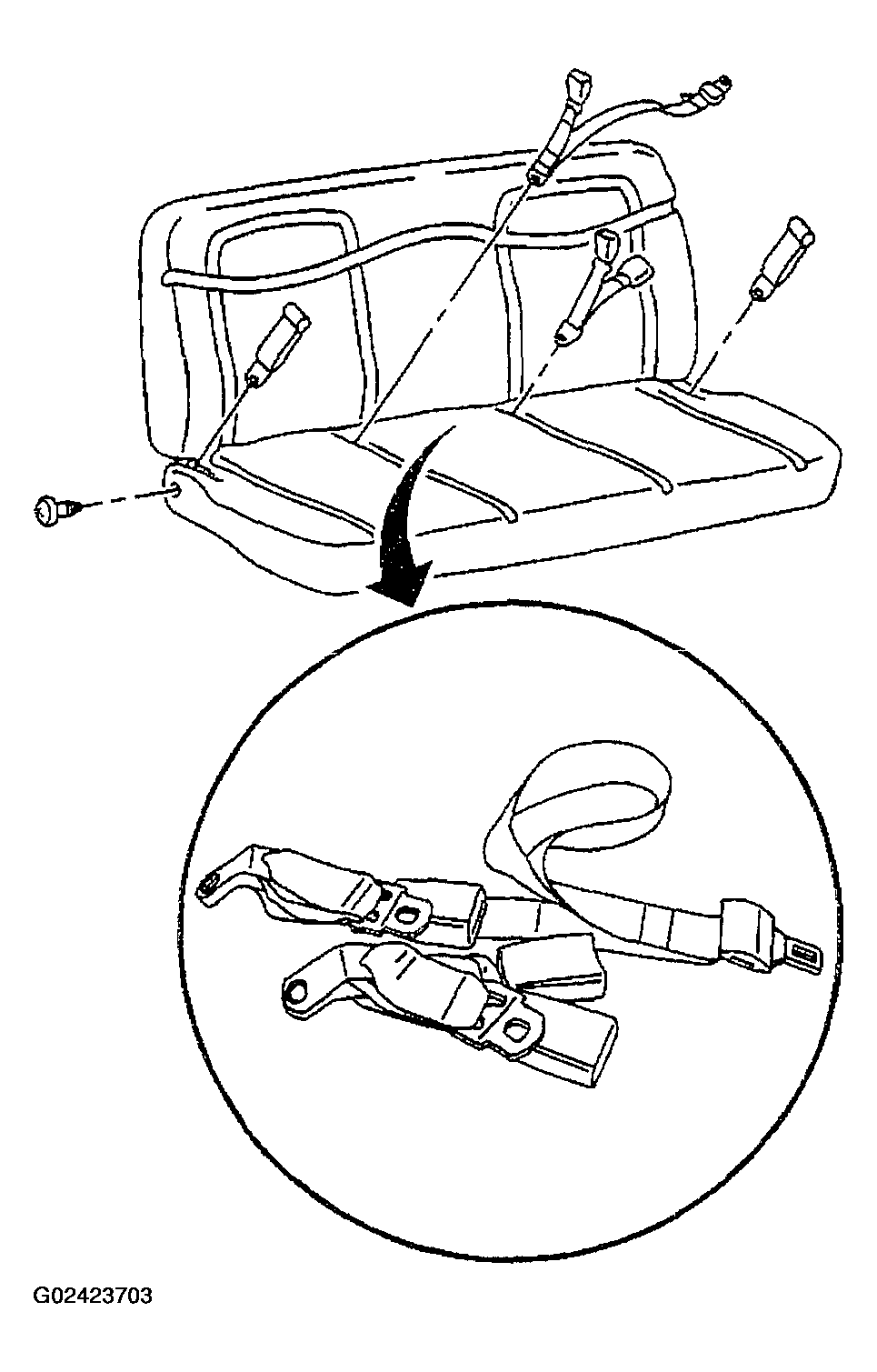

    Fig 1: Installing Center Rear Seat Belt
    G02423703Courtesy of GENERAL MOTORS CORP.
