Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding side door lower trim panel. Refer to Trim Panel Replacement - Sliding Door .
  2. Disconnect the electrical connector (5) from the sliding side door lock (1).
  3. Remove the wiring harness retainers (2) from the sliding side door.
  4. Remove the rivets (4), that retain the electrical contacts to the sliding side door, using an appropriate drill and drill bit.
  5. Remove the wiring harness (3) from the sliding side door.

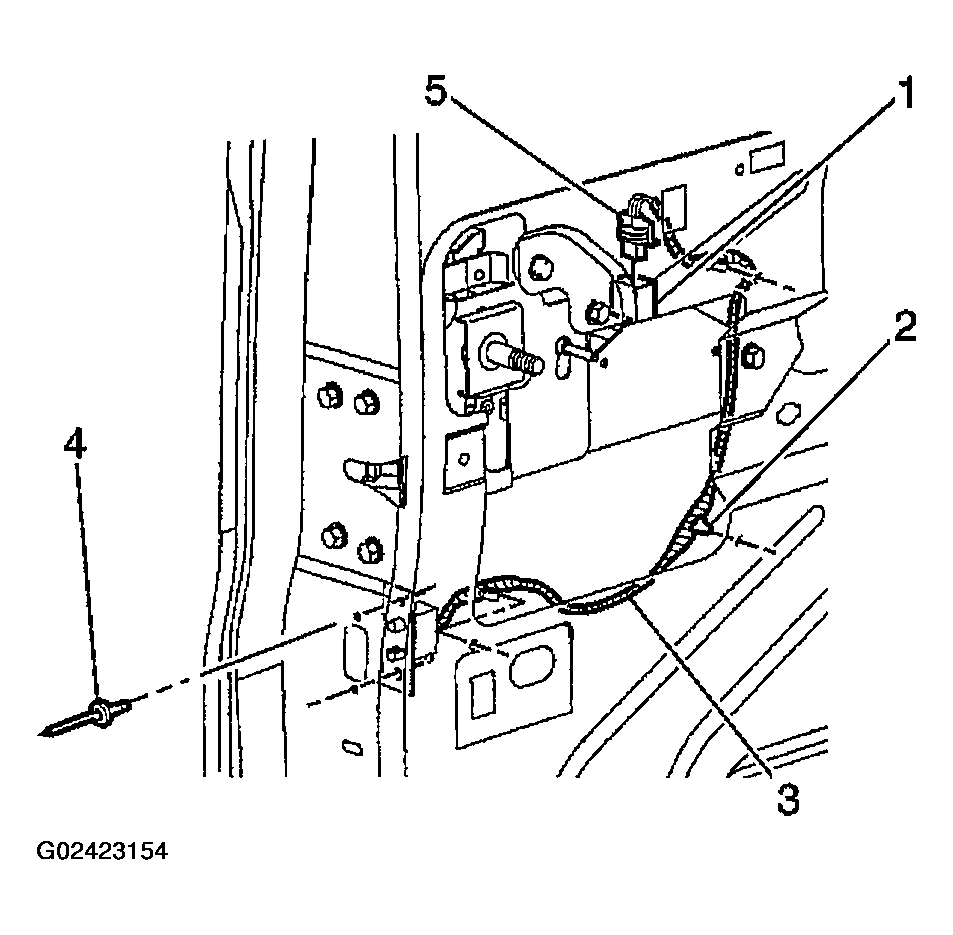

    Fig 1: Removing Sliding Door Wiring Harness
    G02423154Courtesy of GENERAL MOTORS CORP.
