Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hinge pillar upper garnish. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR .
  2. Remove the hinge pillar lower garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- LOWER PILLAR .
  3. Remove the passenger side front corner garnish molding. Refer to GARNISH MOLDING REPLACEMENT - RIGHT SIDE FRONT .
  4. Remove the passenger side body side trim panel. Refer to TRIM PANEL REPLACEMENT - RIGHT BODY SIDE .
  5. Remove the side door stepwell mat. Refer to MAT REPLACEMENT - STEPWELL .
  6. Remove the retainers at the lower corners of the side door opening weatherstrip.

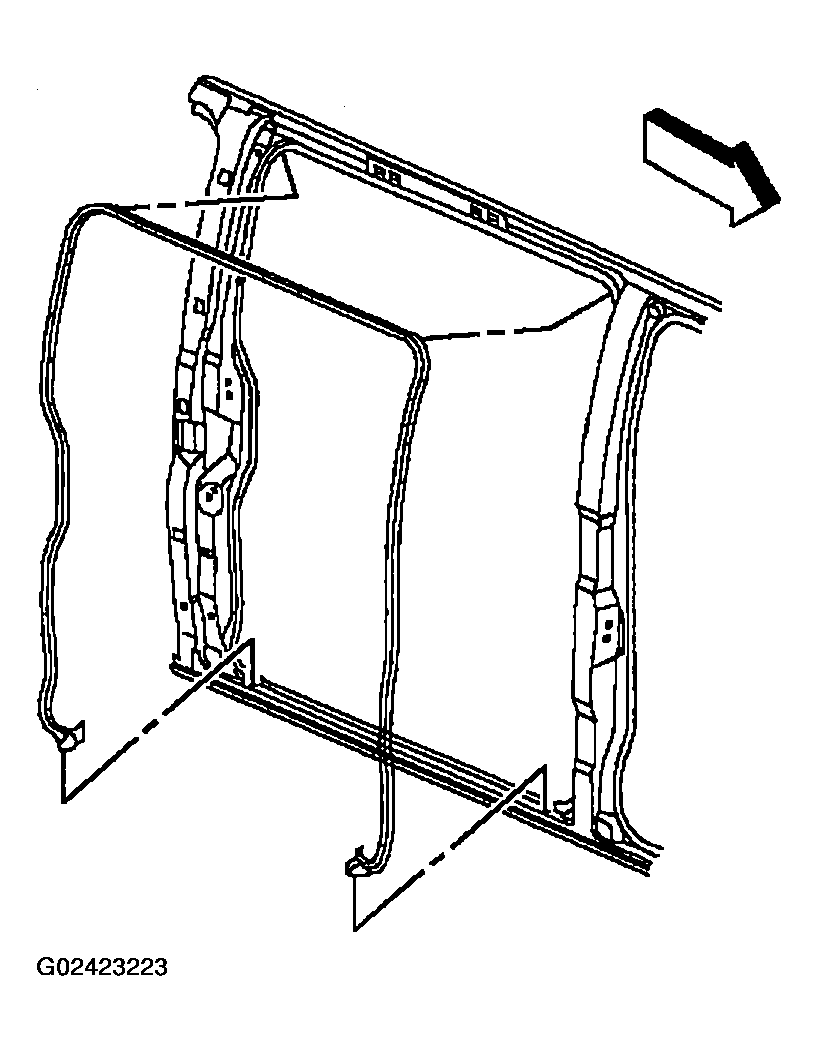

    7. Fig 1: Removing Side Door Opening Weatherstrip Retainers
    G02423223Courtesy of GENERAL MOTORS CORP.
  7. Pull the side door opening weatherstrip from the door opening pinch-weld flange.

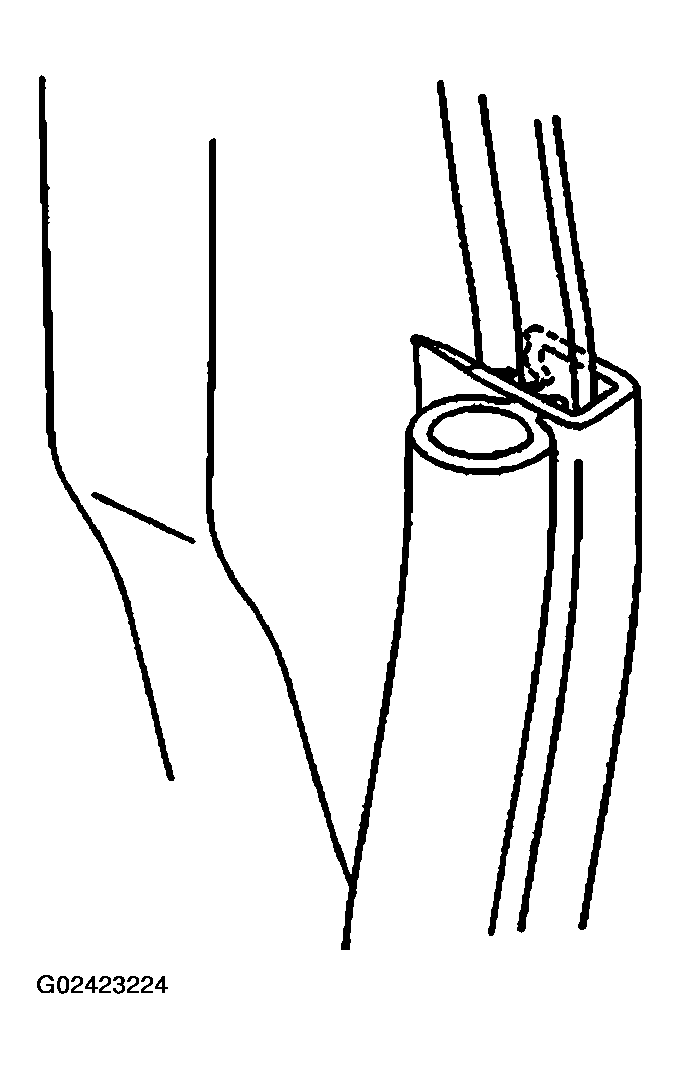

    Fig 2: Pulling Side Door Opening Weatherstrip From Pinch-Weld Flange
    G02423224Courtesy of GENERAL MOTORS CORP.
  8. Remove the side door opening weatherstrip from the vehicle.

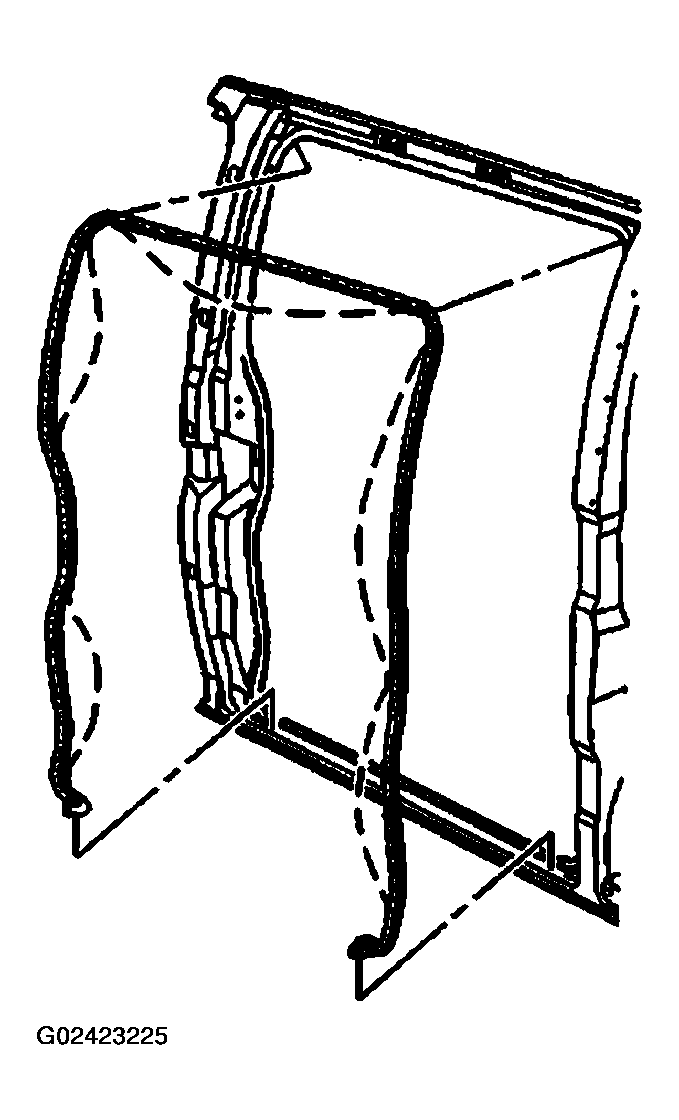

    Fig 3: Removing Side Door Opening Weatherstrip
    G02423225Courtesy of GENERAL MOTORS CORP.
