Home >> GMC >> 2006 >> Sierra 1500 HD, 4WD >> Repair and Diagnosis >> External Pages >> Different car >> Section 245 (Instrument Panel, Gages, And Console) >> Repair Instructions >> Trim Pad Replacement - Instrument Panel (I/P) Upper >> Removal Procedure

Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left and right windshield garnish moldings. Refer to WINDSHIELD GARNISH MOLDING REPLACEMENT .
  2. Remove the instrument panel (I/P) cluster trim plate bezel. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster .
  3. Remove the screws (1, 3) from the I/P upper trim pad (2).
  4. Lift the I/P upper trim pad (2) on an angle and slide rearward in order to disengage the retainers at front of I/P.
  5. Remove the I/P upper trim pad (2) from the vehicle.

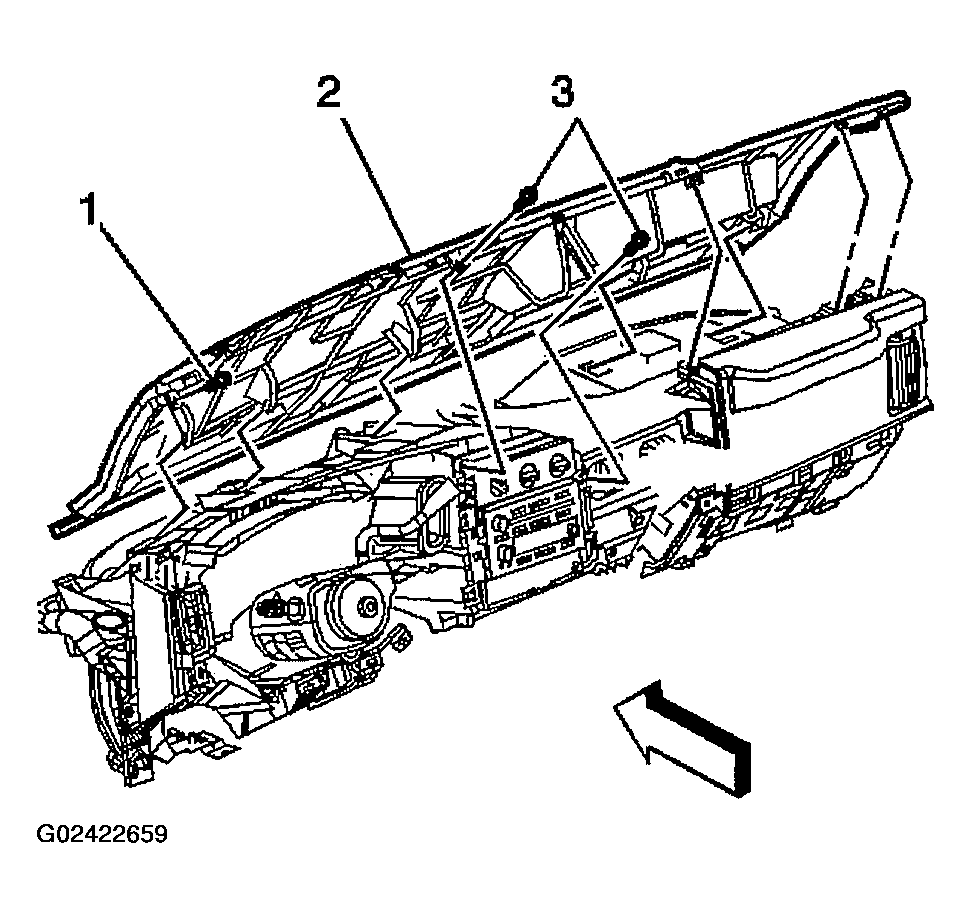

Fig 1: Removing I/P Upper Trim Pad
G02422659Courtesy of GENERAL MOTORS CORP.
