Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Support the transmission with a transmission jack.
  3. Remove the transmission support. Refer to TRANSMISSION SUPPORT REPLACEMENT .
  4. Remove the transmission mount mounting bolts, for RWD vehicles.

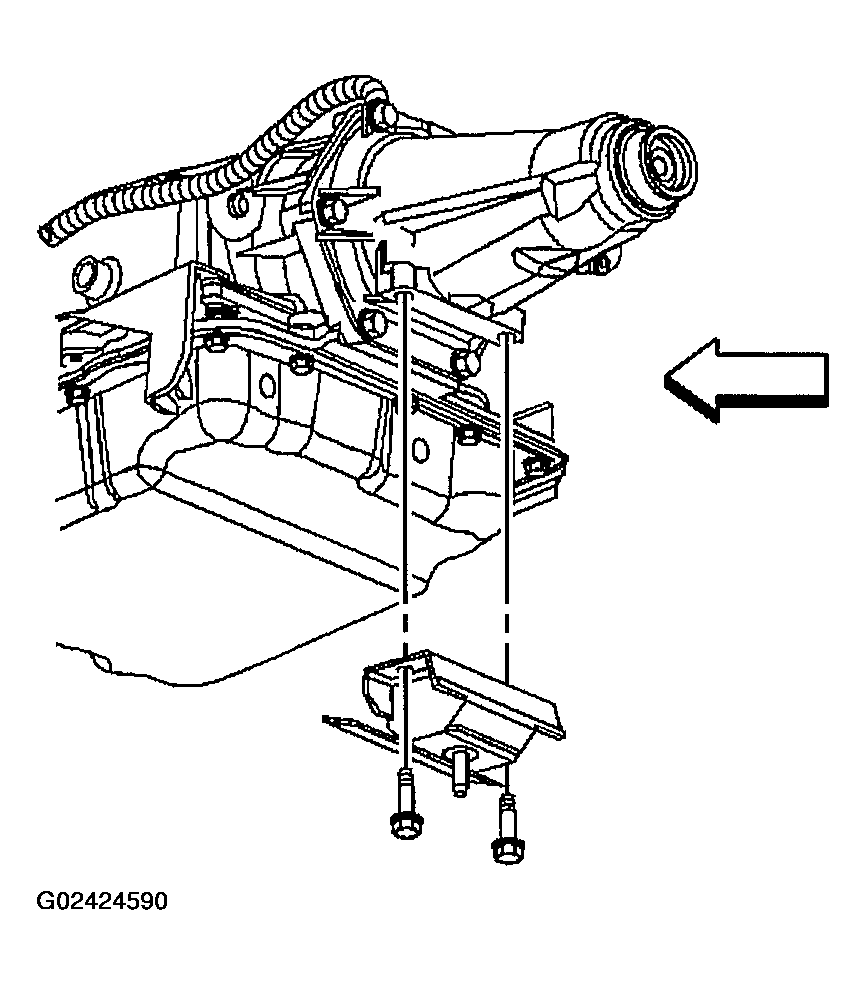

    Fig 1: Removing Transmission Mount Mounting Bolts (RWD)
    G02424590Courtesy of GENERAL MOTORS CORP.
  5. Remove the transmission mount mounting bolts, for 4WD vehicles.
  6. Remove the transmission mount from the vehicle.

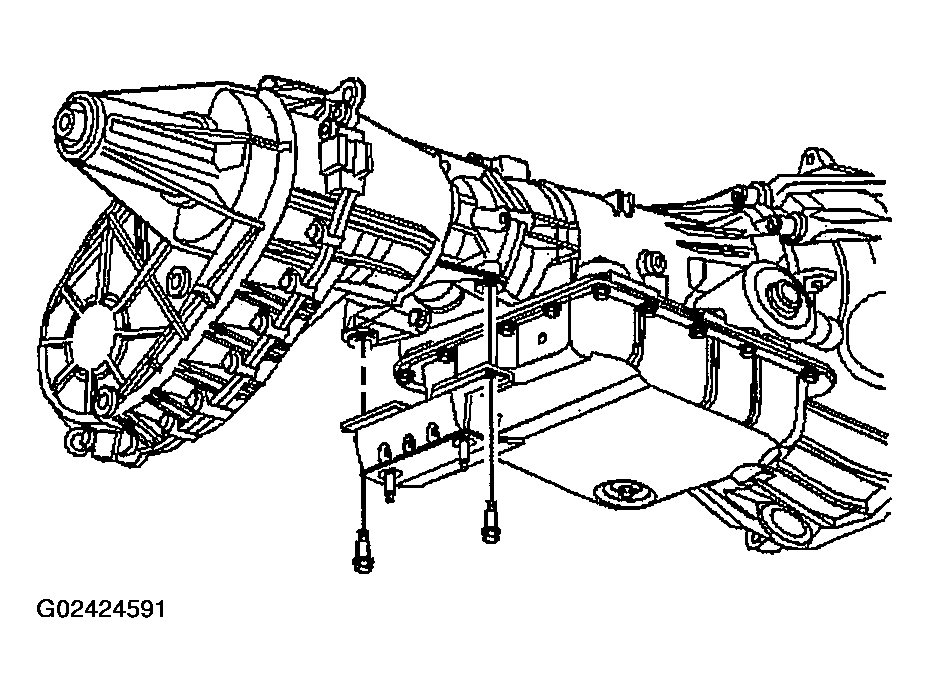

    Fig 2: Removing Transmission Mount Mounting Bolts (4WD)
    G02424591Courtesy of GENERAL MOTORS CORP.
