Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission mount to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the transmission mount mounting bolts, for 4WD vehicles.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

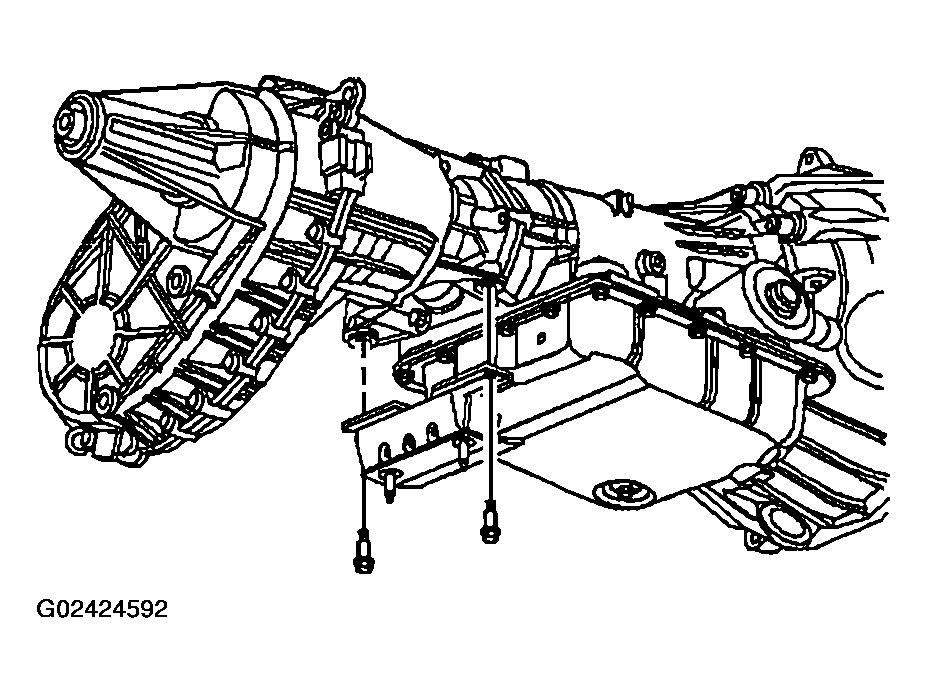

    Fig 1: Installing Transmission Mount Mounting Bolts (4WD)
    G02424592Courtesy of GENERAL MOTORS CORP.
  3. Install the transmission mount mounting bolts, for RWD vehicles.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

  4. Install the transmission support. Refer to TRANSMISSION SUPPORT REPLACEMENT .
  5. Remove the transmission jack.
  6. Lower the vehicle.

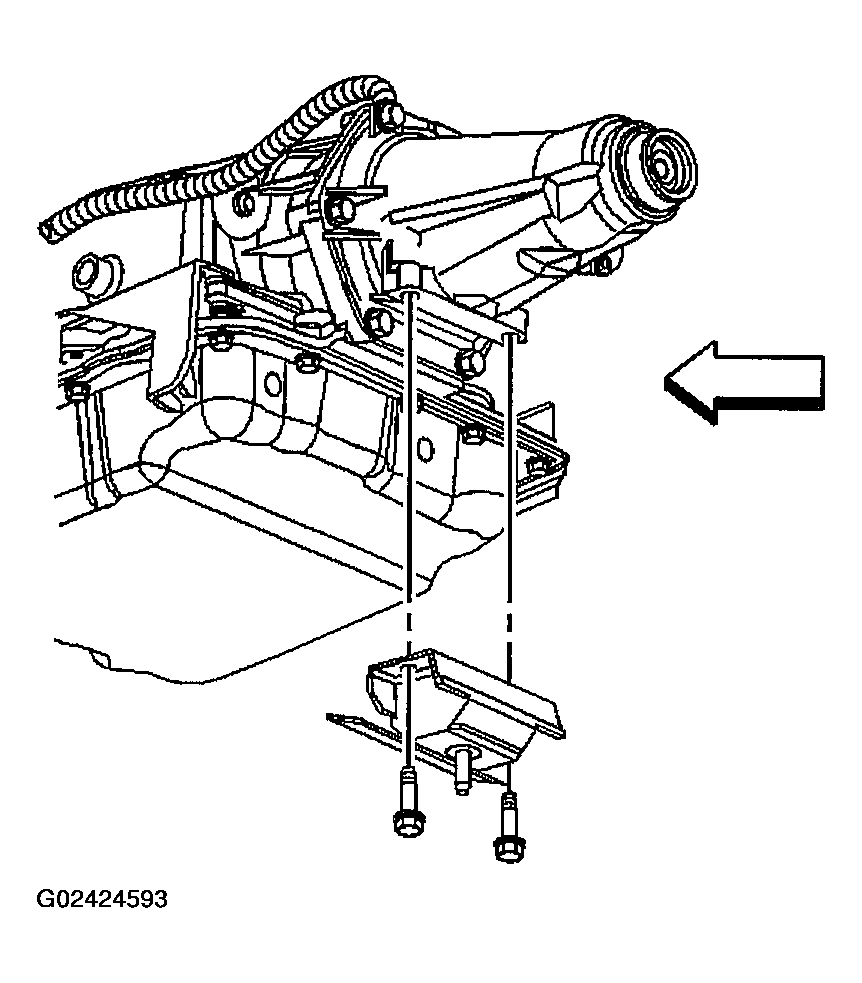

    Fig 2: Installing Transmission Mount Mounting Bolts (RWD)
    G02424593Courtesy of GENERAL MOTORS CORP.
