Determine Minimum Flow Rate
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- From the machine display, identify the temperature of the automatic transmission fluid that is stored in the supply vessel of J 45096 .

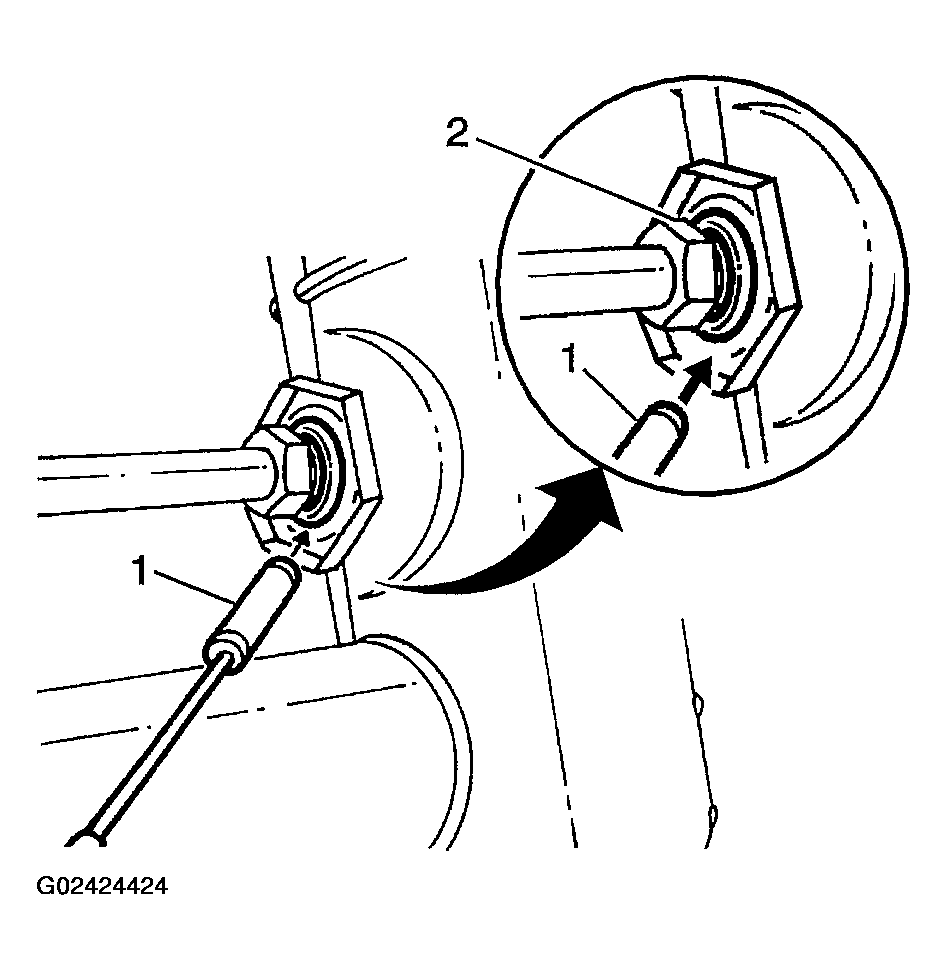

- Determine whether the transmission oil cooler is steel or aluminum by using a magnet (1) at the cooler flange (2) at the radiator.
- Refer to the table below. Using the temperature from step 1, locate on either the Steel MINIMUM Flow Rate table or the Aluminum MINIMUM Flow Rate table the minimum flow rate in gallons per minutes (GPM). Record the minimum flow rate in GPMs and the supply fluid temperature for further reference.
Example:
- Fluid temperature: 75 °F
- Cooler type: Steel
The MINIMUM flow rate for this example would be 0.8 GPM.
- Inspect transmission oil cooler lines for damage or kinks that could cause restricted oil flow. Repair as needed and refer to the appropriate GM service manual procedures.Minimum Flow Rate In Gallons Per Minute (GPM)
Temperature Range Steel Aluminum 65 to 66°F 0.6 gpm 0.5 gpm 67 to 70°F 0.7 gpm 0.6 gpm 71 to 75°F 0.8 gpm 0.7 gpm 76 to 80°F 0.9 gpm 0.8 gpm 81 to 84°F 1.0 gpm 0.9 gpm 85 to 89°F 1.1 gpm 1.0 gpm 90 to 94°F 1.2 gpm 1.1 gpm 95 to 98°F 1.3 gpm 1.2 gpm 99 to 103°F 1.4 gpm 1.3 gpm 104 to 108°F 1.5 gpm 1.4 gpm 109 to 112°F 1.6 gpm 1.5 gpm 113 to 117°F 1.7 gpm 1.6 gpm 118 to 120°F 1.8 gpm 1.7 gpm
