Automatic Transmission Oil Cooler Flushing and Flow Test (J 45096): Clean-up

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Turn the main function switch to the IDLE position and allow the supply vessel pressure to dissipate.
Turn the main power switch to the OFF position.
Disconnect the supply and waste hoses and the 12-volt power source from the vehicle.
NOTE: A small amount of water may drain from the bottom of the unit when the air supply is disconnected. This is a normal operation of the built-in water separator.

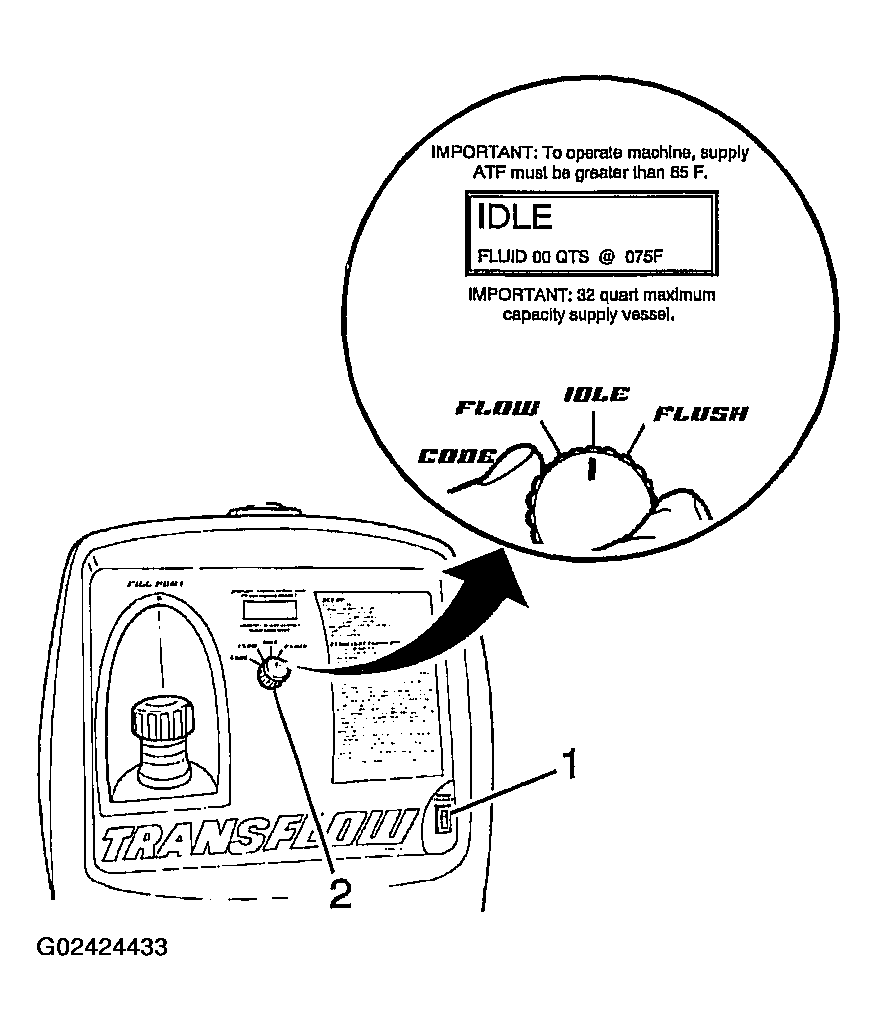

Fig 1: Turning Main Function Switch To IDLE Position
Courtesy of GENERAL MOTORS CORP.
Disconnect the air supply hose from J 45096 .
Dispose of the waste ATF in accordance with all applicable federal, state, and local requirements.

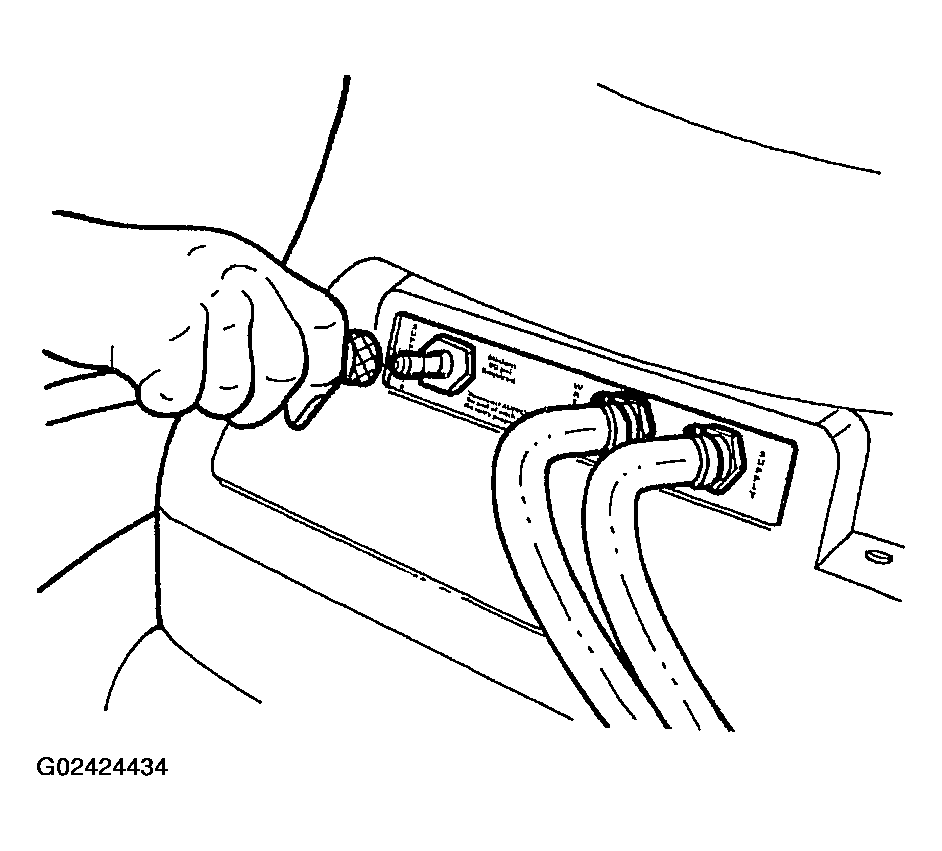

Fig 2: Disconnecting Air Supply Hose

Courtesy of GENERAL MOTORS CORP.
