Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat riser to the seat cushion frame.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the bolts (3) and nuts (2) to retain the seat riser to the seat cushion frame.

    Tighten

    Tighten the nuts to 55 N.m (41 lb ft).

  3. Install the seat (1) into the vehicle. Refer to Seat Replacement - Rear Bench .

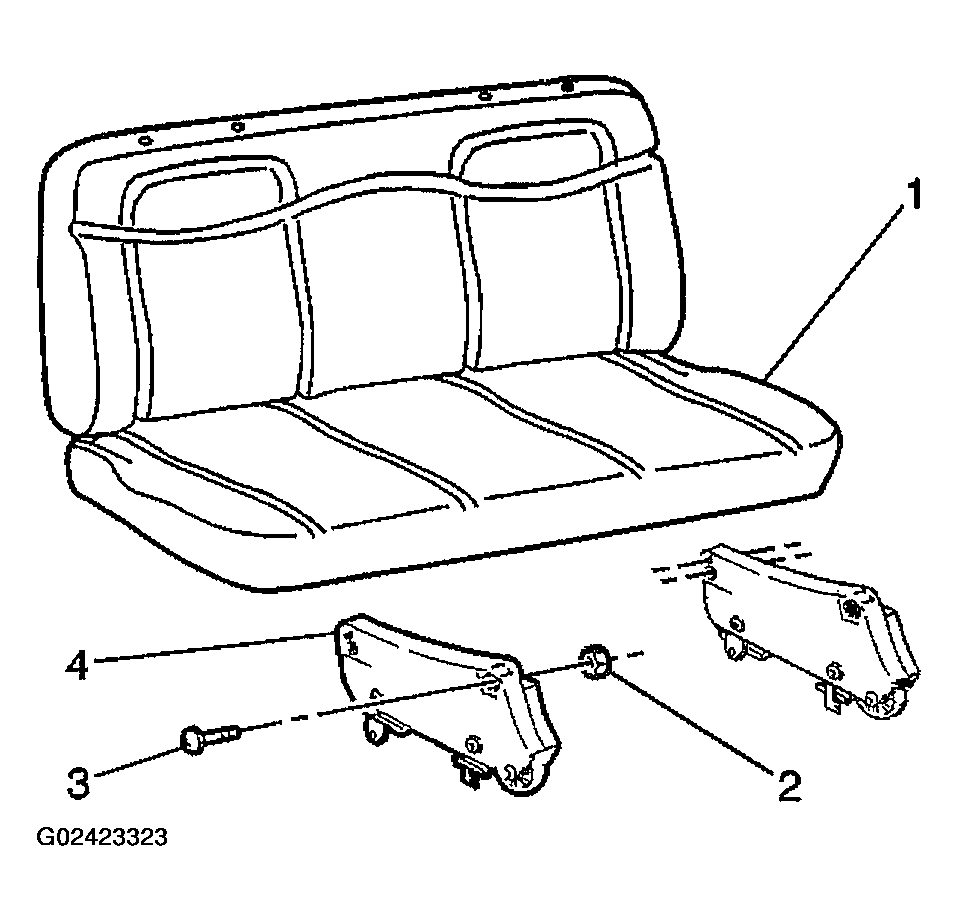

    Fig 1: Installing Rear Seat Riser
    G02423323Courtesy of GENERAL MOTORS CORP.
