Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the foam pad (2) to the seat back frame (1).
  2. Working from side to side, install the seat back cover (3) over the foam pad (2).
  3. Engage the hook and loop strips that retain the seat back cover to the seat back foam pad.
  4. Engage the J channel fastener at the bottom edge of the seat back cover.
  5. Install the center seat belt retractor, if equipped. Refer to SEAT BELT REPLACEMENT - CENTER REAR .
  6. Install the armrest to the seat back. Refer to Armrest Replacement - Rear Seat .

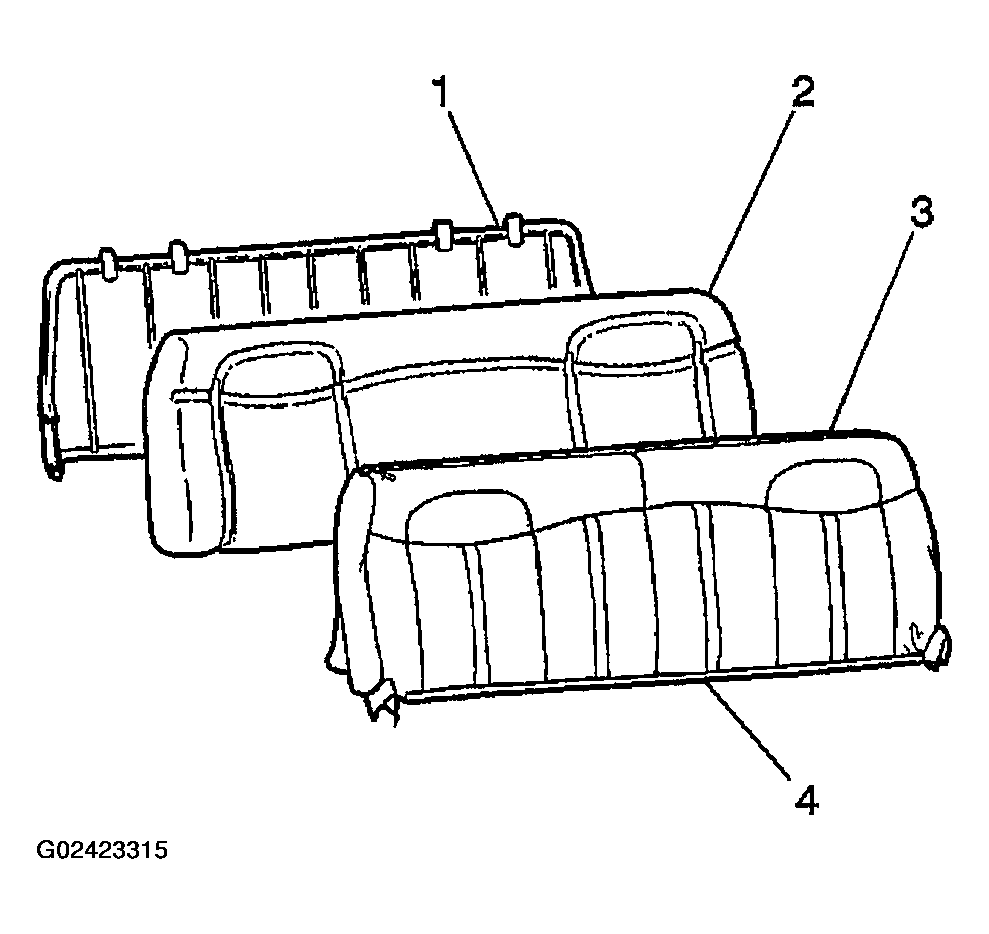

    Fig 1: Installing Rear Seat Back Cover & Pad
    G02423315Courtesy of GENERAL MOTORS CORP.
