Schematic and Routing Diagrams

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

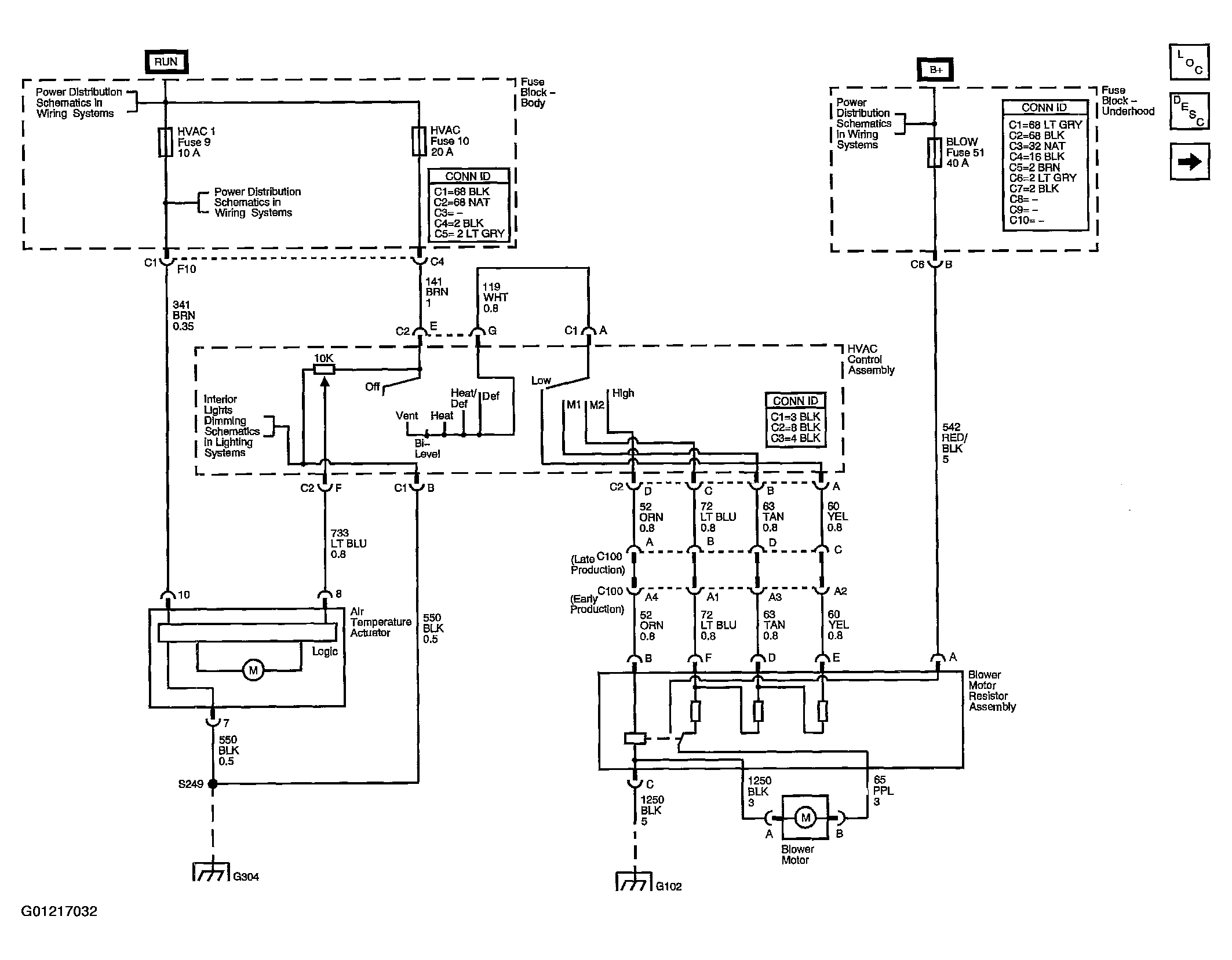

Fig 1: HVAC Schematics - Primary Blower and Air Delivery Controls (C42)

G01217032

Courtesy of GENERAL MOTORS CORP.

Fig 2: HVAC Schematics - Primary Blower and Air Delivery Controls (C60)

G01217033

Courtesy of GENERAL MOTORS CORP.

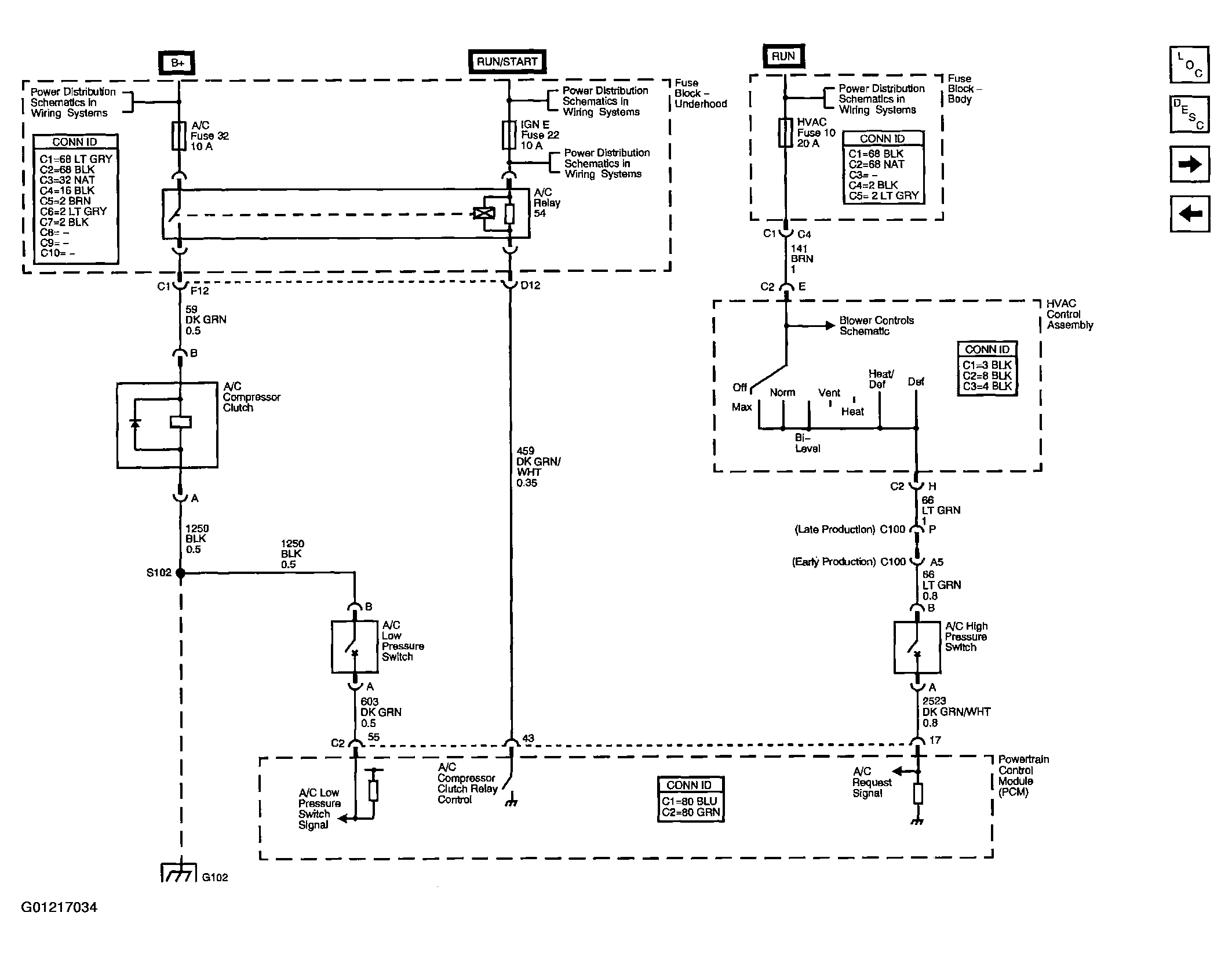

Fig 3: HVAC Schematics - Compressor Controls (C60)

G01217034

Courtesy of GENERAL MOTORS CORP.

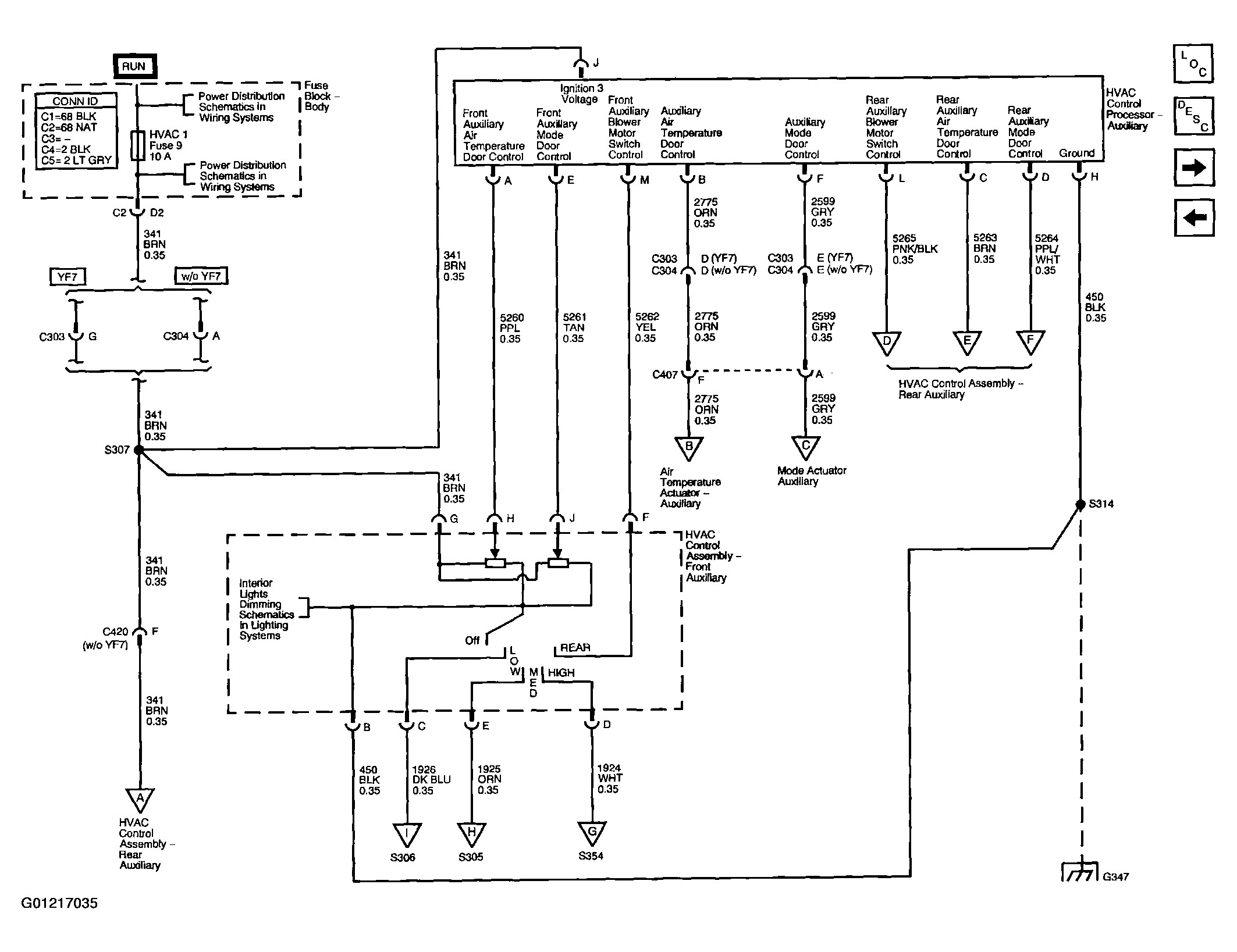

Fig 4: HVAC Schematics - Rear HVAC with Rear Auxiliary Controls 1 of 3 (C69)

G01217035

Courtesy of GENERAL MOTORS CORP.

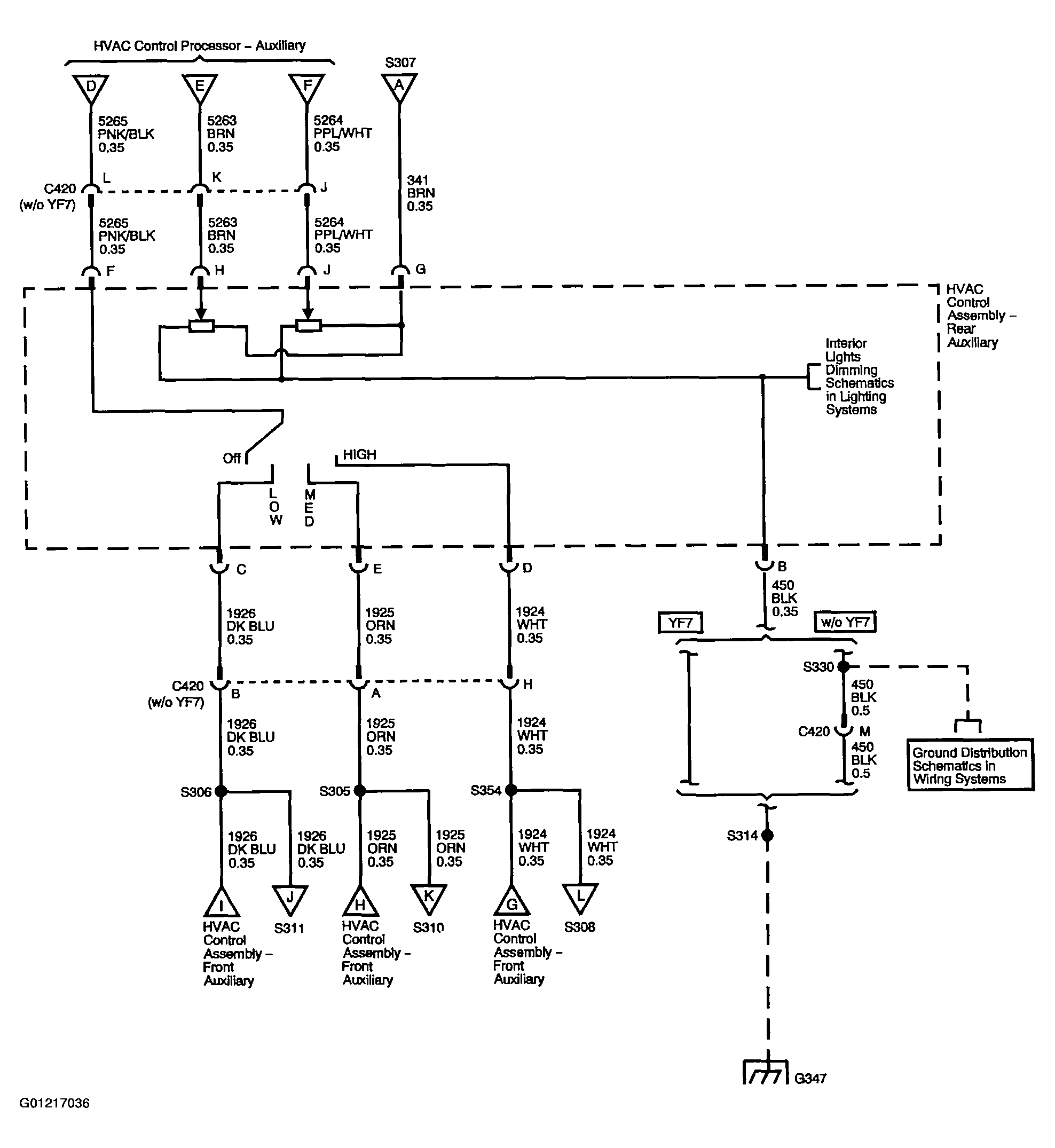

Fig 5: HVAC Schematics - Rear HVAC with Rear Auxiliary Controls 2 of 3 (C69)

G01217036

Courtesy of GENERAL MOTORS CORP.

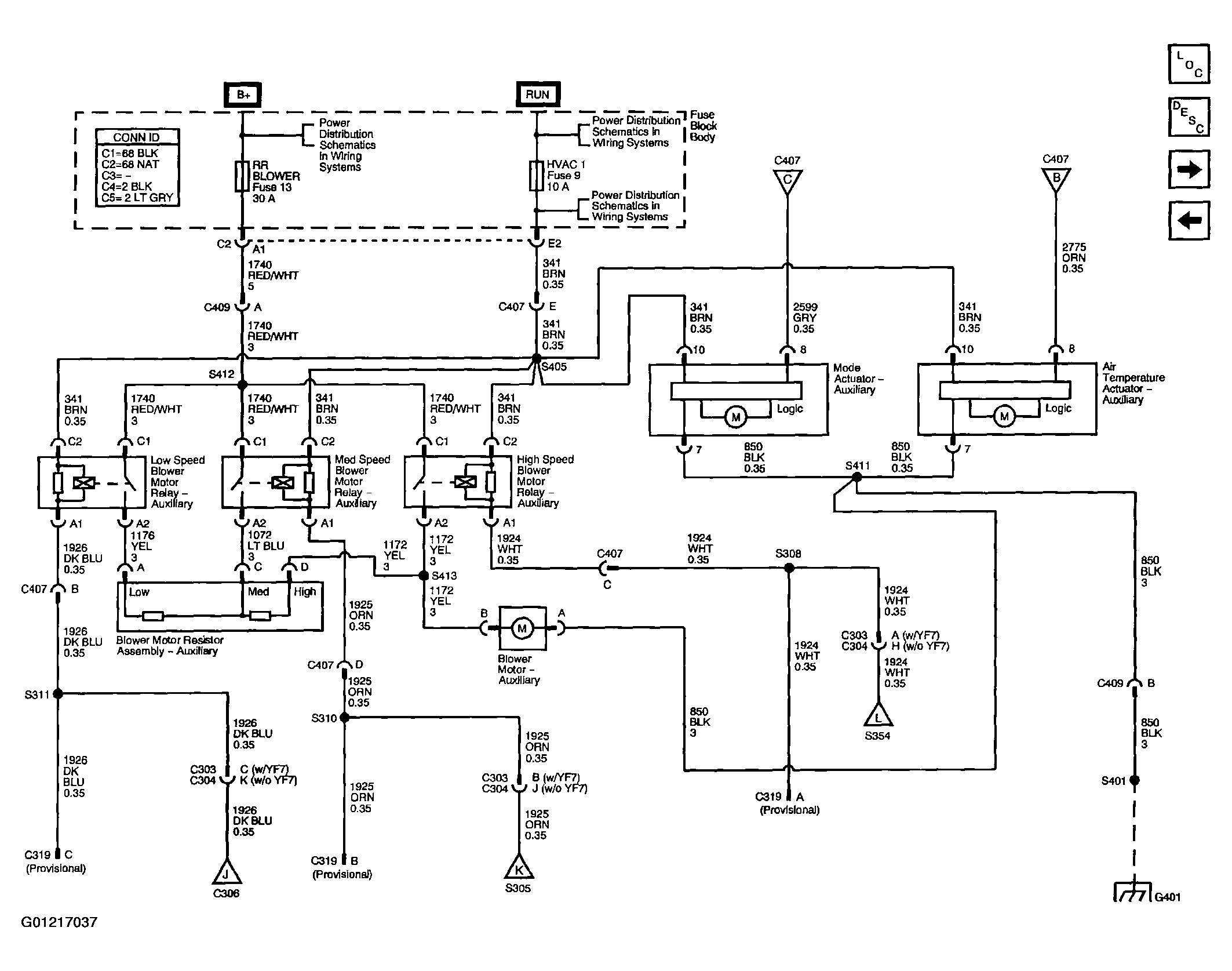

Fig 6: HVAC Schematics - Rear HVAC with Rear Auxiliary Controls 3 of 3 (C69)

G01217037

Courtesy of GENERAL MOTORS CORP.

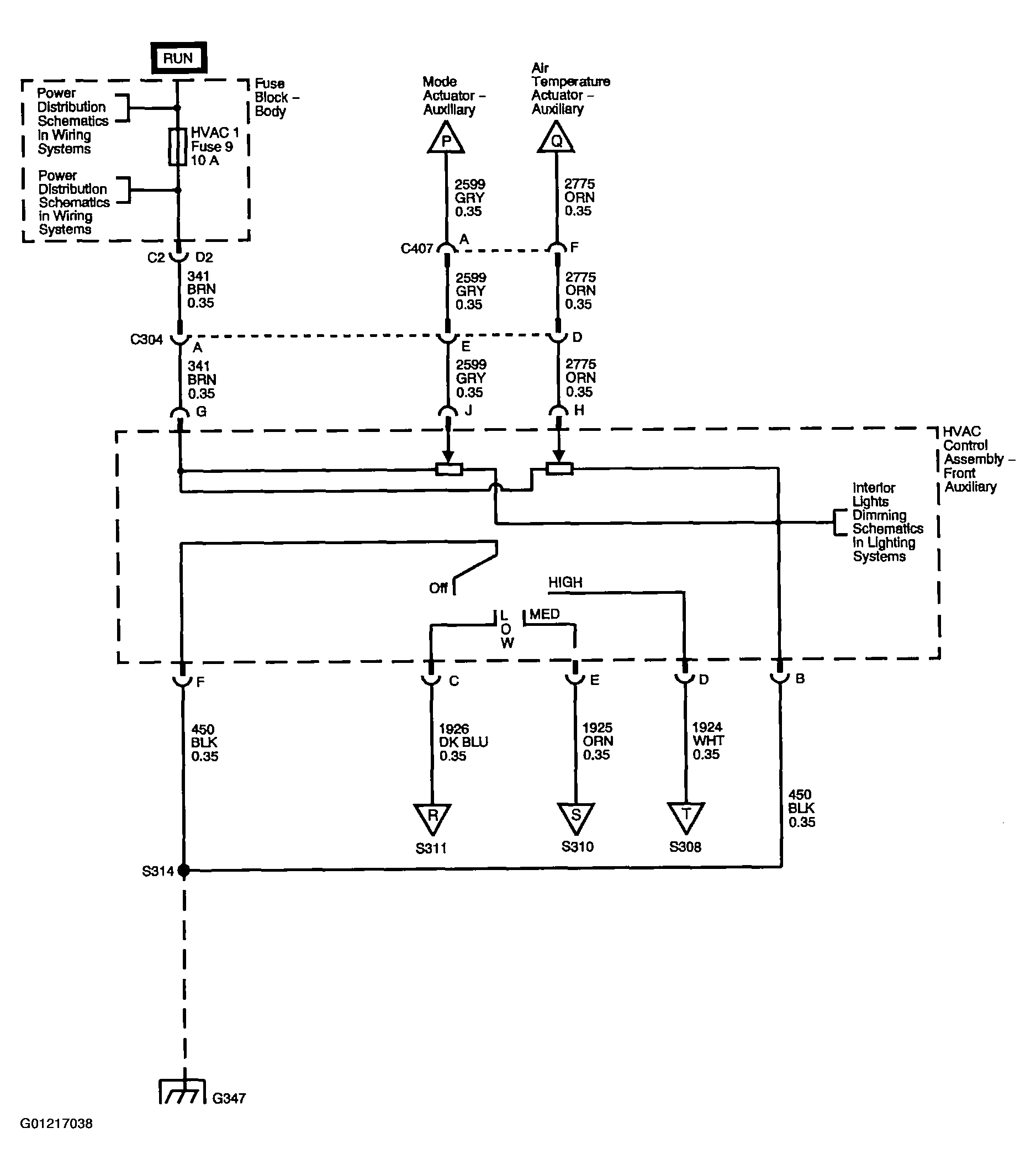

Fig 7: HVAC Schematics - Rear HVAC w/o Rear Auxiliary Controls 1 of 2 (C69)

G01217038

Courtesy of GENERAL MOTORS CORP.

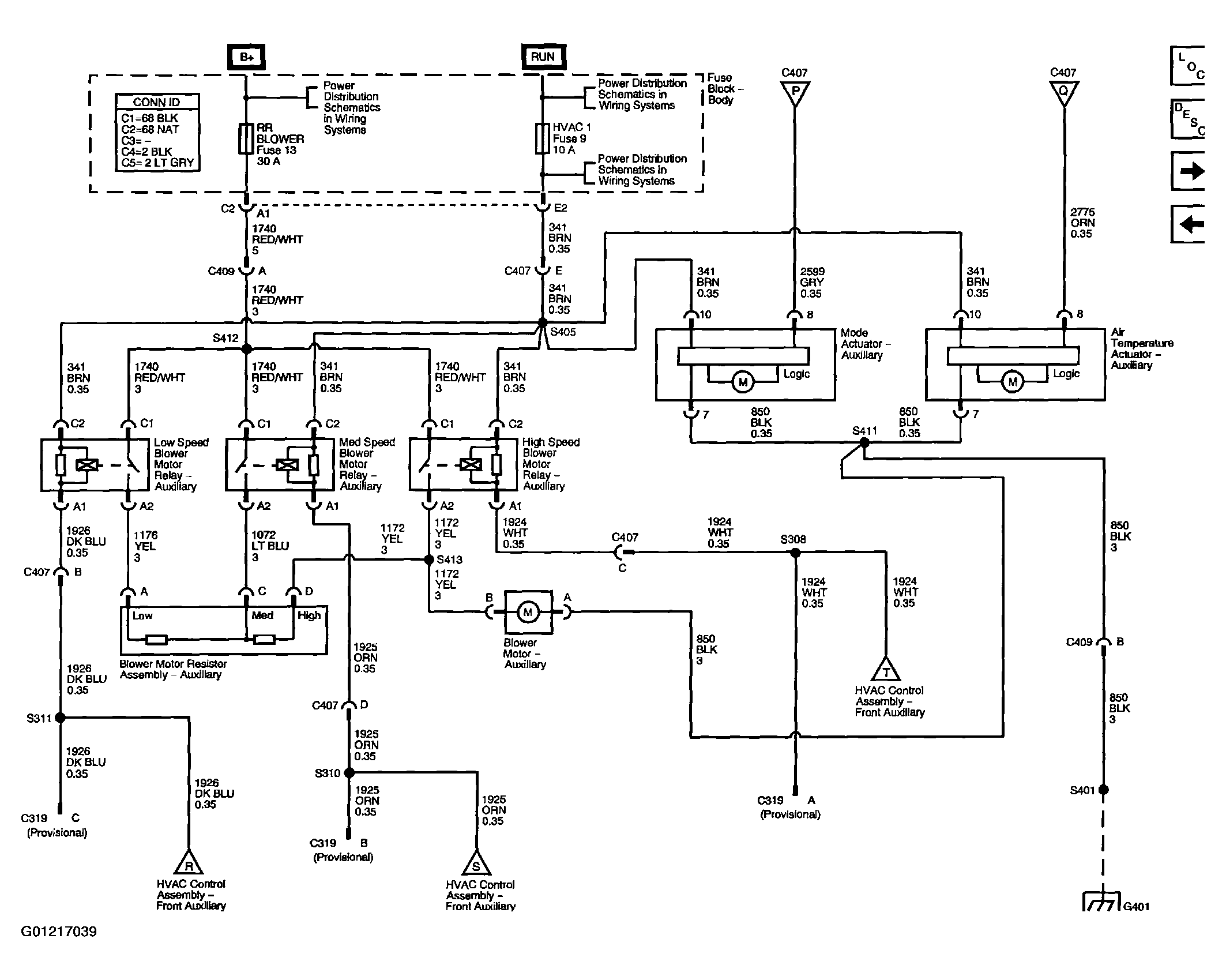

Fig 8: HVAC Schematics - Rear HVAC w/o Rear Auxiliary Controls 2 of 2 (C69)

G01217039

Courtesy of GENERAL MOTORS CORP.

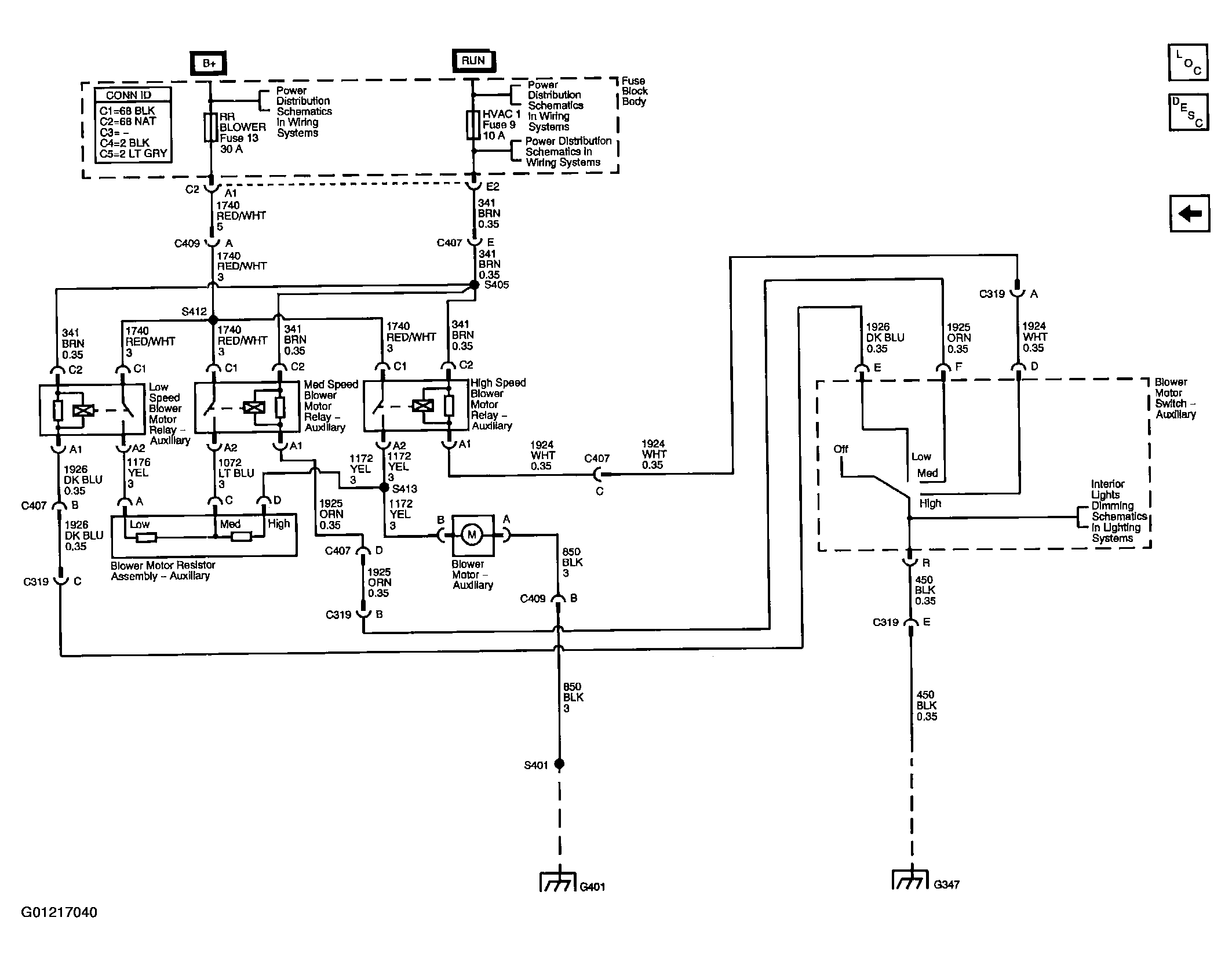

Fig 9: HVAC Schematics - Rear HVAC (C36)

G01217040

Courtesy of GENERAL MOTORS CORP.

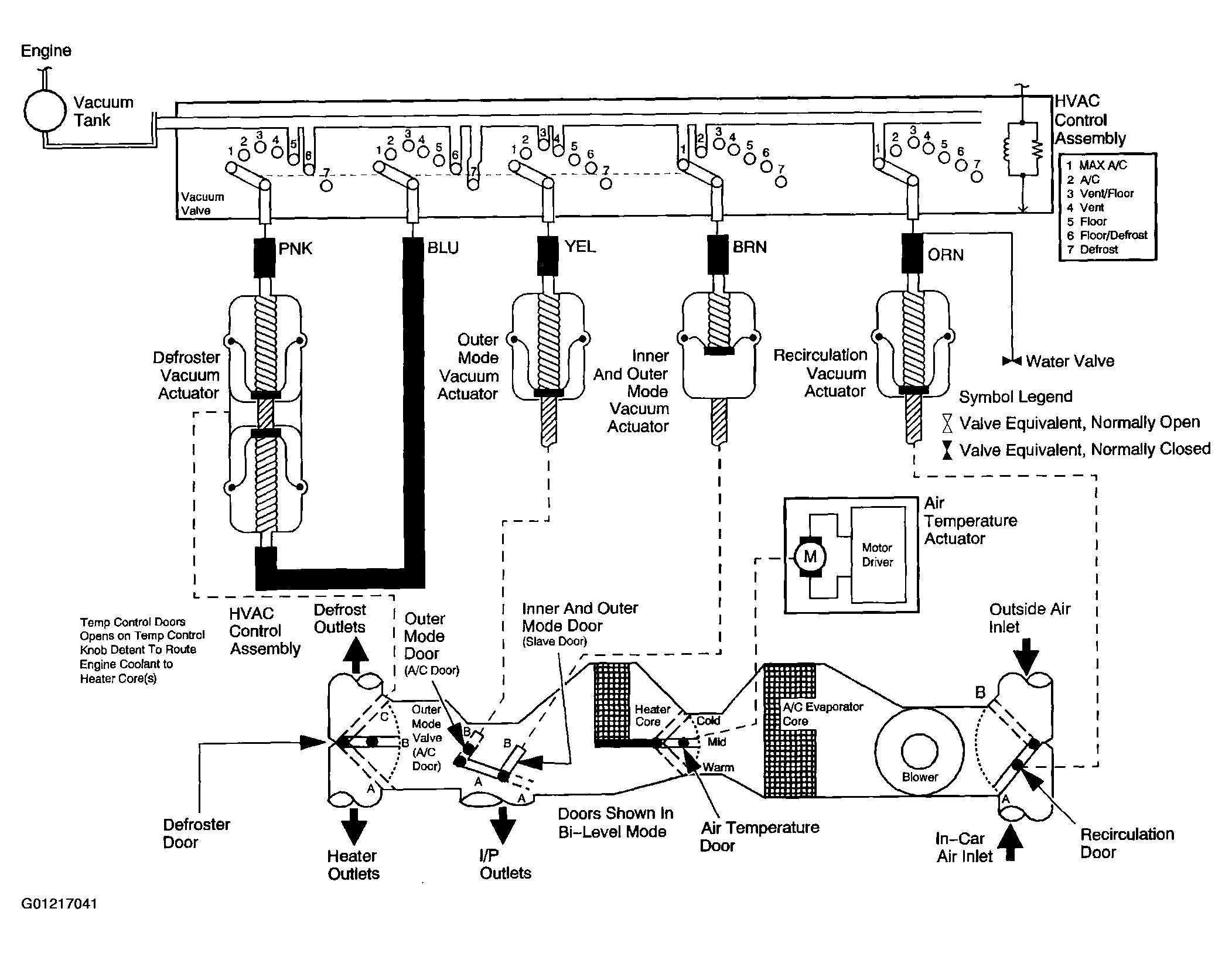

Fig 10: HVAC Vacuum Schematics

G01217041

Courtesy of GENERAL MOTORS CORP.
