Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC control assembly bezel (3) from the headliner (2).
  2. Lower the front headliner to access the rear of the HVAC control assembly (1).
  3. Disconnect the electrical connectors.
  4. Remove the HVAC control assembly from the front headliner.

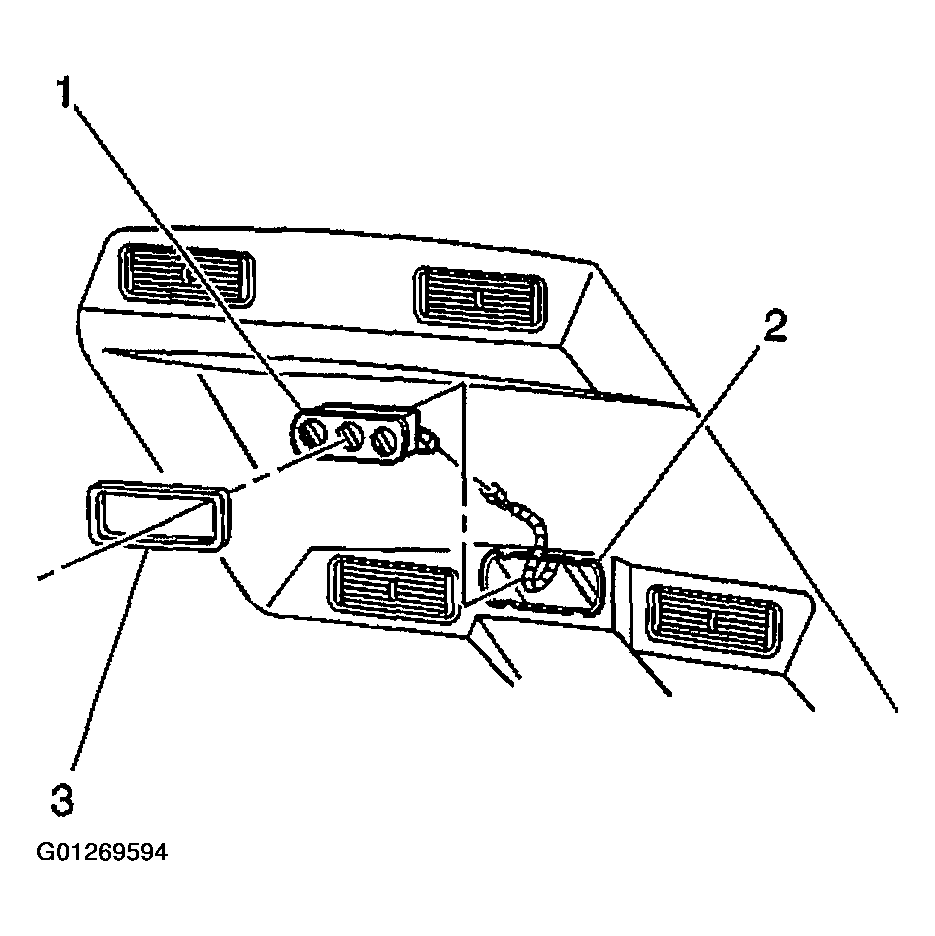

    Fig 1: Removing HVAC Control Assembly
    G01269594Courtesy of GENERAL MOTORS CORP.
