Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster trim plate. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages and Console .
  2. Disconnect the electrical connector from the switch.
  3. Remove the switch from the bezel by releasing the tabs on the side of the switch.

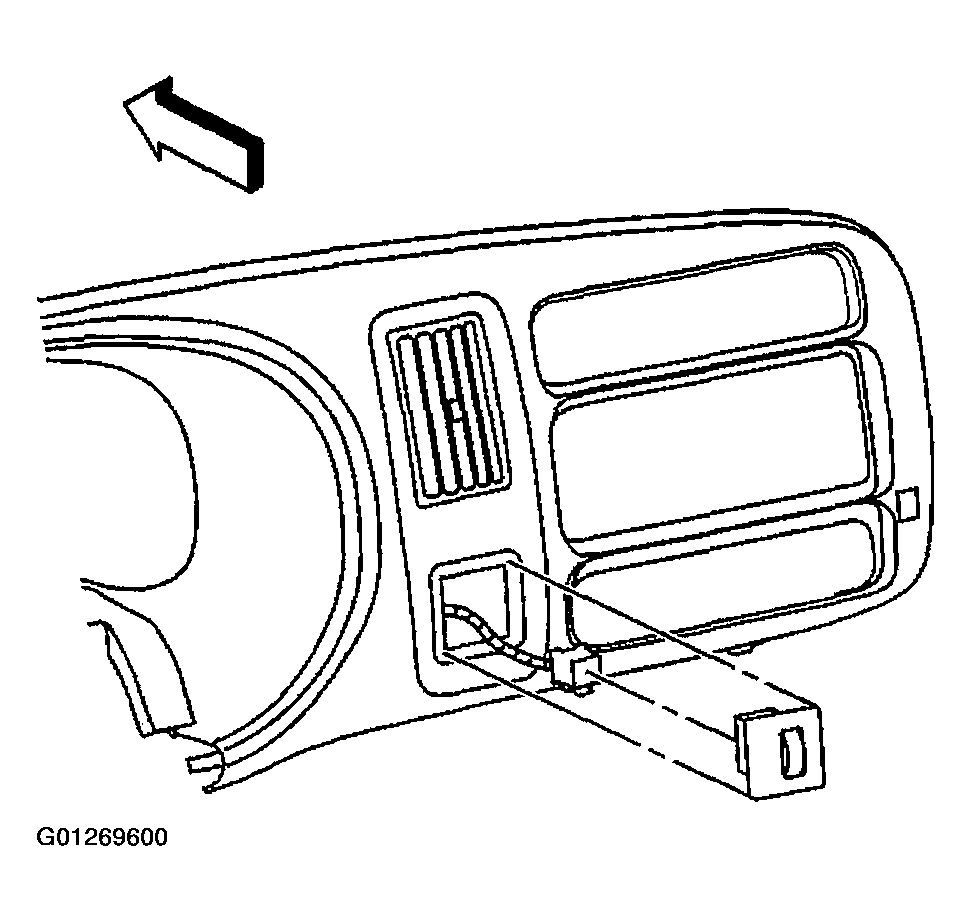

    Fig 1: Removing Blower Motor Switch
    G01269600Courtesy of GENERAL MOTORS CORP.
