Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the switch into the bezel by snapping the switch into place.
  2. Connect the electrical connector to the switch.
  3. Install the instrument cluster trim plate. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages and Console .

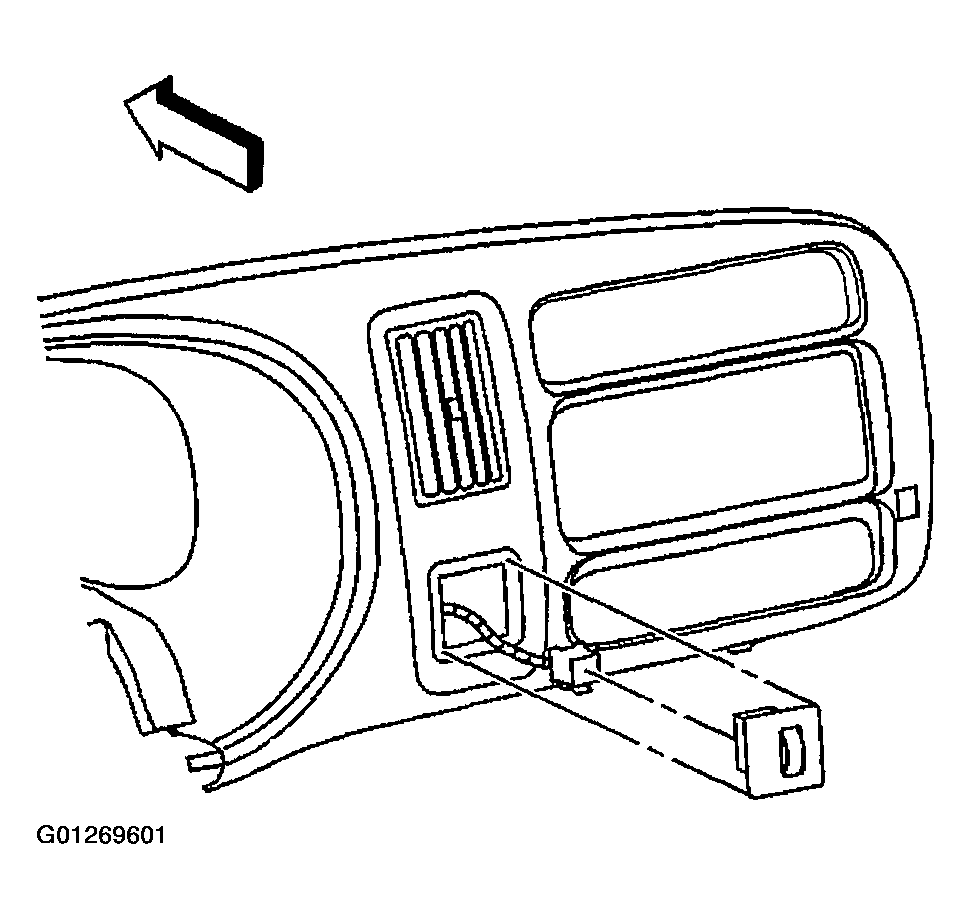

    Fig 1: Installing Blower Motor Switch
    G01269601Courtesy of GENERAL MOTORS CORP.
