Blower Motor Malfunction - Auxiliary

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Test Description

The numbers below refer to the step numbers on the diagnostic table.

7. Test the circuit that did not illuminate the test lamp in Step 6.

10. The control circuit of the auxiliary blower motor relay is the circuit which provides the ground path for the relay coil through the auxiliary blower motor switch esi.

14. Test the blower motor control circuit that corresponds with the inoperative blower motor speed.

15. The auxiliary blower motor switch control circuit is the circuit that enables the rear auxiliary HVAC control assembly when the front auxiliary blower motor switch is placed in the rear control position.

16. The auxiliary blower motor switch control circuit is the circuit that enables the rear auxiliary HVAC control assembly when the front auxiliary blower motor switch is placed in the rear control position.

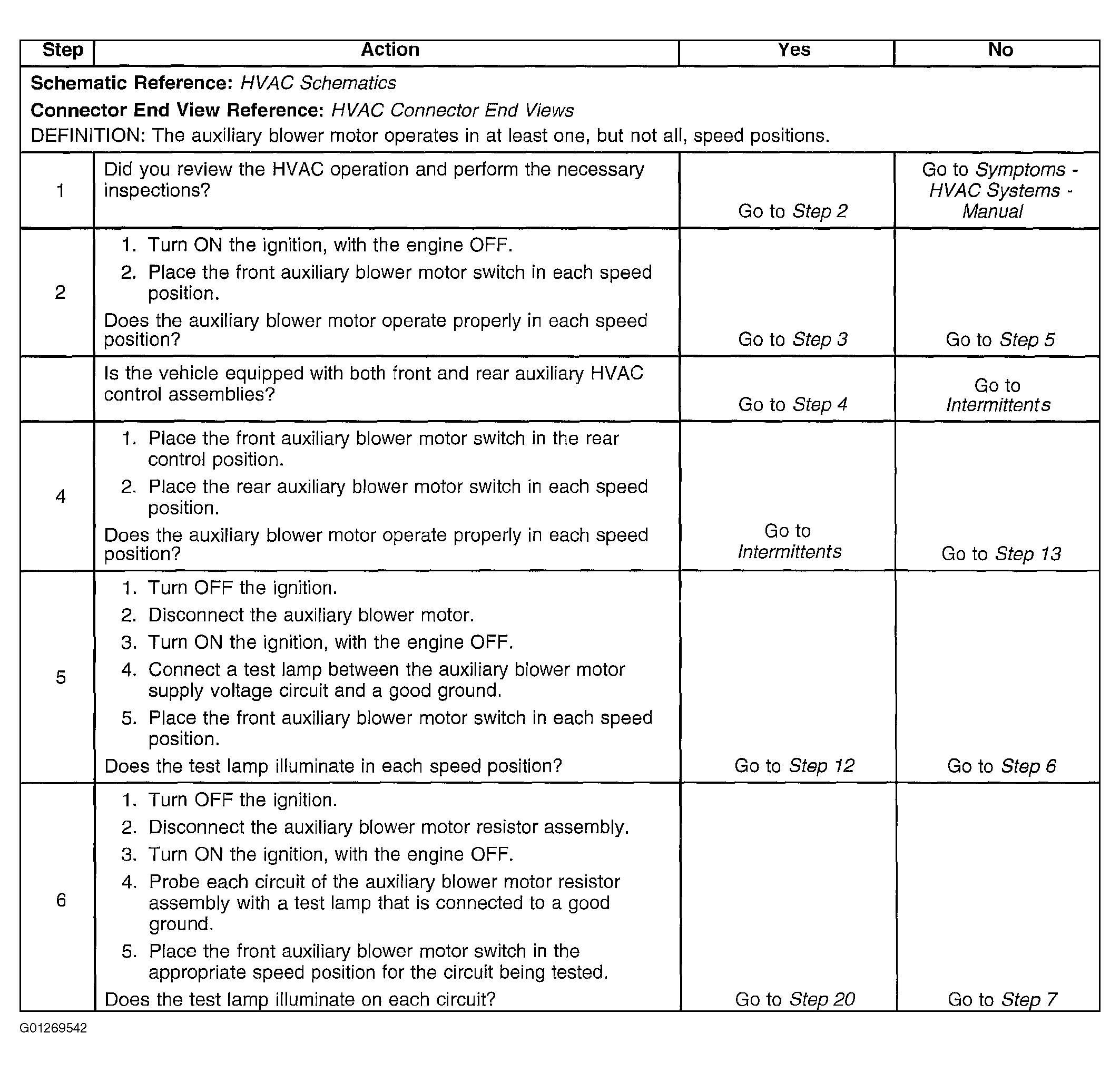

Fig 1: Blower Motor Malfunction - Auxiliary (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

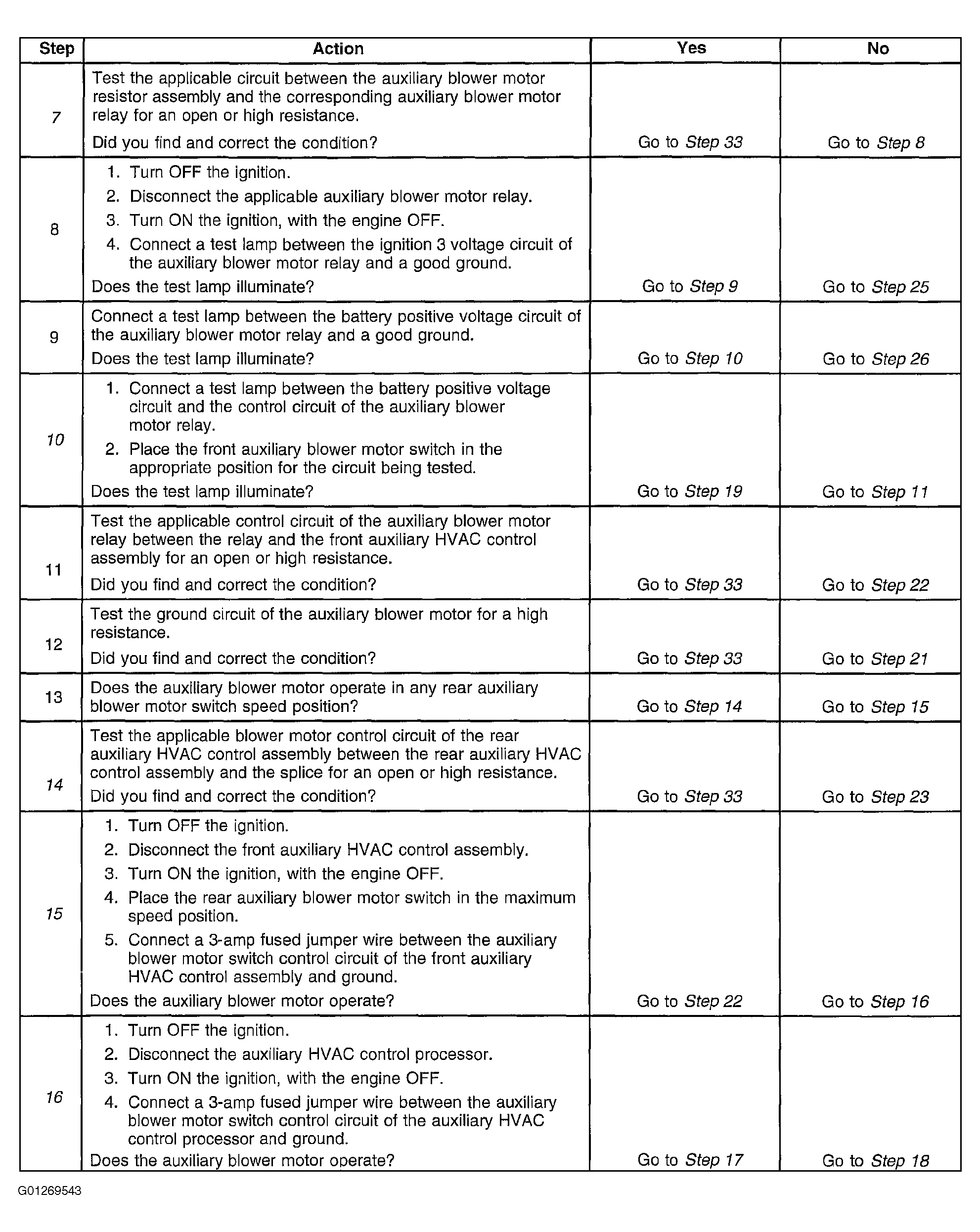

Fig 2: Blower Motor Malfunction - Auxiliary (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

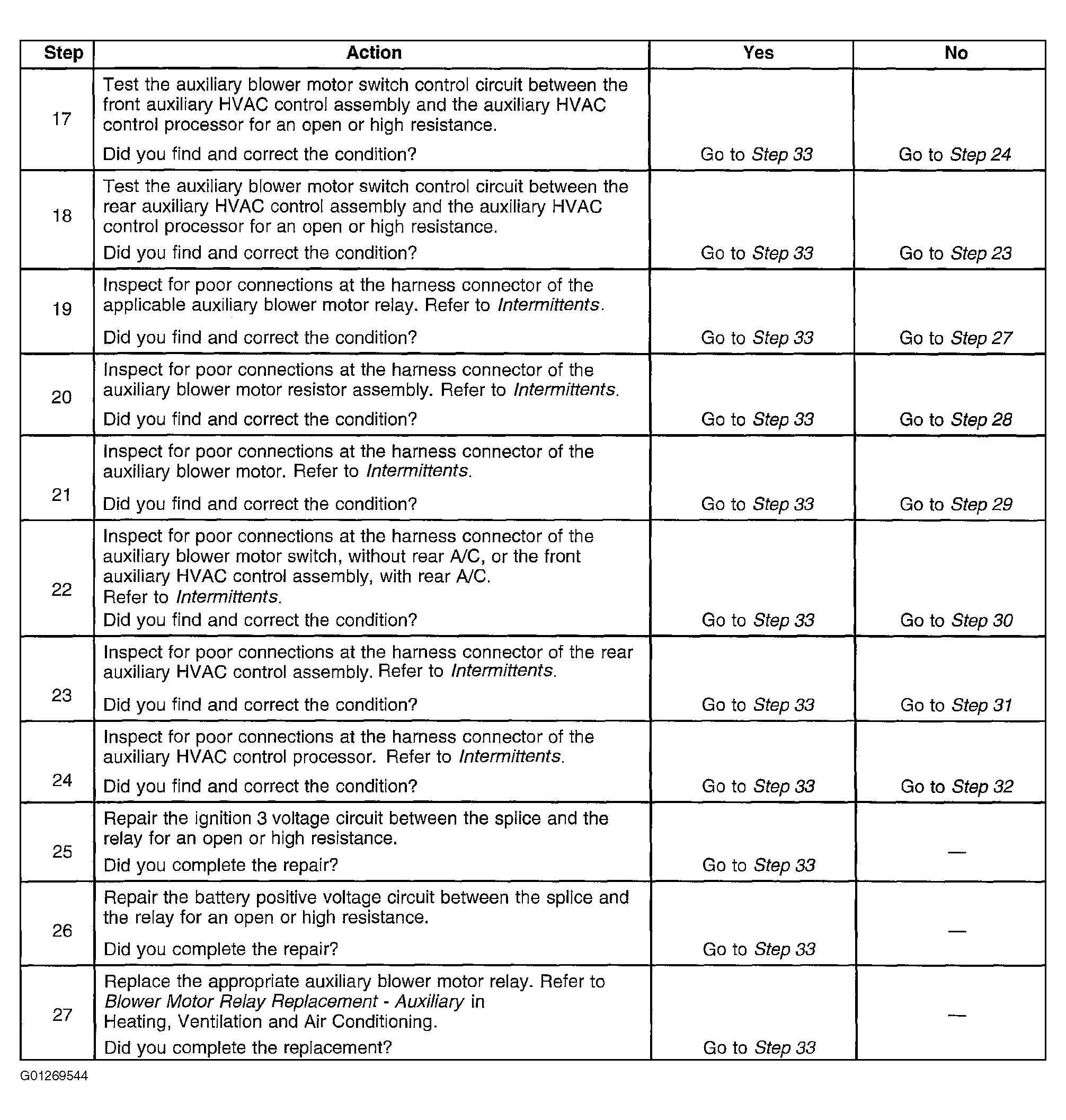

Fig 3: Blower Motor Malfunction - Auxiliary (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

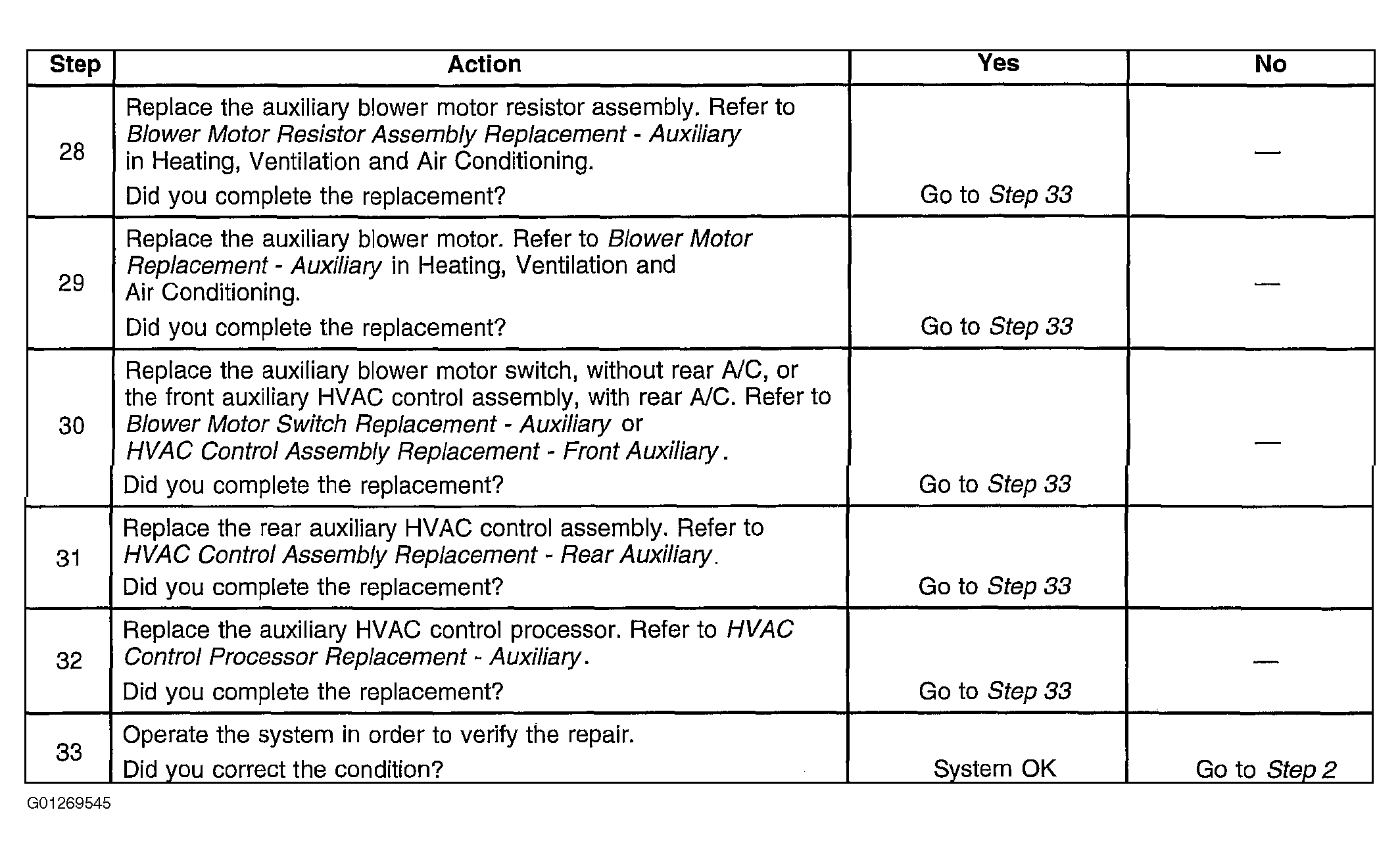

Fig 4: Blower Motor Malfunction - Auxiliary (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
