Blower Motor Always On
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Test Description

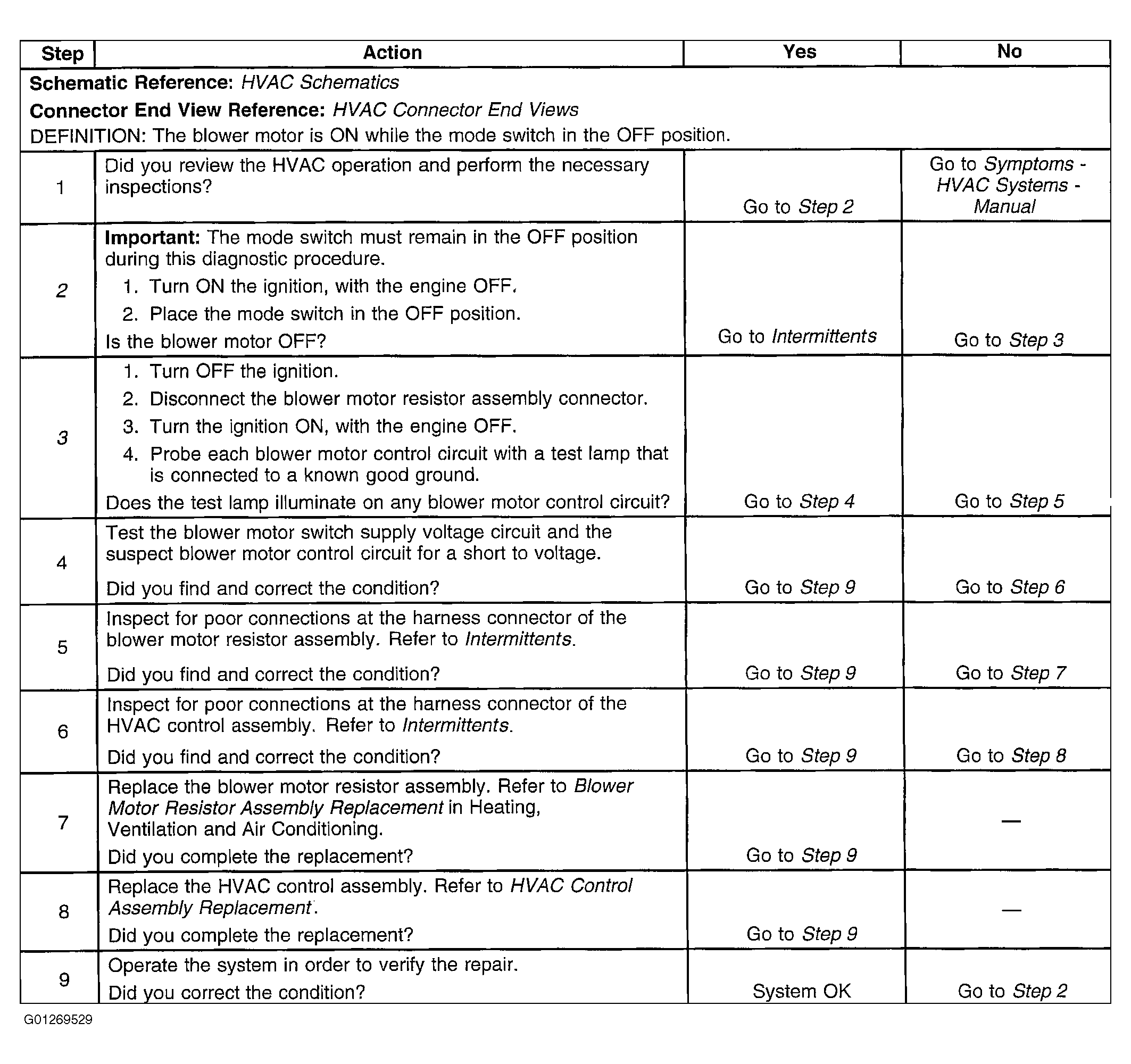

The numbers below refer to the step numbers on the diagnostic table.
2. This step checks for continuous operation of the blower motor.
3. This step tests for a short to voltage in the mode switch output and the LO, M1, M2, and HI blower motor control circuits. It is easiest to perform this step by disconnecting the blower motor resistor assembly connector, and probing each speed control circuit with a test lamp connected to a known good ground.
