HVAC Connector End Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

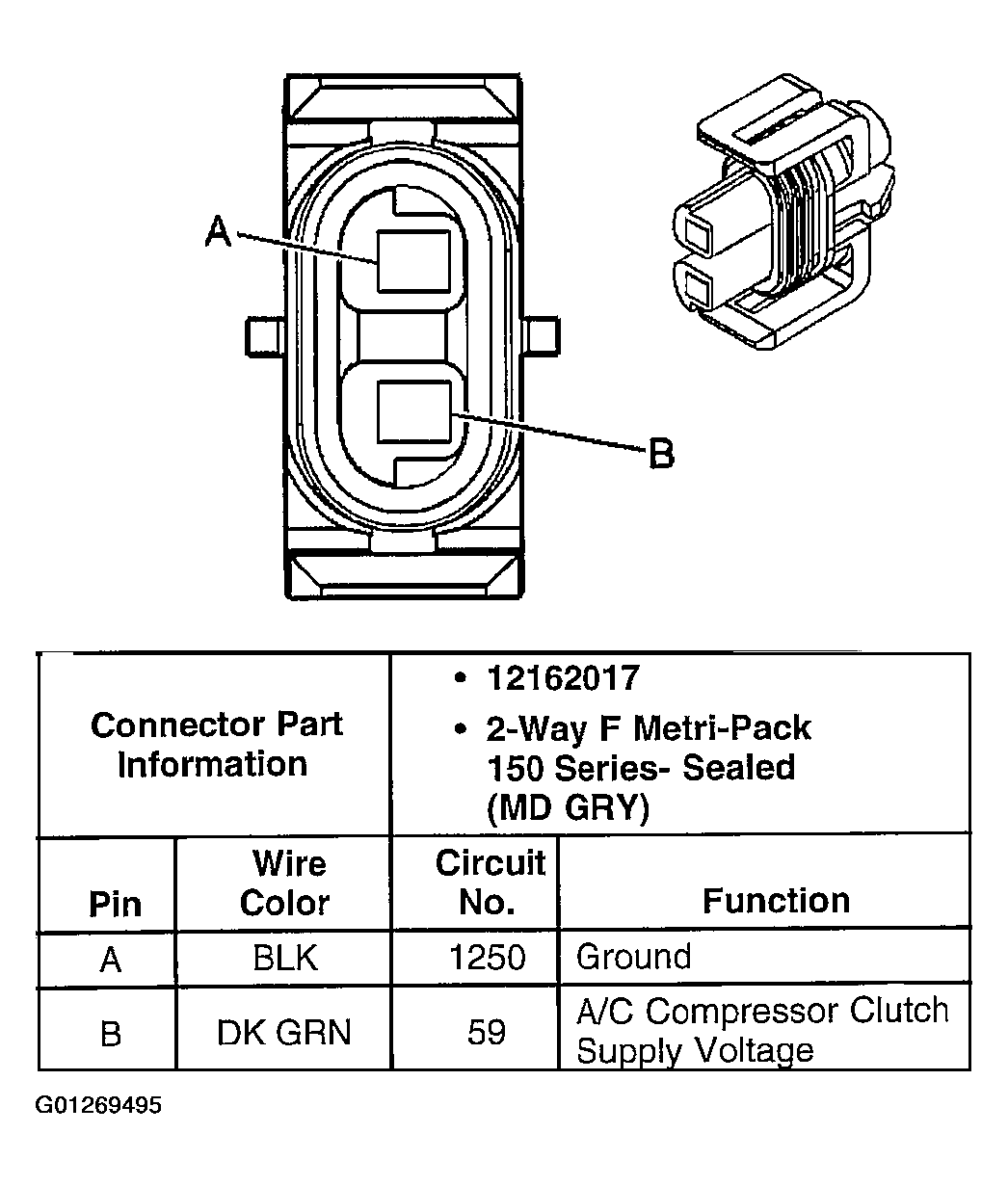

Fig 1: A/C Compressor Clutch (C60)

G01269495

Courtesy of GENERAL MOTORS CORP.

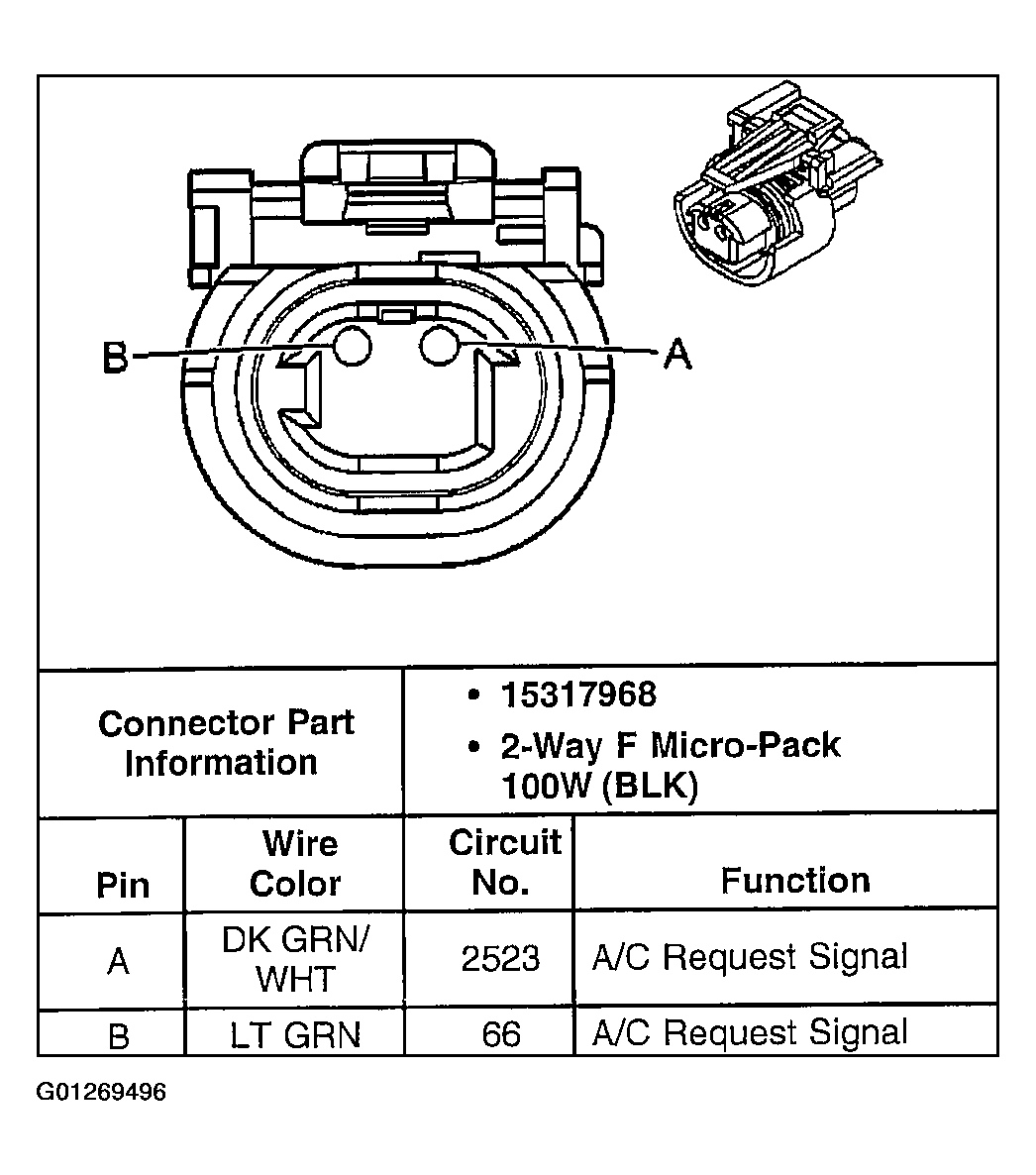

Fig 2: A/C High Pressure Switch (C60)

G01269496

Courtesy of GENERAL MOTORS CORP.

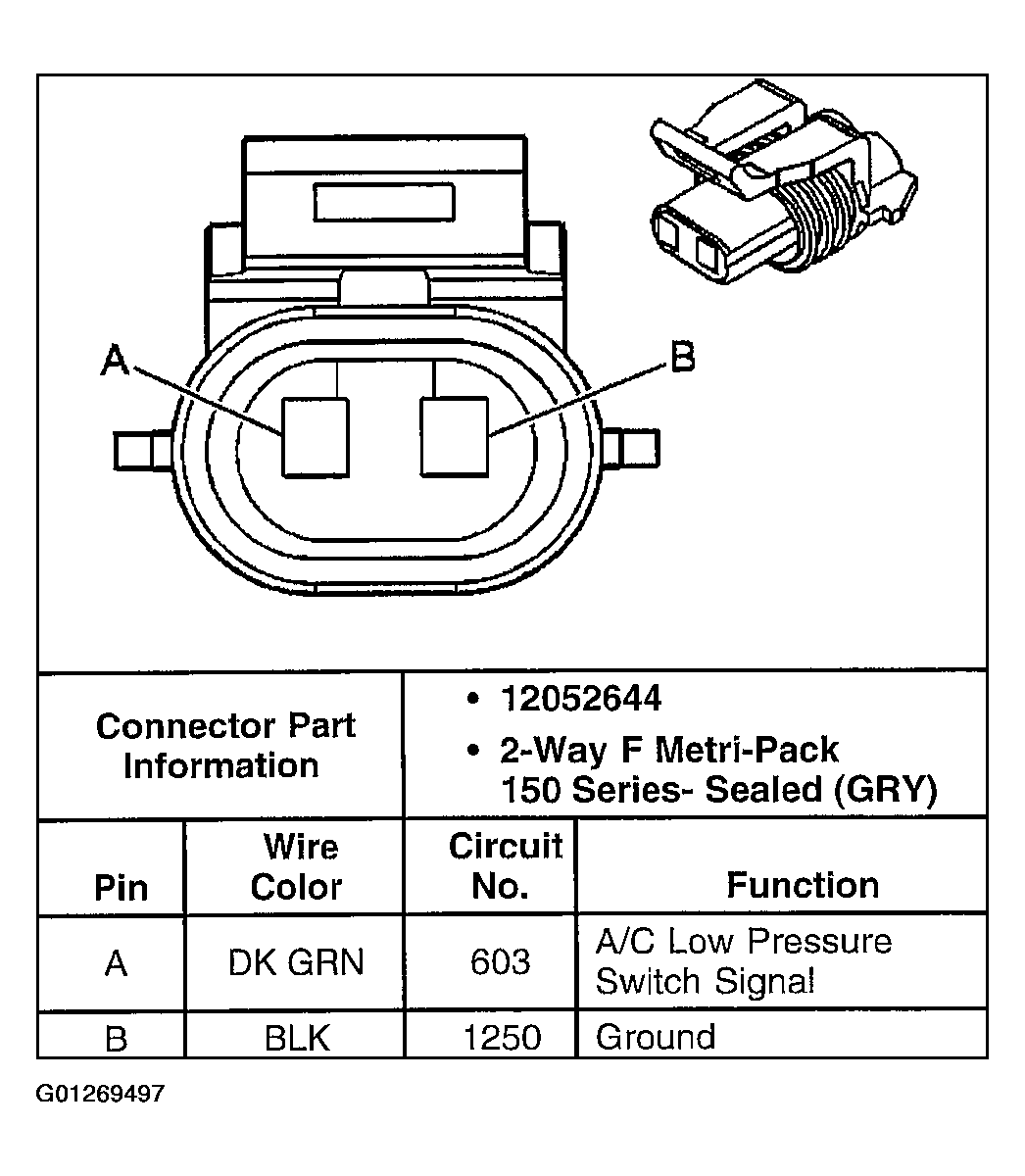

Fig 3: A/C Low Pressure Switch (C60)

G01269497

Courtesy of GENERAL MOTORS CORP.

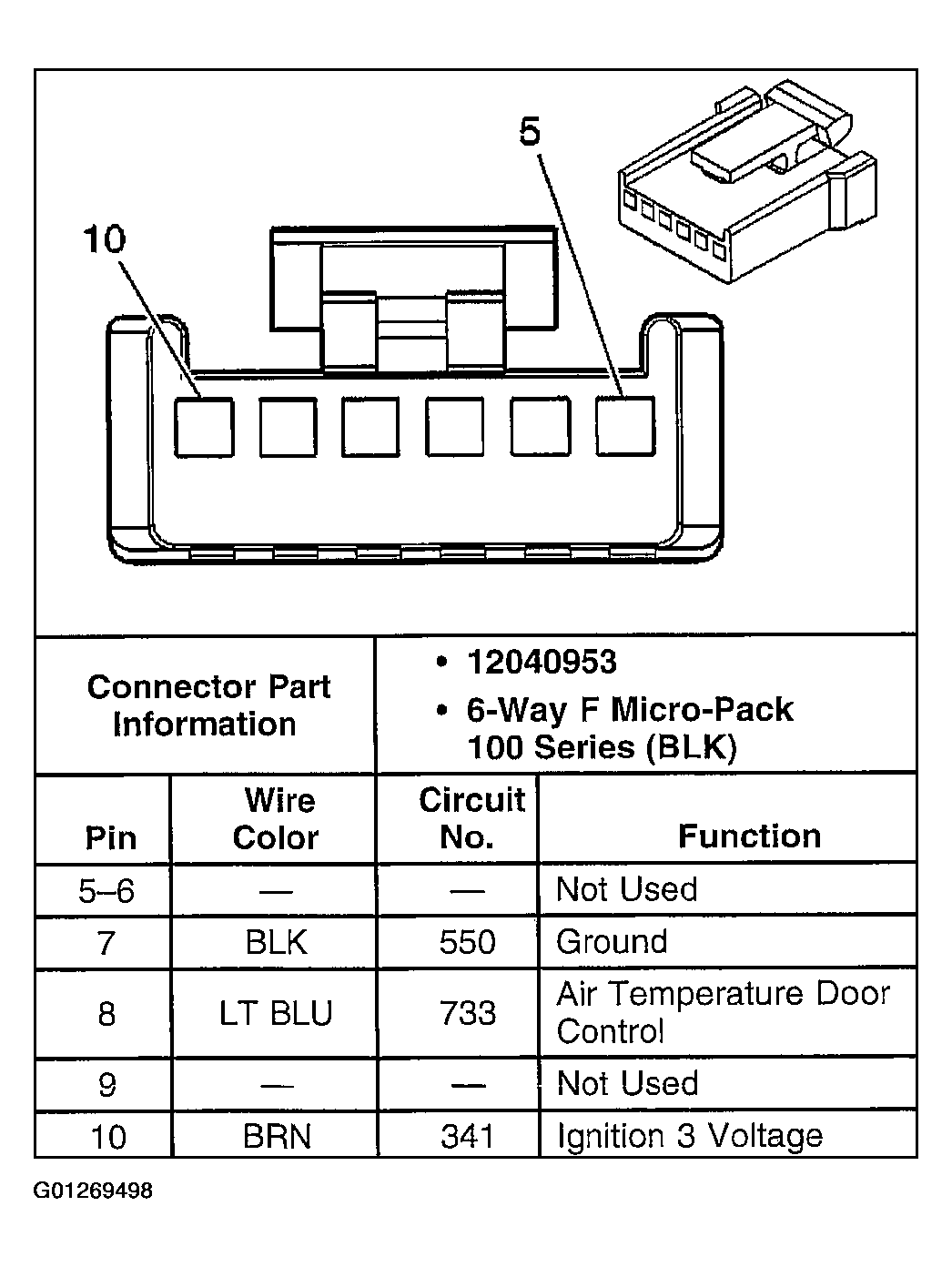

Fig 4: Air Temperature Actuator

G01269498

Courtesy of GENERAL MOTORS CORP.

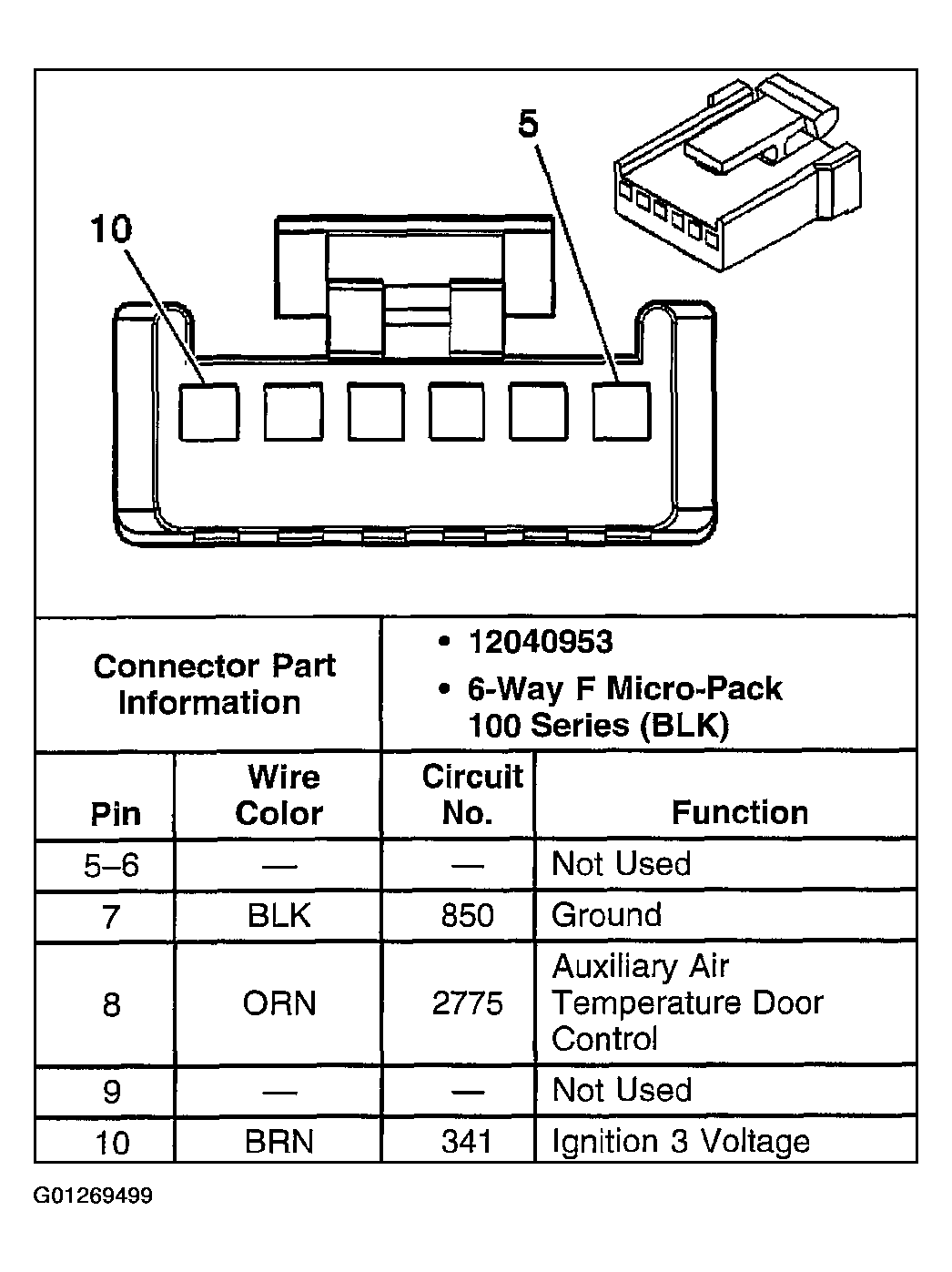

Fig 5: Air Temperature Actuator - Auxiliary (C69)

G01269499

Courtesy of GENERAL MOTORS CORP.

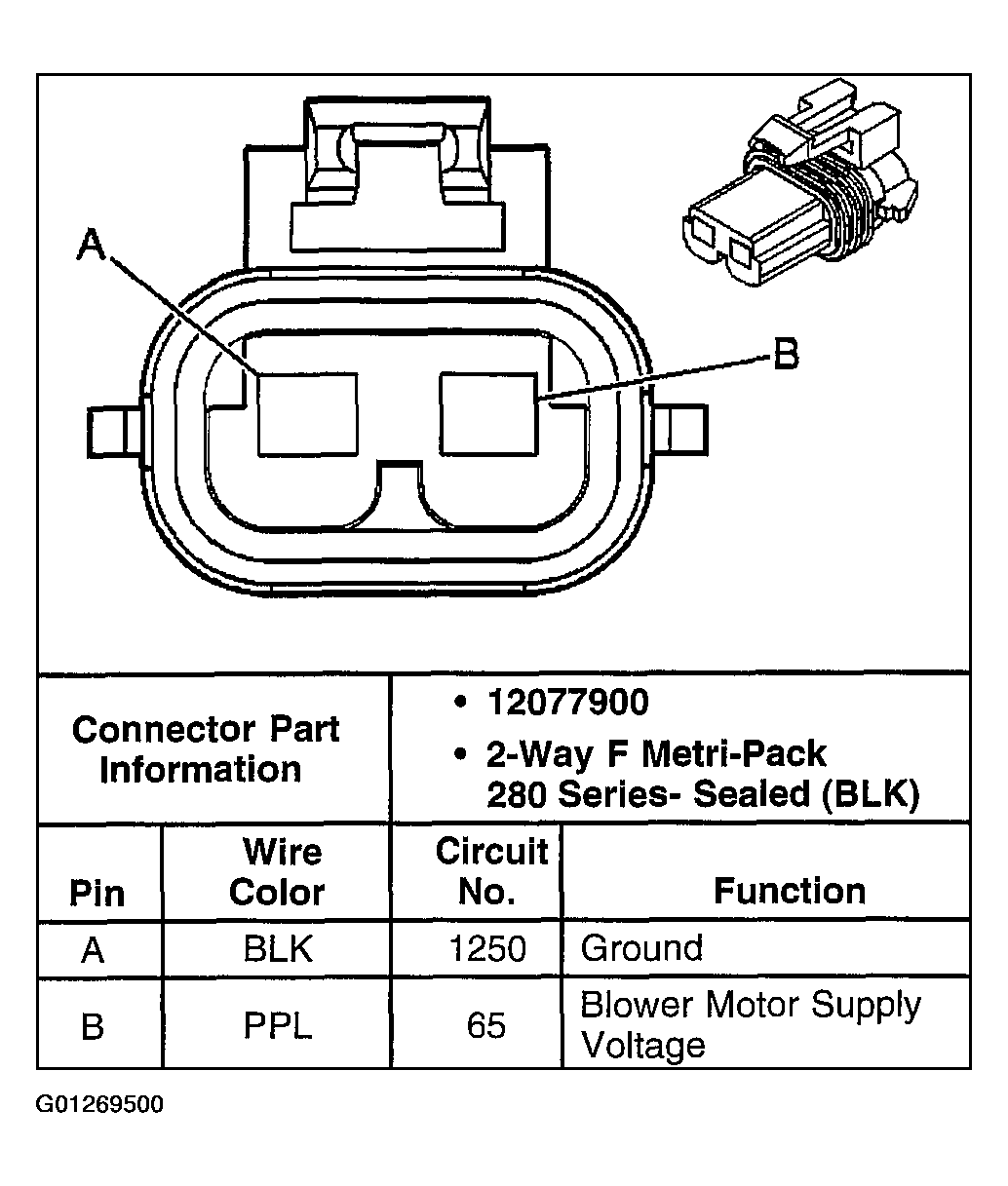

Fig 6: Blower Motor

G01269500

Courtesy of GENERAL MOTORS CORP.

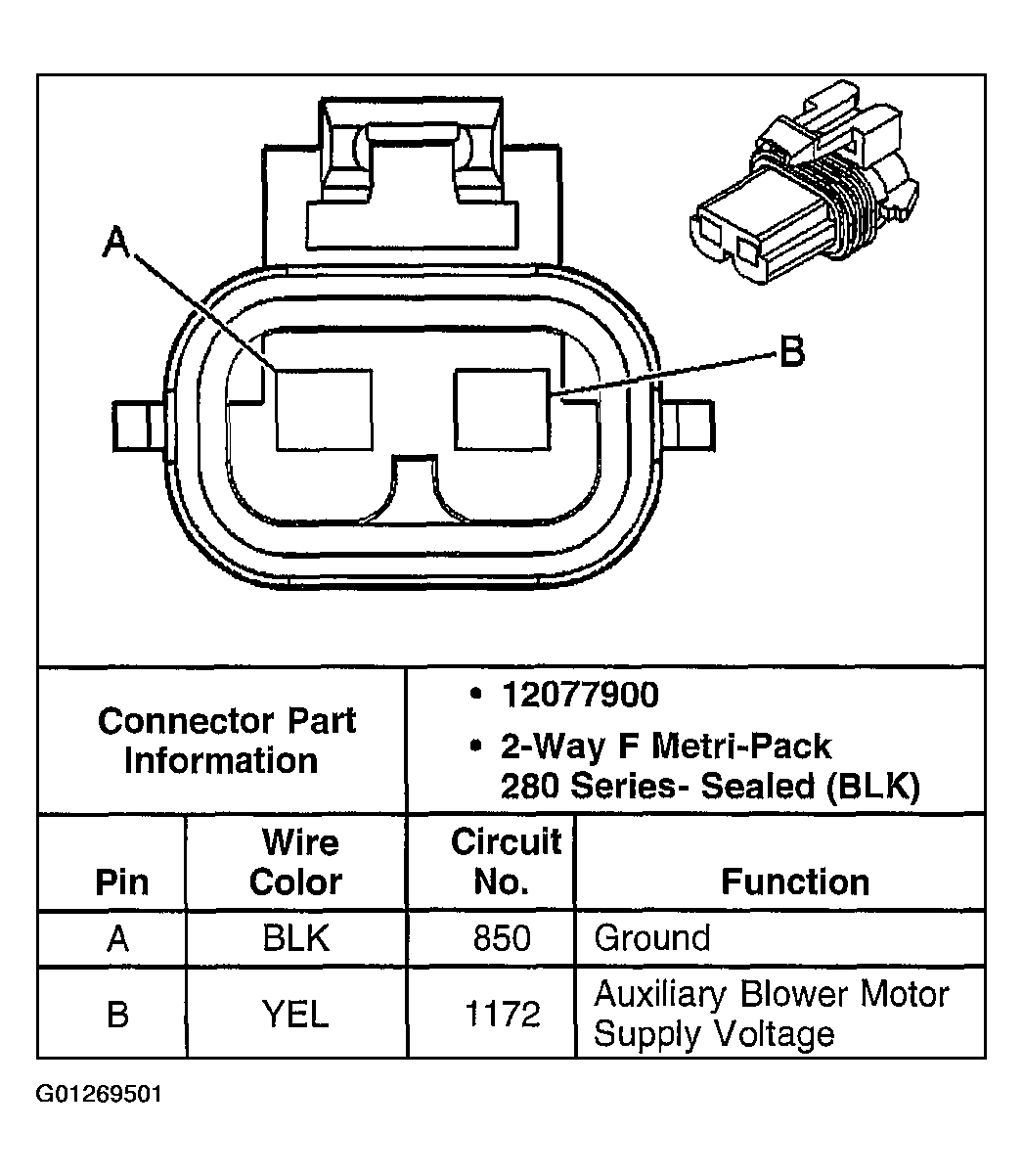

Fig 7: Blower Motor - Auxiliary (C36/C69)

G01269501

Courtesy of GENERAL MOTORS CORP.

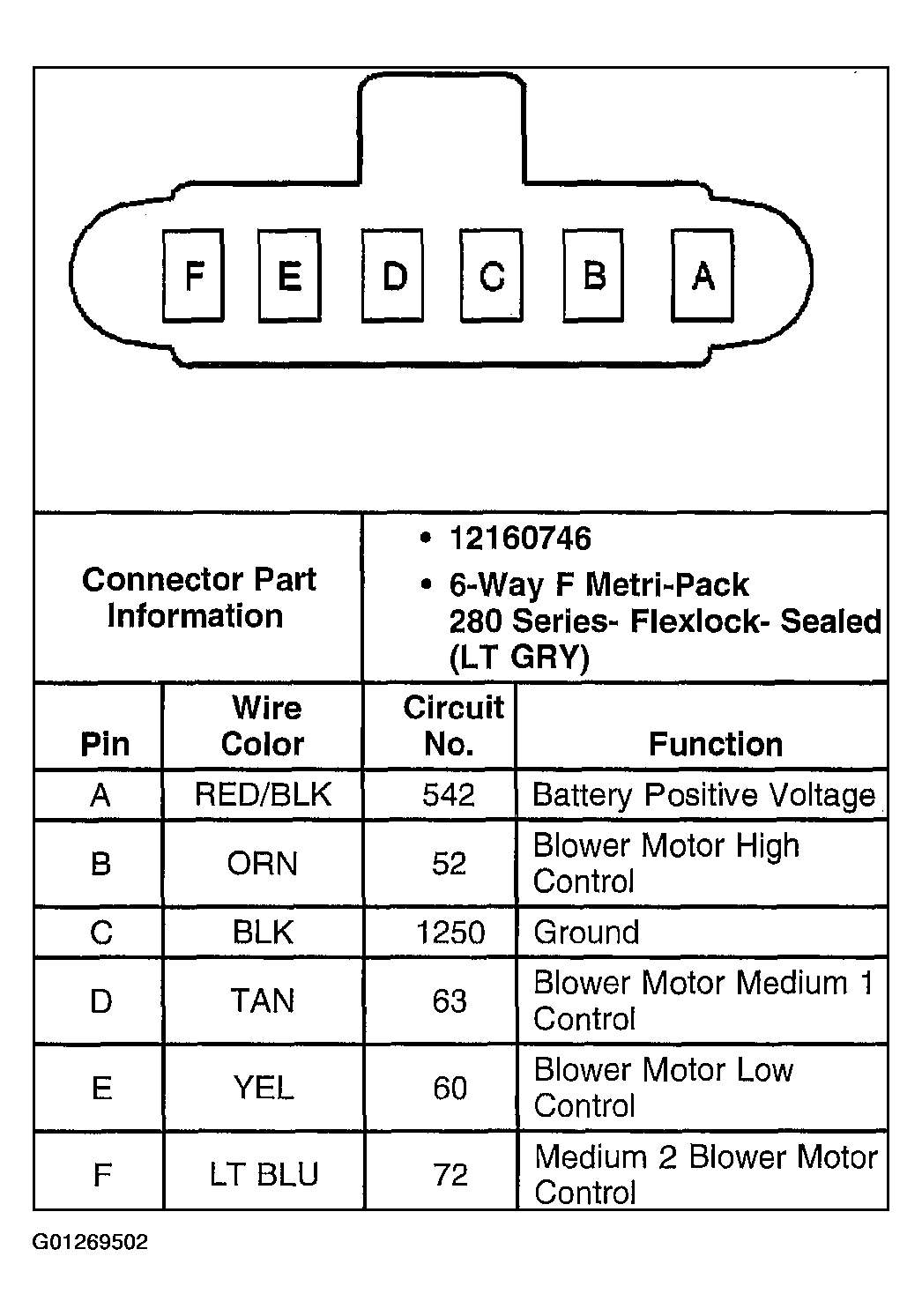

Fig 8: Blower Motor Resistor Assembly

G01269502

Courtesy of GENERAL MOTORS CORP.

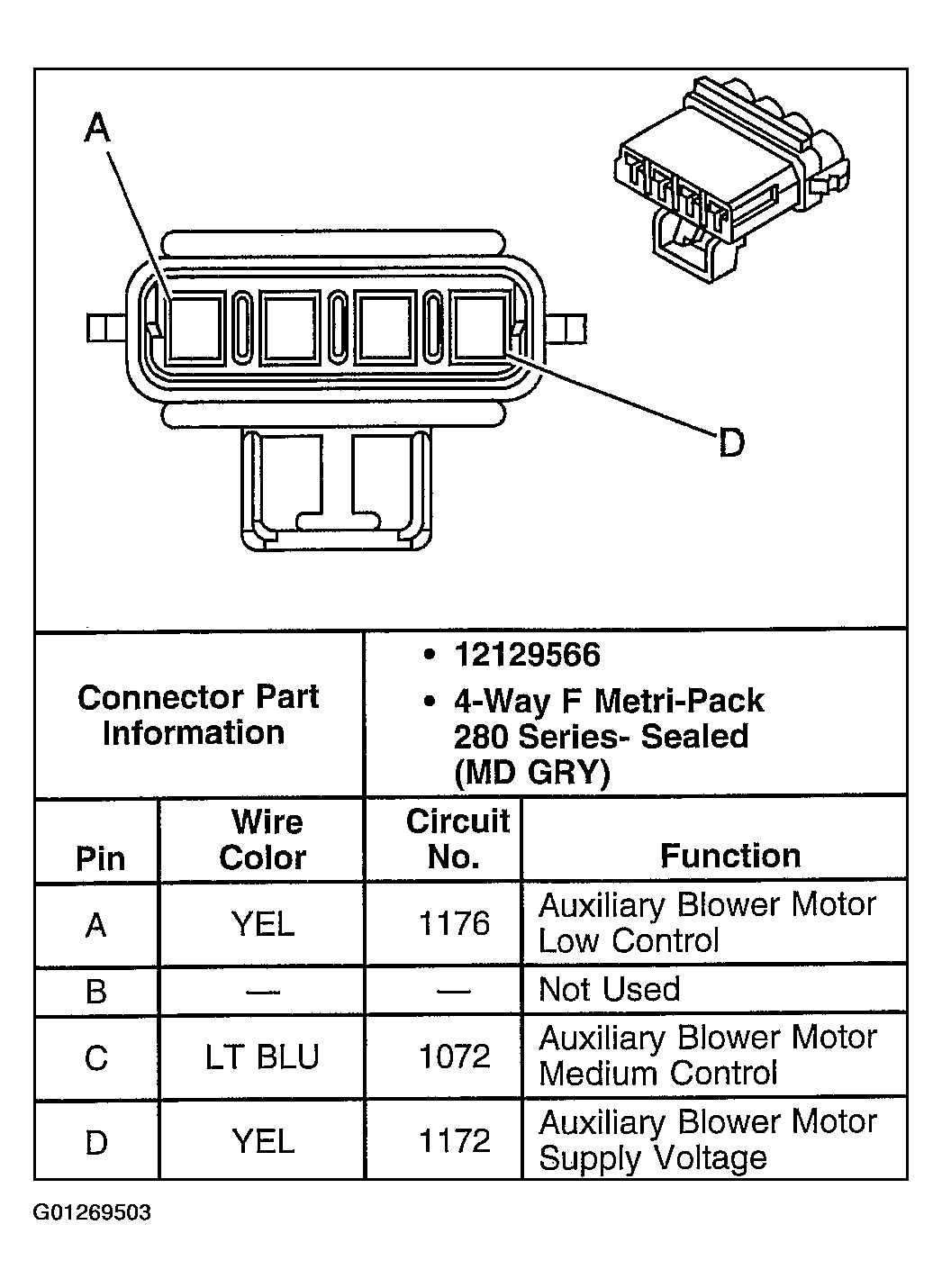

Fig 9: Blower Motor Resistor Assembly - Auxiliary (C36/C69)

G01269503

Courtesy of GENERAL MOTORS CORP.

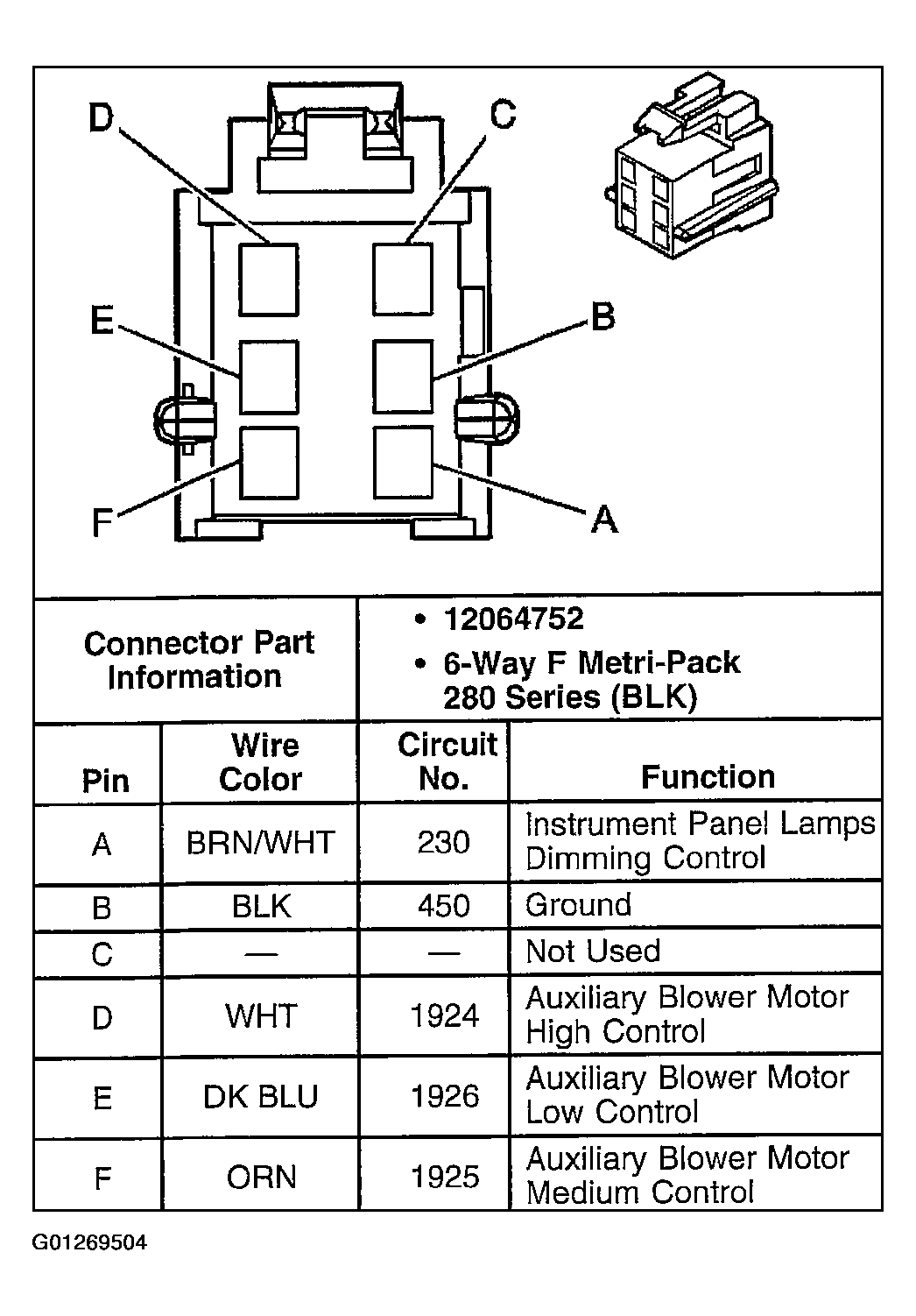

Fig 10: Blower Motor Switch - Auxiliary (C36)

G01269504

Courtesy of GENERAL MOTORS CORP.

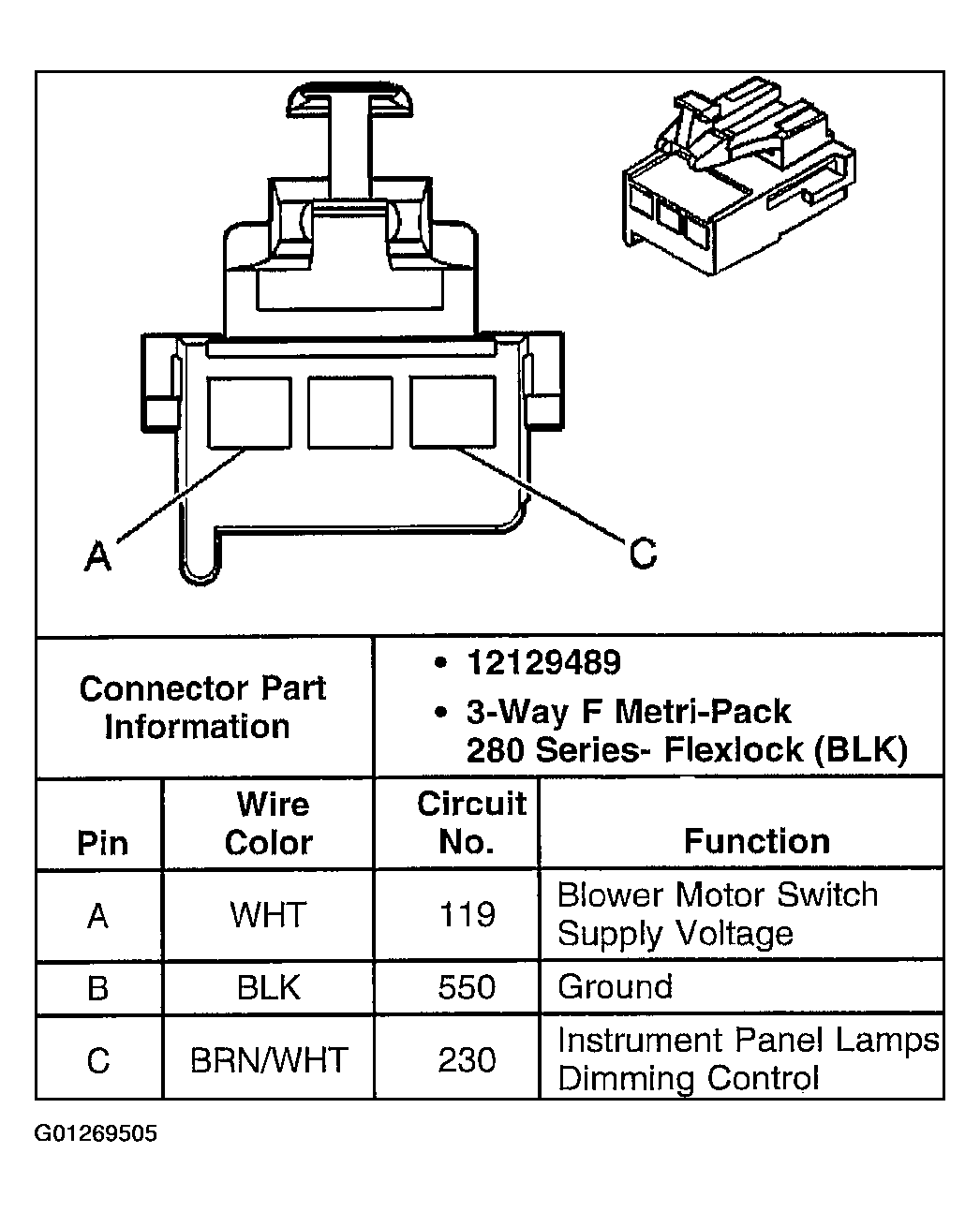

Fig 11: HVAC Control Assembly - C1

G01269505

Courtesy of GENERAL MOTORS CORP.

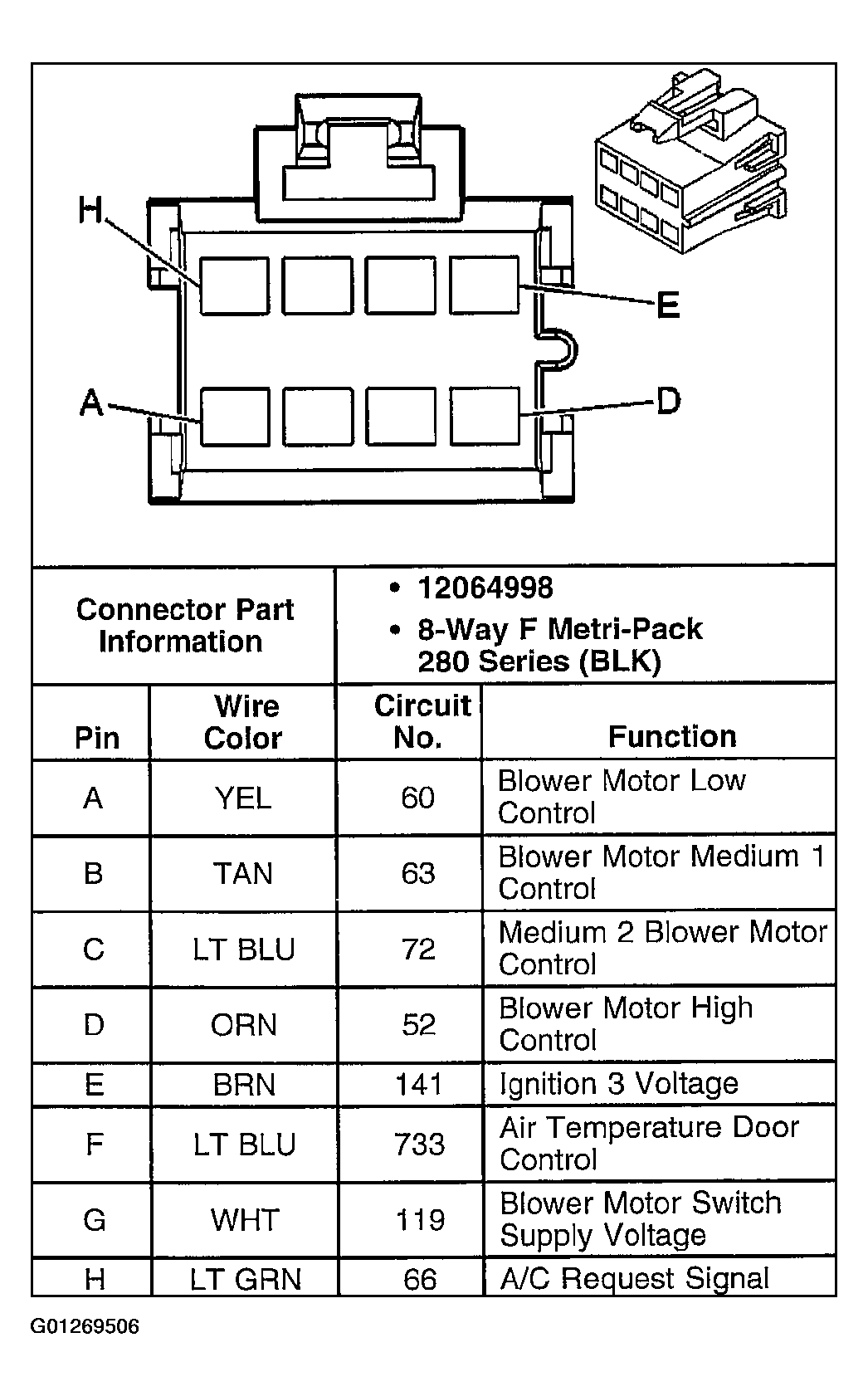

Fig 12: HVAC Control Assembly - C2

G01269506

Courtesy of GENERAL MOTORS CORP.

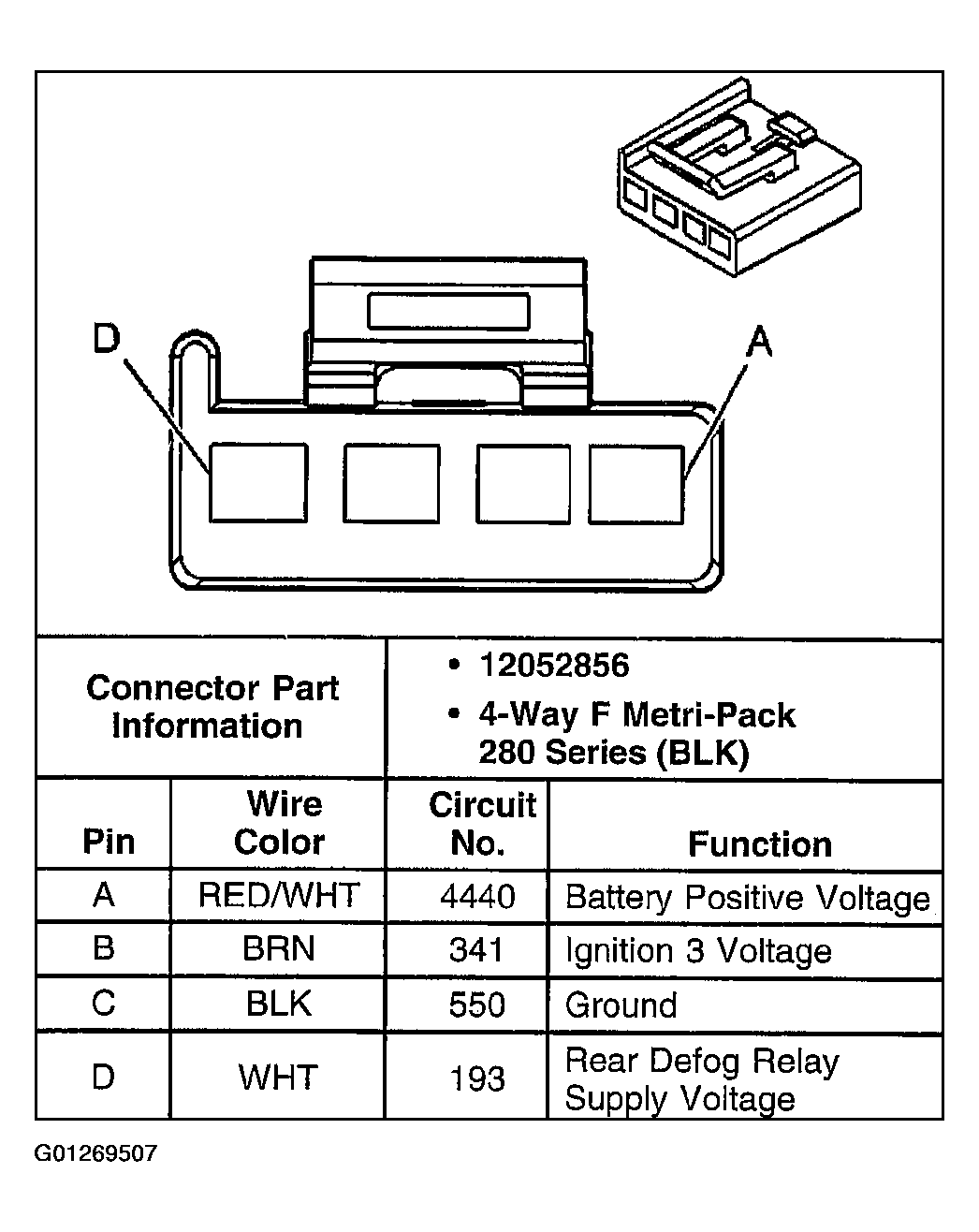

Fig 13: HVAC Control Assembly - C3 (C49/DE5/DE7)

G01269507

Courtesy of GENERAL MOTORS CORP.

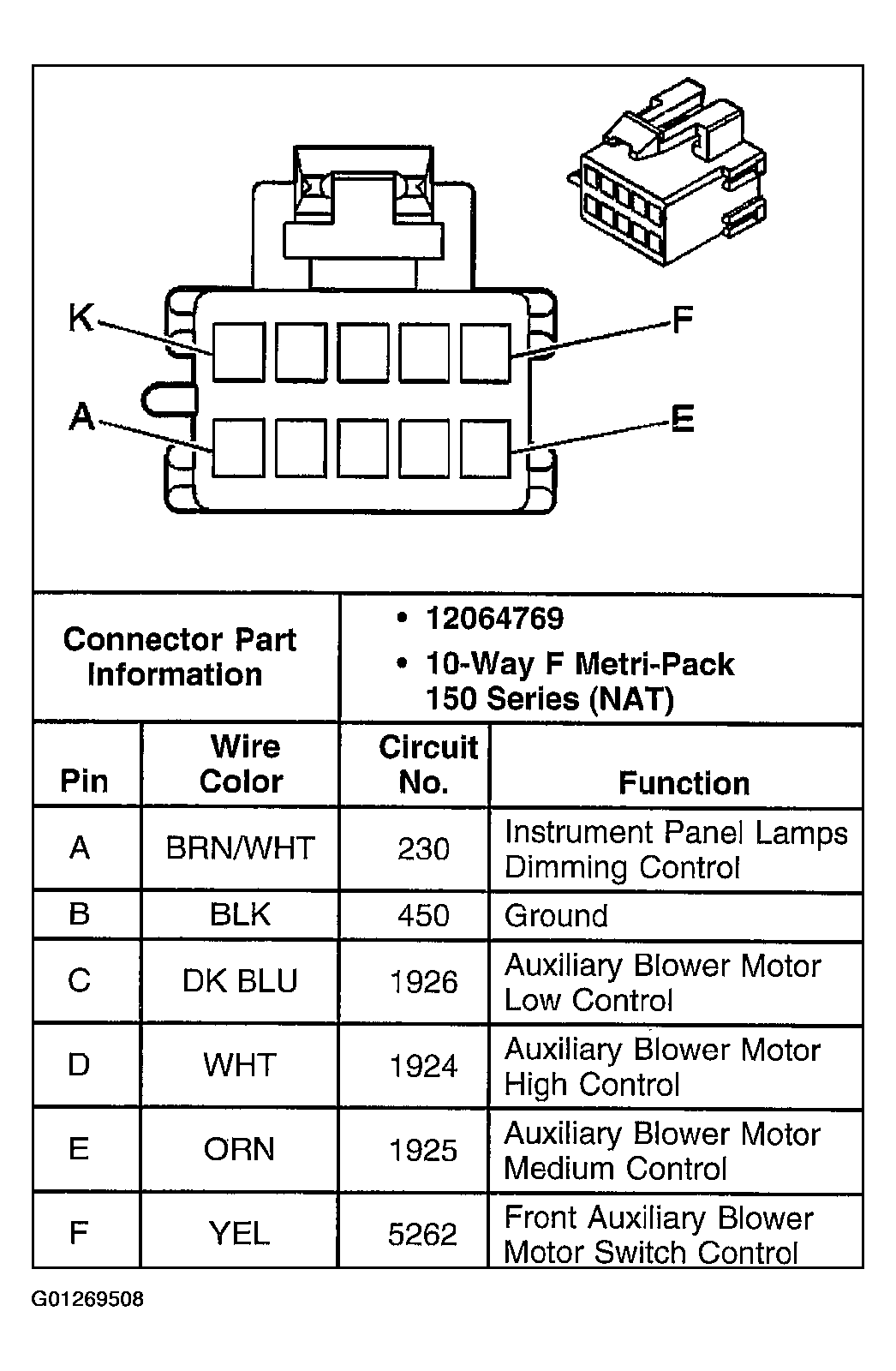

Fig 14: HVAC Control Assembly - Front Auxiliary (Rear Auxiliary Controls) 1 Of 2

G01269508

Courtesy of GENERAL MOTORS CORP.

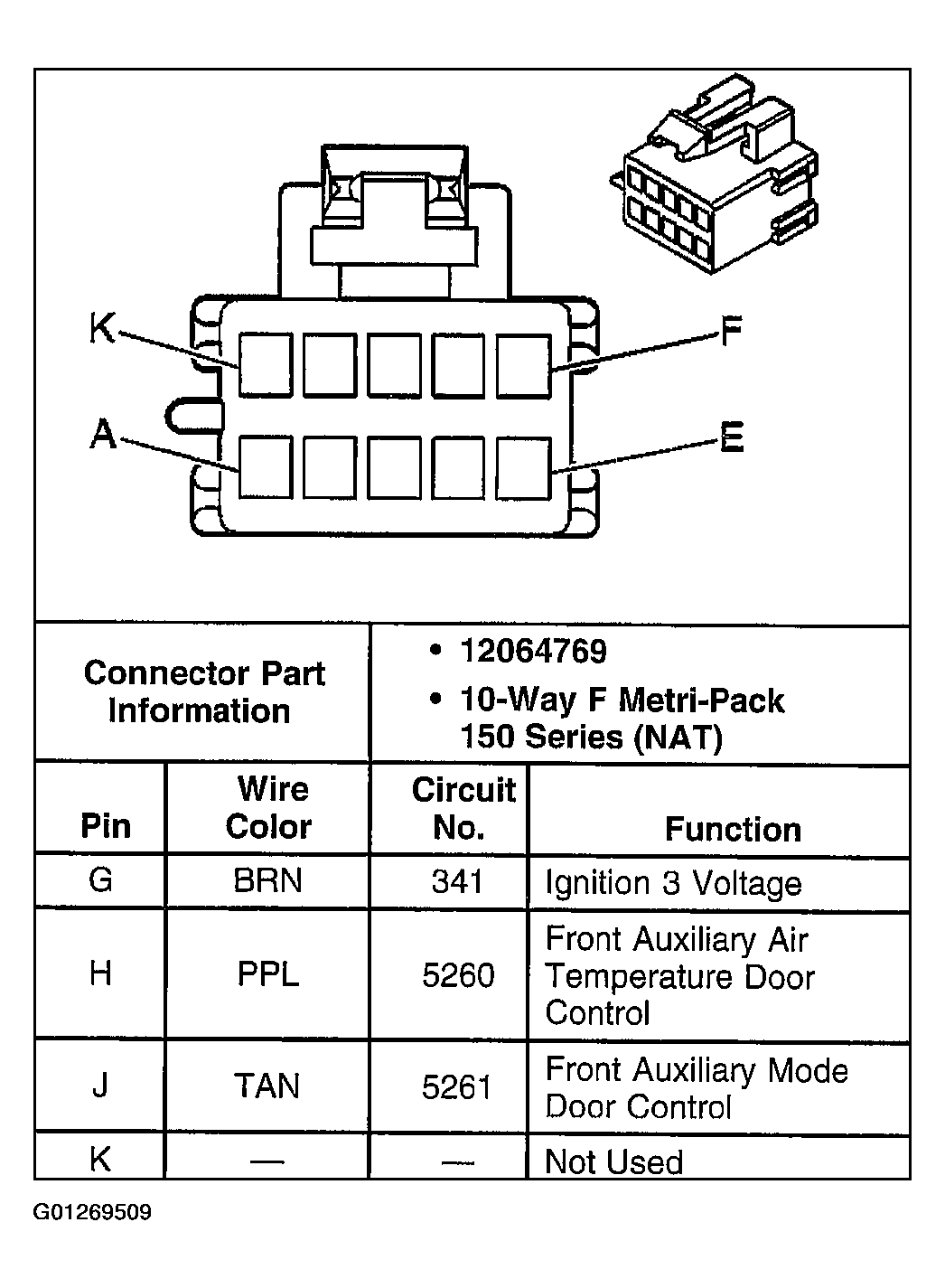

Fig 15: HVAC Control Assembly - Front Auxiliary (Rear Auxiliary Controls) 2 Of 2

G01269509

Courtesy of GENERAL MOTORS CORP.

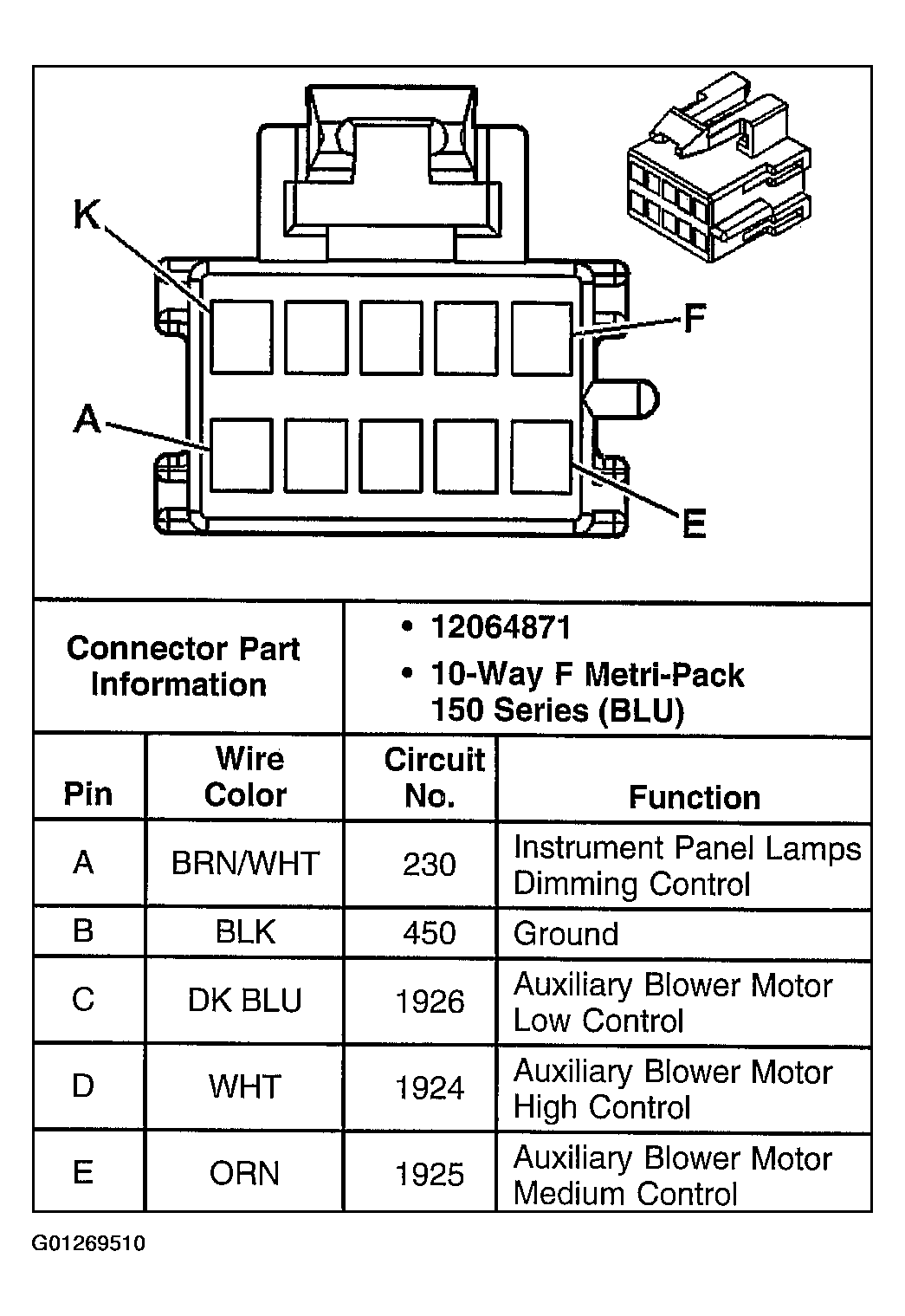

Fig 16: HVAC Control Assembly - Front Auxiliary (w/o Rear Auxiliary Controls) 1 Of 2

G01269510

Courtesy of GENERAL MOTORS CORP.

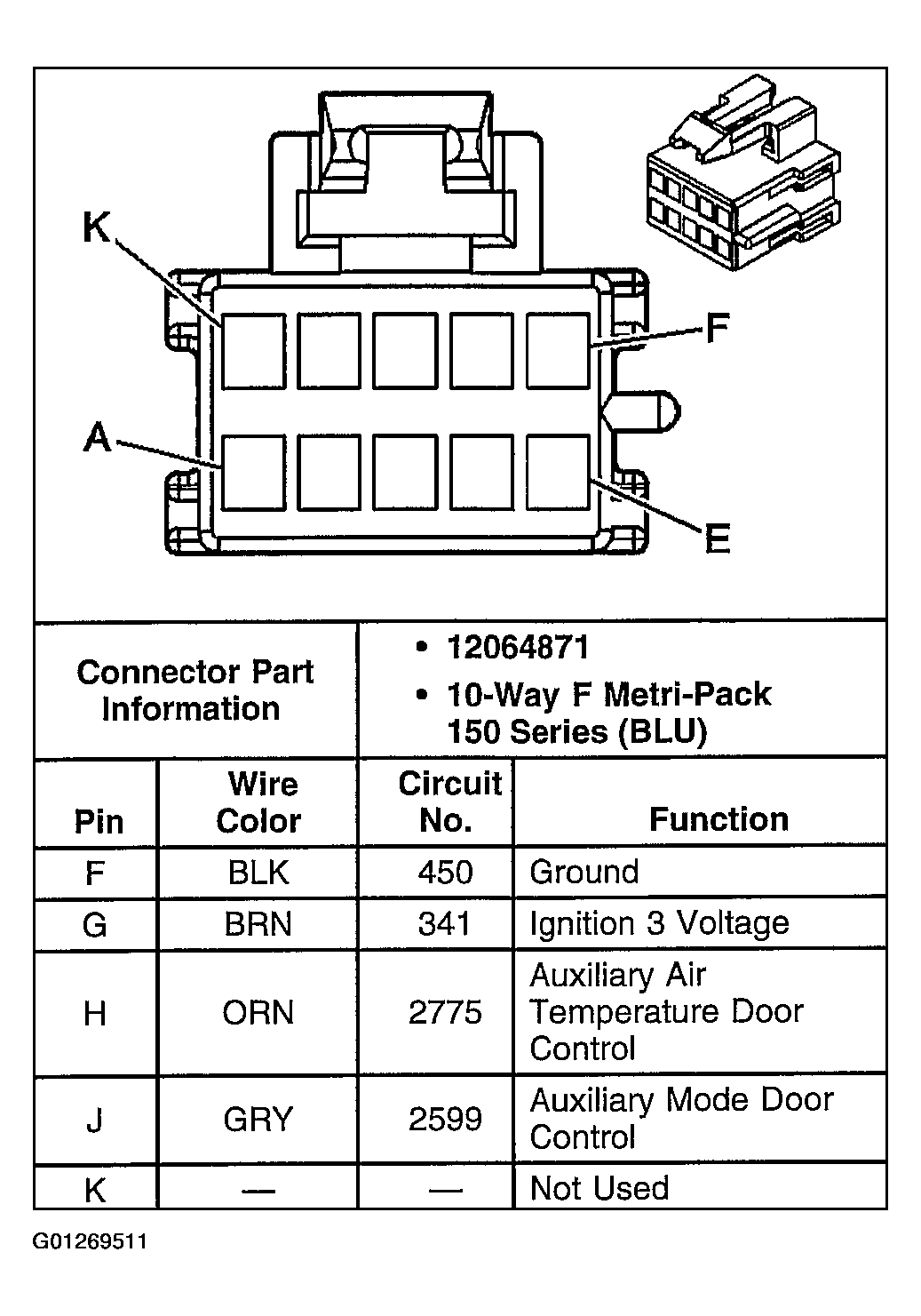

Fig 17: HVAC Control Assembly - Front Auxiliary (w/o Rear Auxiliary Controls) 2 Of 2

G01269511

Courtesy of GENERAL MOTORS CORP.

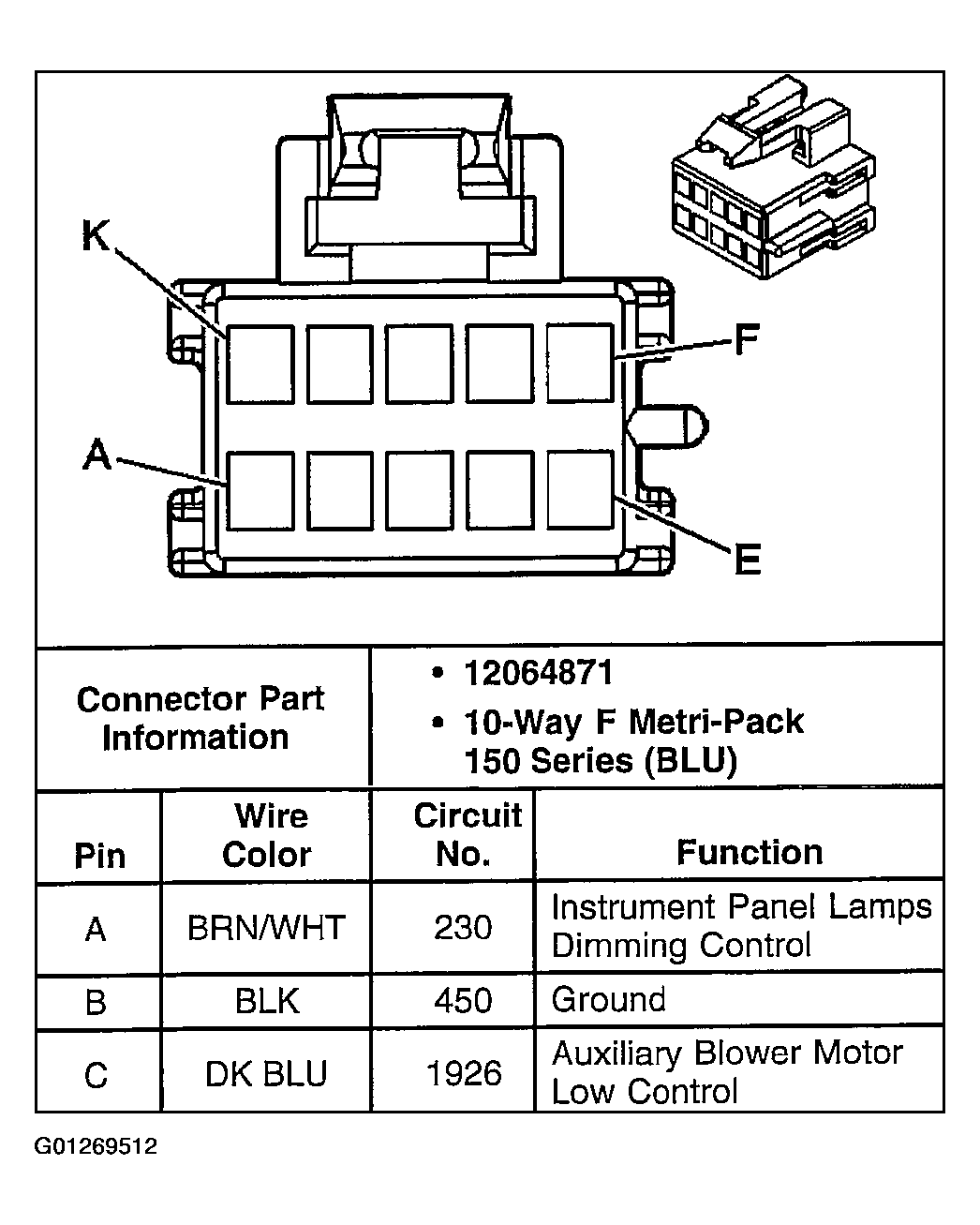

Fig 18: HVAC Control Assembly - Rear Auxiliary (Rear Auxiliary Controls) 1 Of 2

G01269512

Courtesy of GENERAL MOTORS CORP.

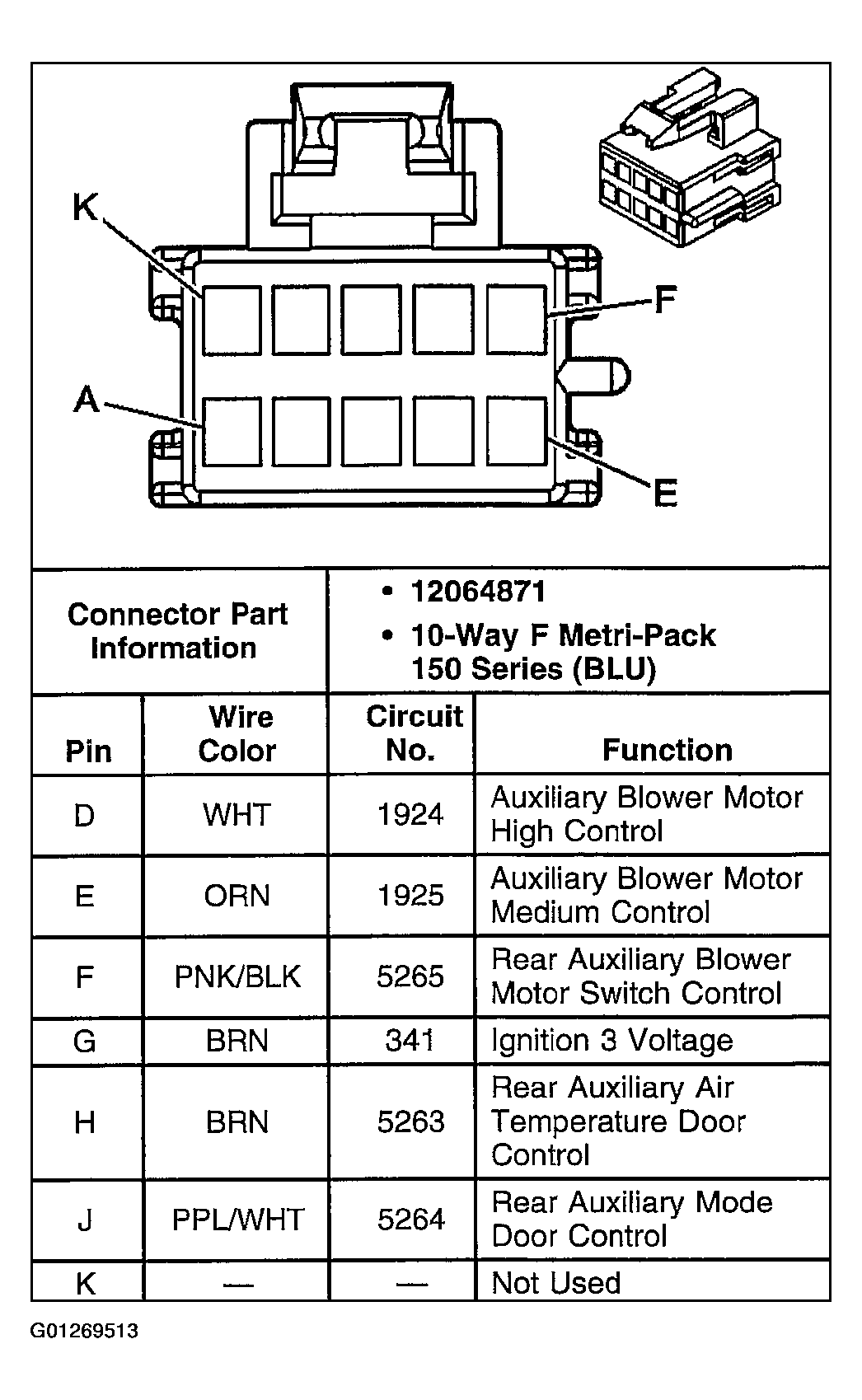

Fig 19: HVAC Control Assembly - Rear Auxiliary (Rear Auxiliary Controls) 2 Of 2

G01269513

Courtesy of GENERAL MOTORS CORP.

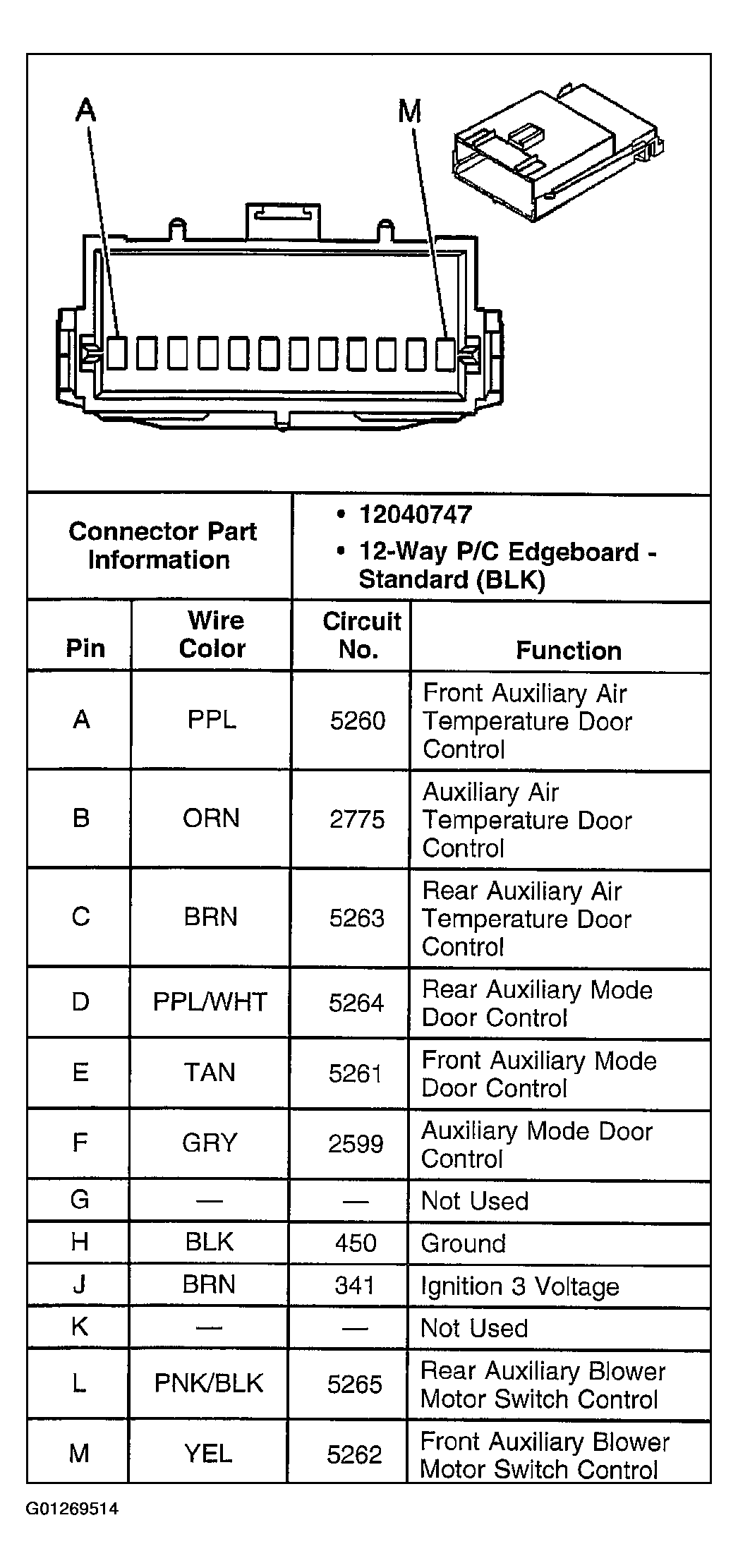

Fig 20: HVAC Control Processor - Auxiliary (Rear Auxiliary Controls)

G01269514

Courtesy of GENERAL MOTORS CORP.

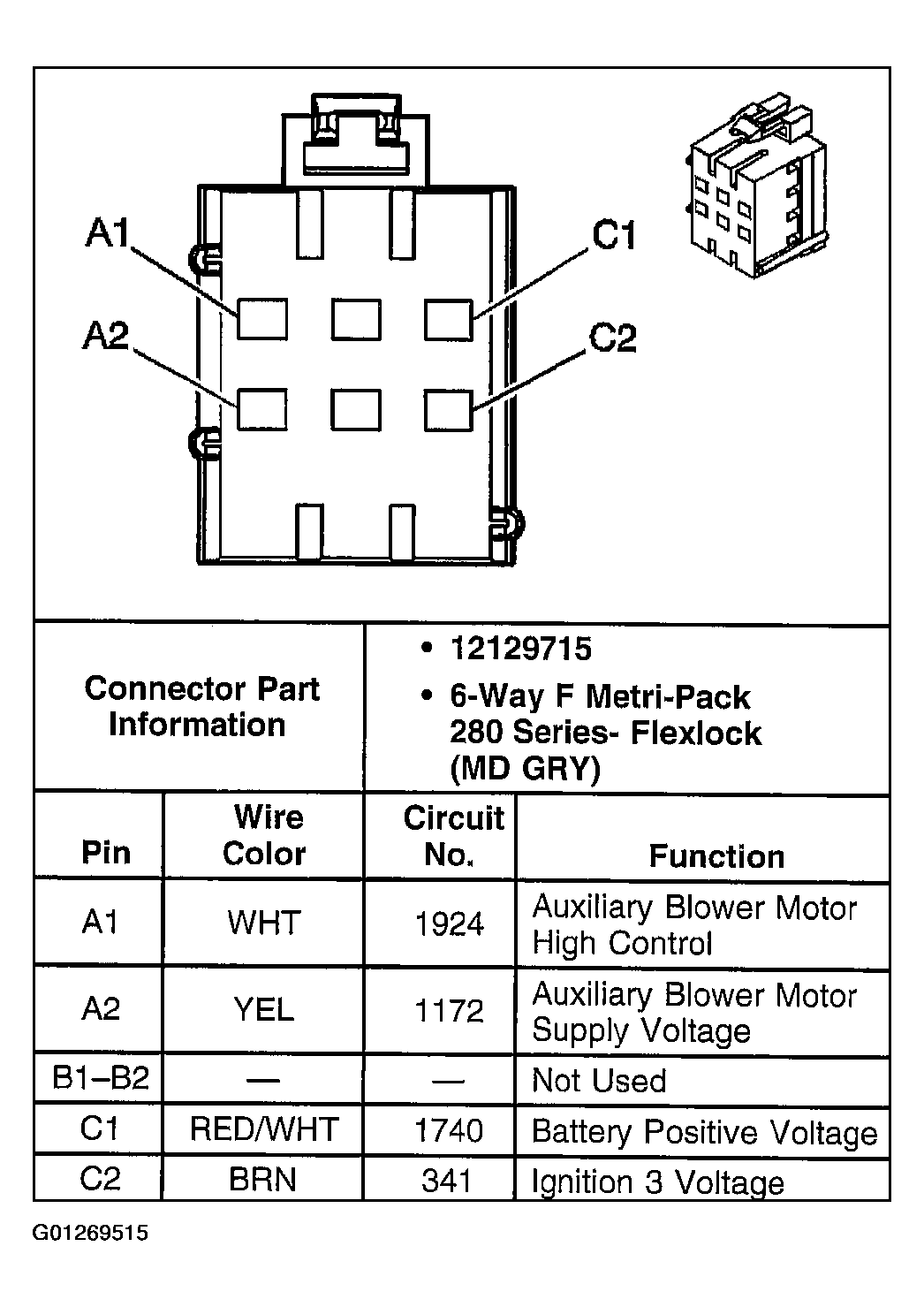

Fig 21: High Speed Blower Motor Relay - Auxiliary (C36/C69)

G01269515

Courtesy of GENERAL MOTORS CORP.

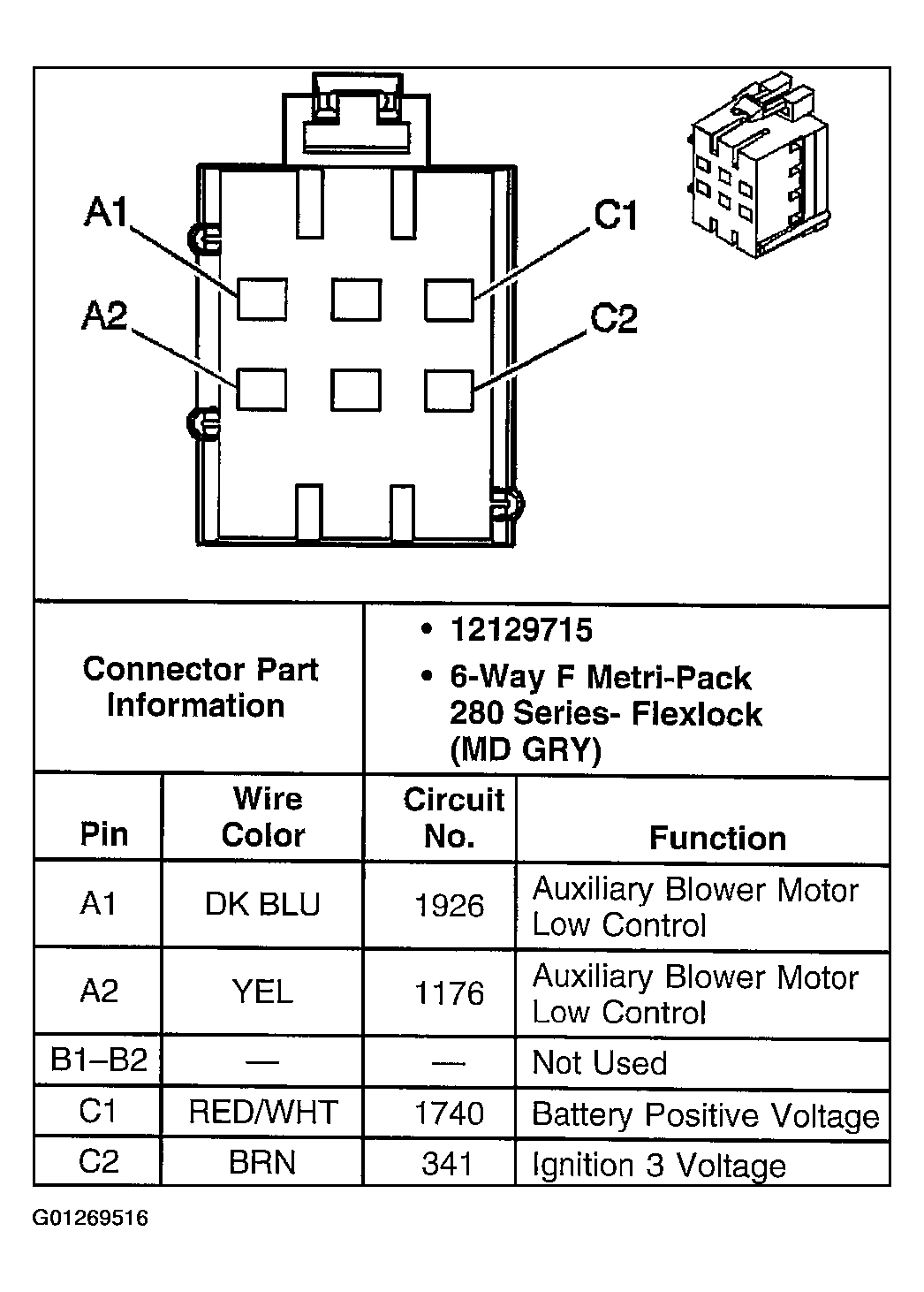

Fig 22: Low Speed Blower Motor Relay - Auxiliary (C36/C69)

G01269516

Courtesy of GENERAL MOTORS CORP.

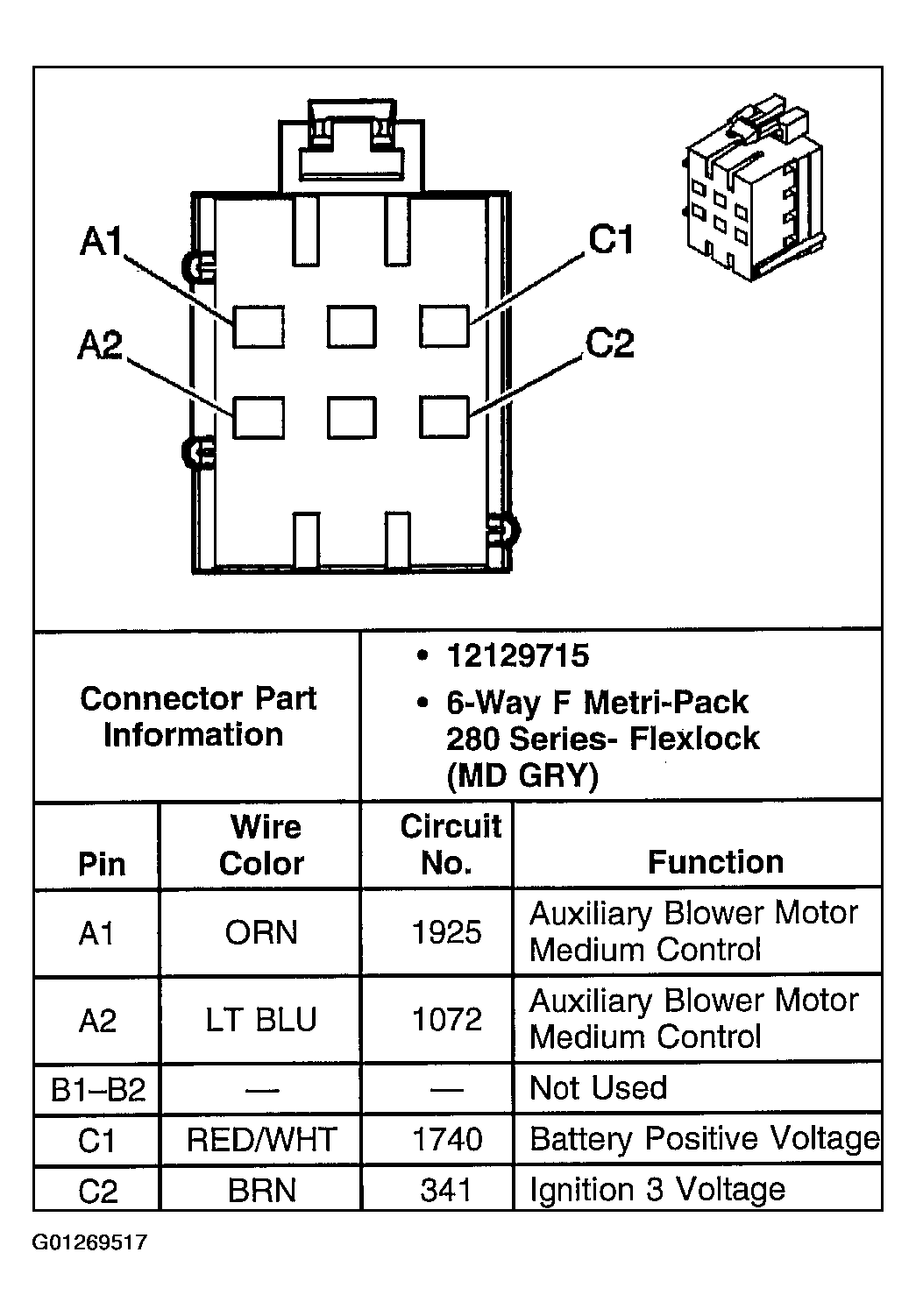

Fig 23: Med Speed Blower Motor Relay - Auxiliary (C36/C69)

G01269517

Courtesy of GENERAL MOTORS CORP.

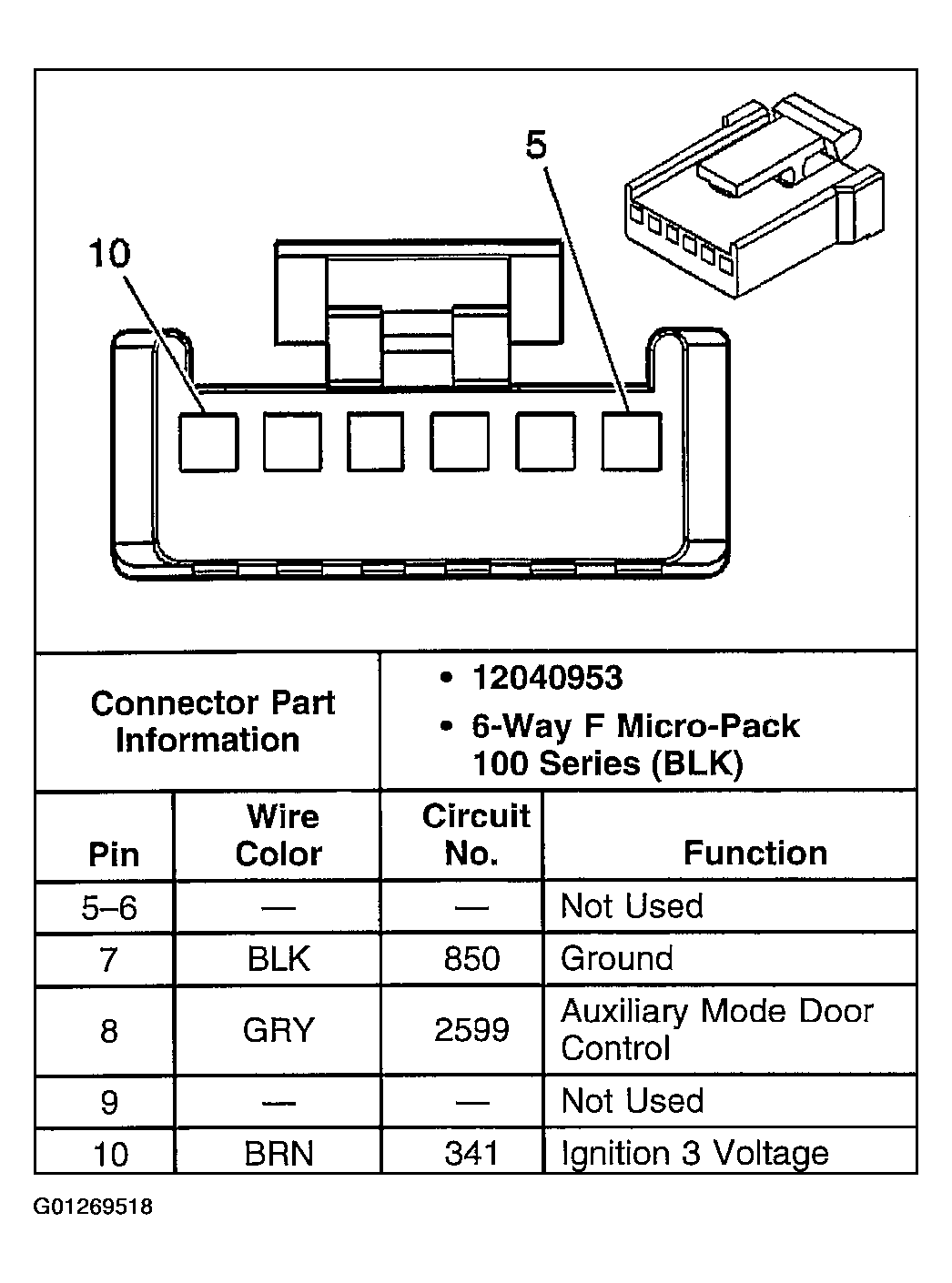

Fig 24: Mode Actuator - Auxiliary (C69)

G01269518

Courtesy of GENERAL MOTORS CORP.
