Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Support the vehicle with suitable safety stands.
  2. Remove the wheel nuts from the tire and wheel.
  3. Mark the location of the tire and wheel to the hub assembly.
  4. Remove the tire and wheel from the vehicle.
  5. Clean the wheel nuts, studs and the wheel and rotor mounting surfaces.

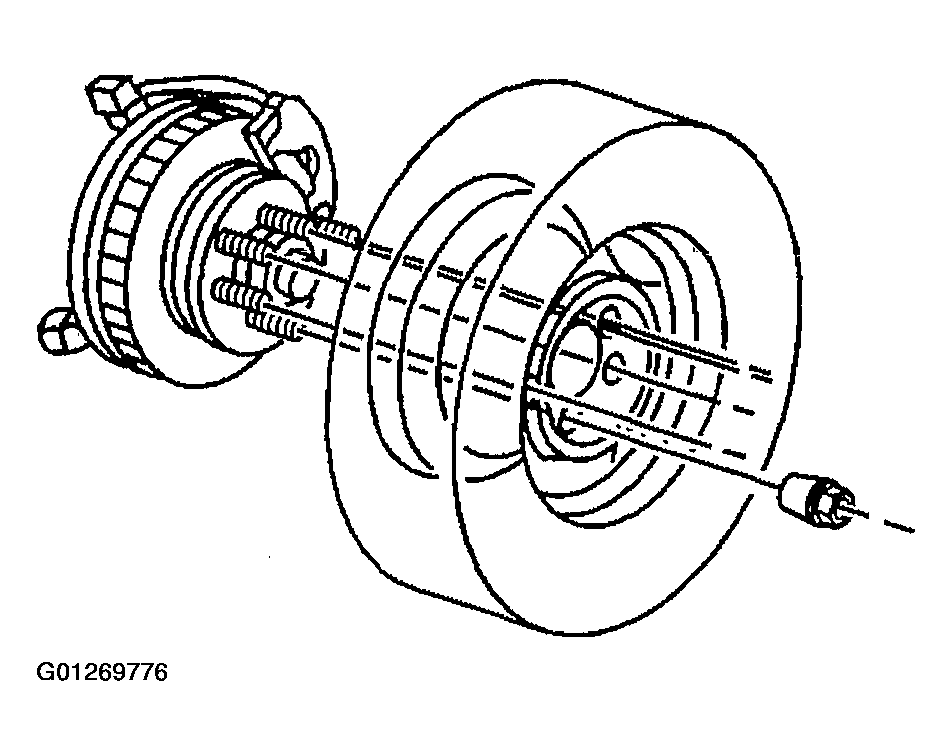

    Fig 1: Removing Wheel Nuts From Tire & Wheel
    G01269776Courtesy of GENERAL MOTORS CORP.
