Fuel Filter Assembly Removal

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Fuel Hoses At Fuel Filter

Courtesy of GENERAL MOTORS CORP.

Remove the fuel hoses.

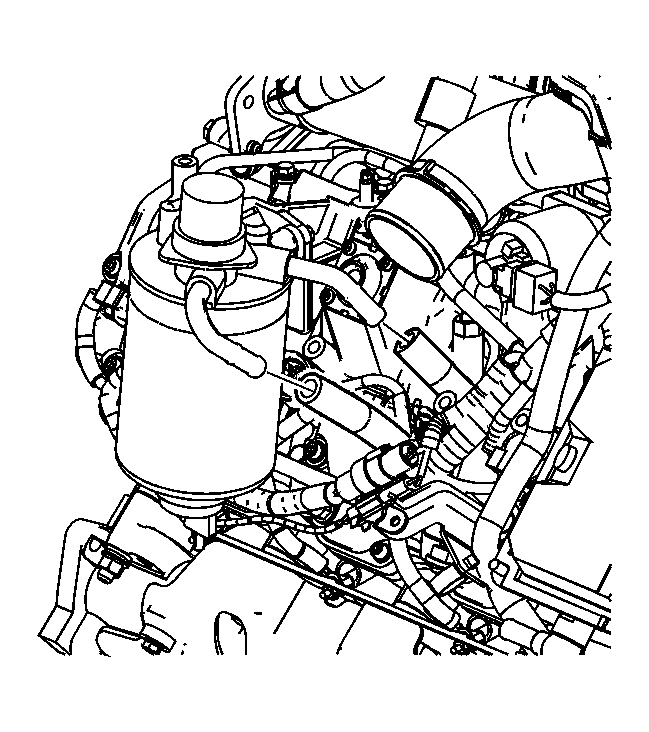

Fig 2: View Of Fuel Filter Assembly Connectors

Courtesy of GENERAL MOTORS CORP.

Disconnect the fuel filter assembly connectors.

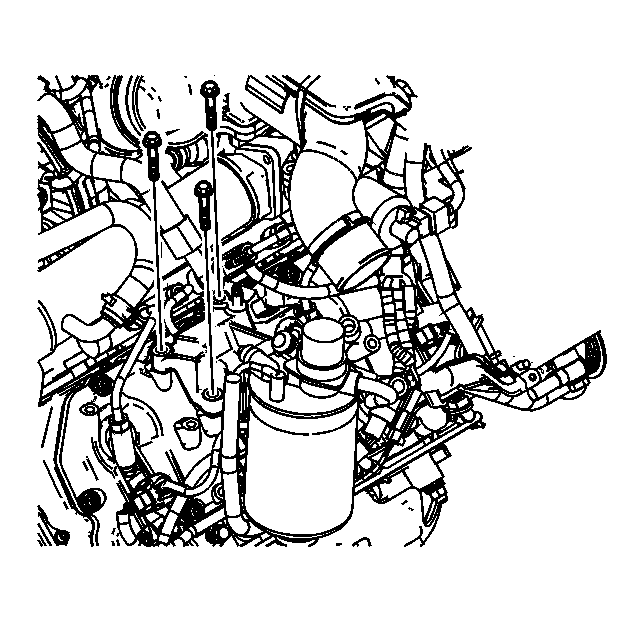

Fig 3: Identifying Fuel Filter Bracket Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the fuel filter bracket bolts.

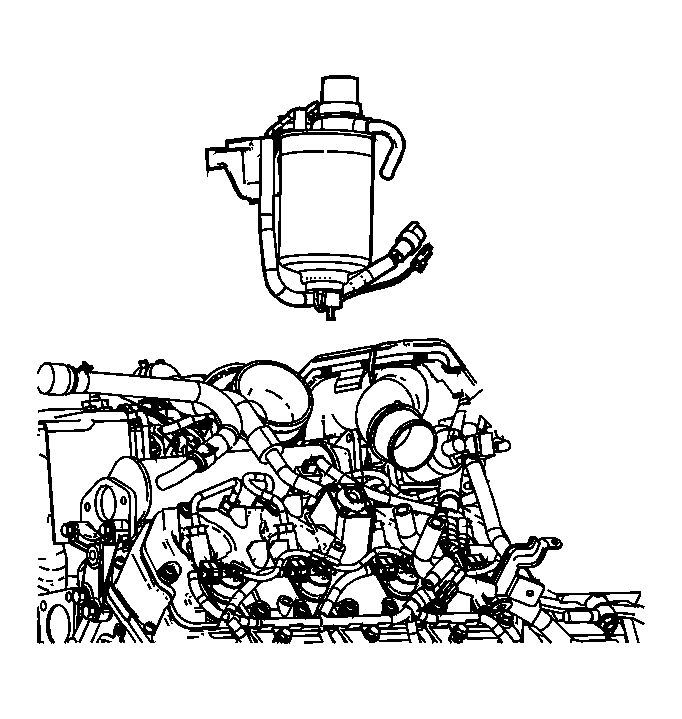

Fig 4: Identifying Fuel Filter Assembly

Courtesy of GENERAL MOTORS CORP.

Remove the fuel filter assembly.
