1-2-3-4 Clutch Piston Installation
WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

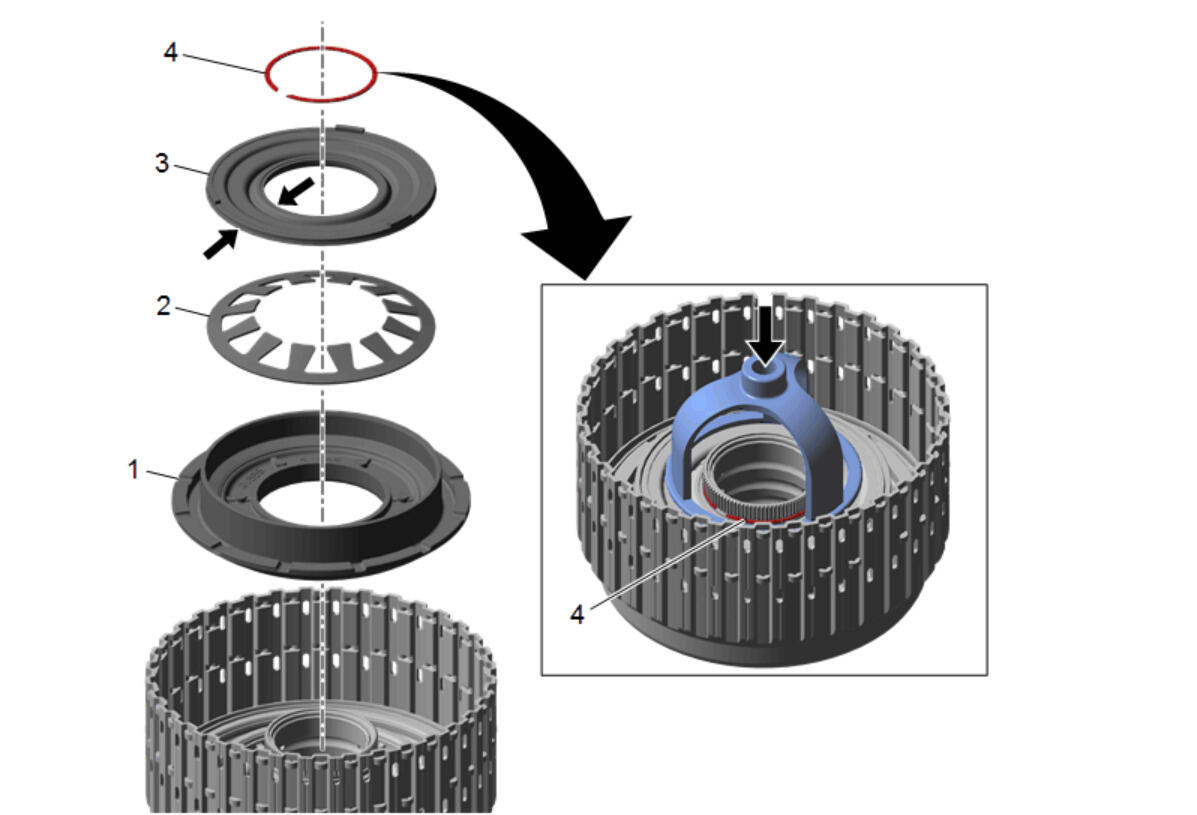

| Callout | Component Name |
|---|---|
| 1 | 1-2-3-4 Clutch Piston |
| 2 | 1-2-3-4 Clutch Spring
CAUTION:
Ensure the clutch spring is centered on the piston with the tabs facing up. Failure to do so may cause damage to the clutch assembly.
|
| 3 | 1-2-3-4 Clutch Piston Dam Assembly Tip: Lubricate the inner and outer surfaces of the dam assembly with ATF in order to ease installation into the piston. Install the tabs facing up. |
| 4 | 1-2-3-4 Clutch Piston Dam Retaining Ring
CAUTION:
Use care when compressing the 1-2-3-4 clutch spring and dam assembly. Compressing the dam assembly too much may damage it.
CAUTION:
Refer to Retaining Ring Reuse Caution
. Special Tool: J 38734: Intermediate Spring Compressor Adapter For equivalent regional tools, refer to Special Tools . |
