Front Seat Cushion Cover and Pad Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

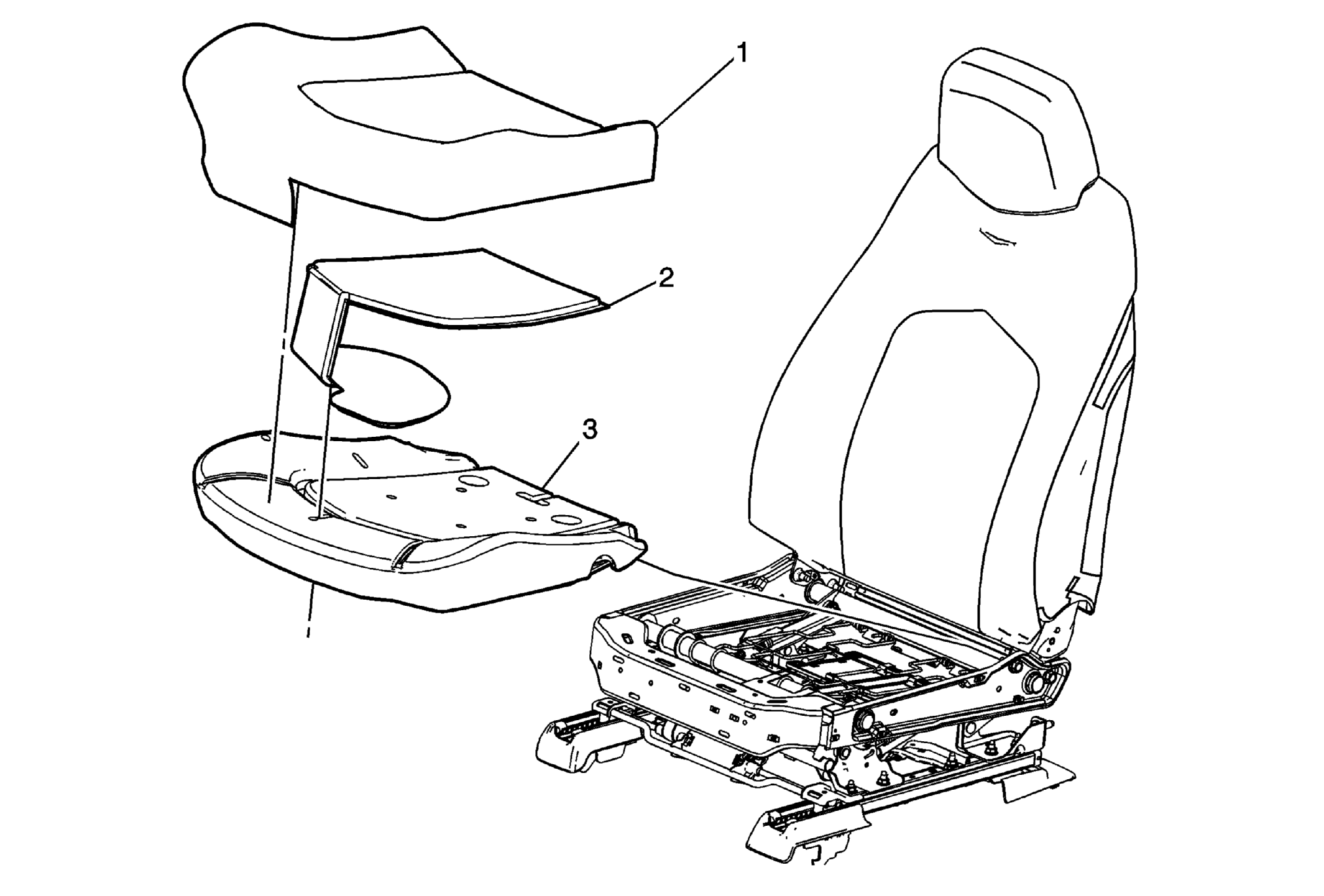

Fig 1: Front Seat Cushion Cover and Pad Replacement
GM1969545Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Remove the front seat. Refer to Front Seat Replacement - Bucket .
  2. Remove the front seat adjuster switch bezel. Refer to Driver Seat and Passenger Seat Adjuster Switch Bezel Replacement .
  3. Remove the front seat inner recliner finish cover. Refer to Driver Seat and Passenger Seat Inner Recliner Finish Cover Replacement .
  4. Remove the front seat recliner handle bezel bracket. Refer to Driver Seat and Passenger Seat Recliner Handle Bezel Bracket Replacement
1 Seat Cushion Cover

Procedure

  1. Disengage the j-channel retainers from the seat cushion frame.
  2. Disconnect the blower from the seat cushion pad.
  3. Disconnect the electrical connectors that attach to the seat cushion, if equipped.
  4. Remove the seat cushion cover and pad from the seat cushion frame as an assembly.
  5. Pull the cover away from the pad to disengage the retainers
2 Front Seat Cushion Heater, If Equipped
Procedure:
Remove the seat cushion heater from the seat cushion pad by sliding it through the seat cushion pad.
3 Front Seat Cushion Pad
