Torque Converter End Play Inspection: Inspection
WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- Position the torque converter (3) on the work table so that the pump hub is facing up.
- Install J 43764 (2) into the torque converter hub. See Special Tools .
- Hold J 43764 (2) in the converter hub and rotate the center screw until J 43764 is locked into the converter hub. See Special Tools . Do not over tighten J 43764 . See Special Tools .

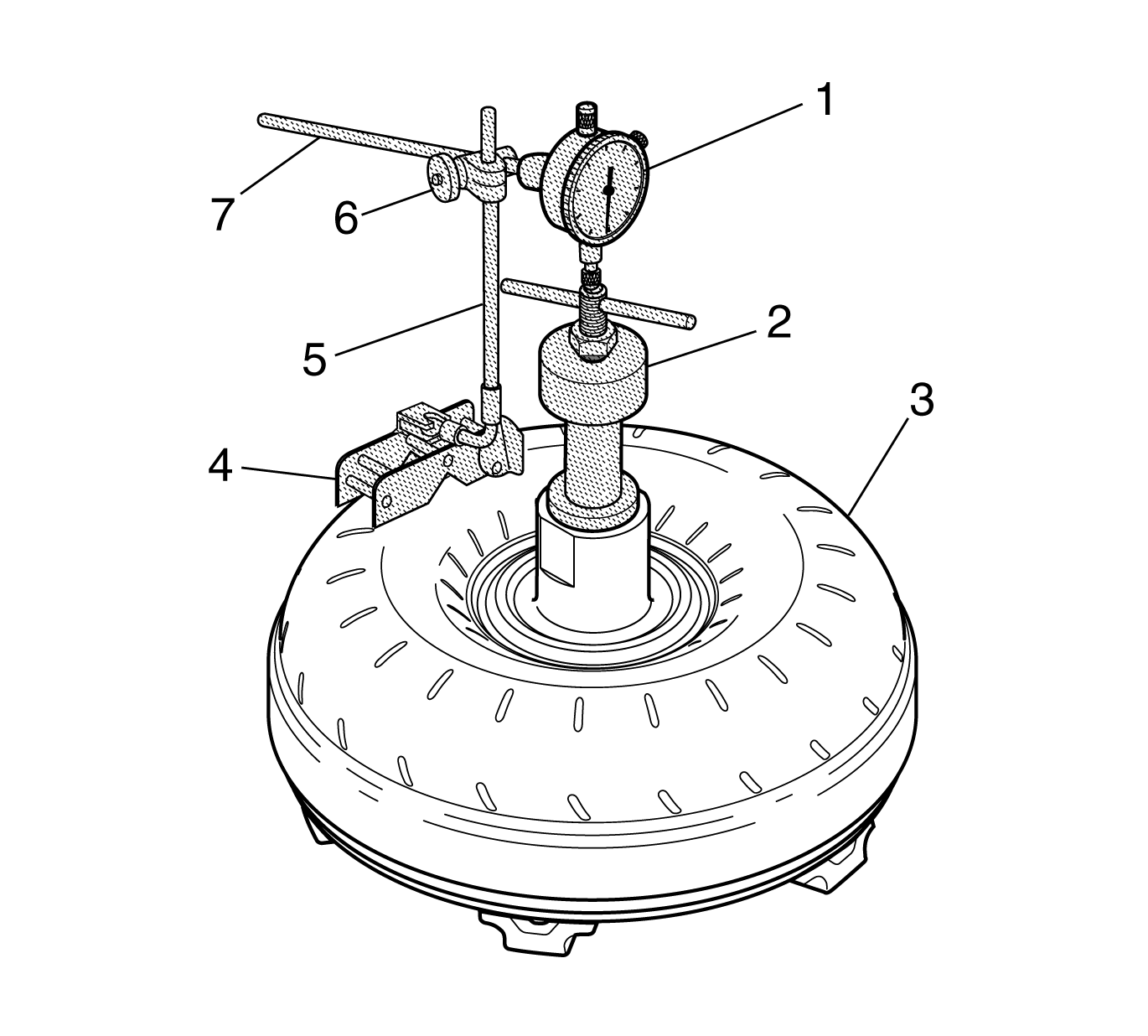

- Assemble the following tools and install the tools onto the torque converter as shown:
- J 5959 (1). See Special Tools .
- Extension rod (7)
- Clamp (6)
- J 7872 (4)
- Adaptor rod (5)
- Adjust the clamp (6) so that the dial indicator (1) firmly contacts the top of J 43764 (2). See Special Tools .
- Set the J 5959 (1) to read zero. See Special Tools .
- Lift J 43764 (2) upward as far as possible. See Special Tools .
- Read the J 5959 (1) to determine torque converter end play. See Special Tools .
- Compare the measured end play with the torque converter end play specifications. Refer to End Play Specifications .
- If the measured torque converter end play exceeds the value listed, replace the torque converter.
- Remove the J tools from the converter housing.
