Automatic Transmission Controls Schematics

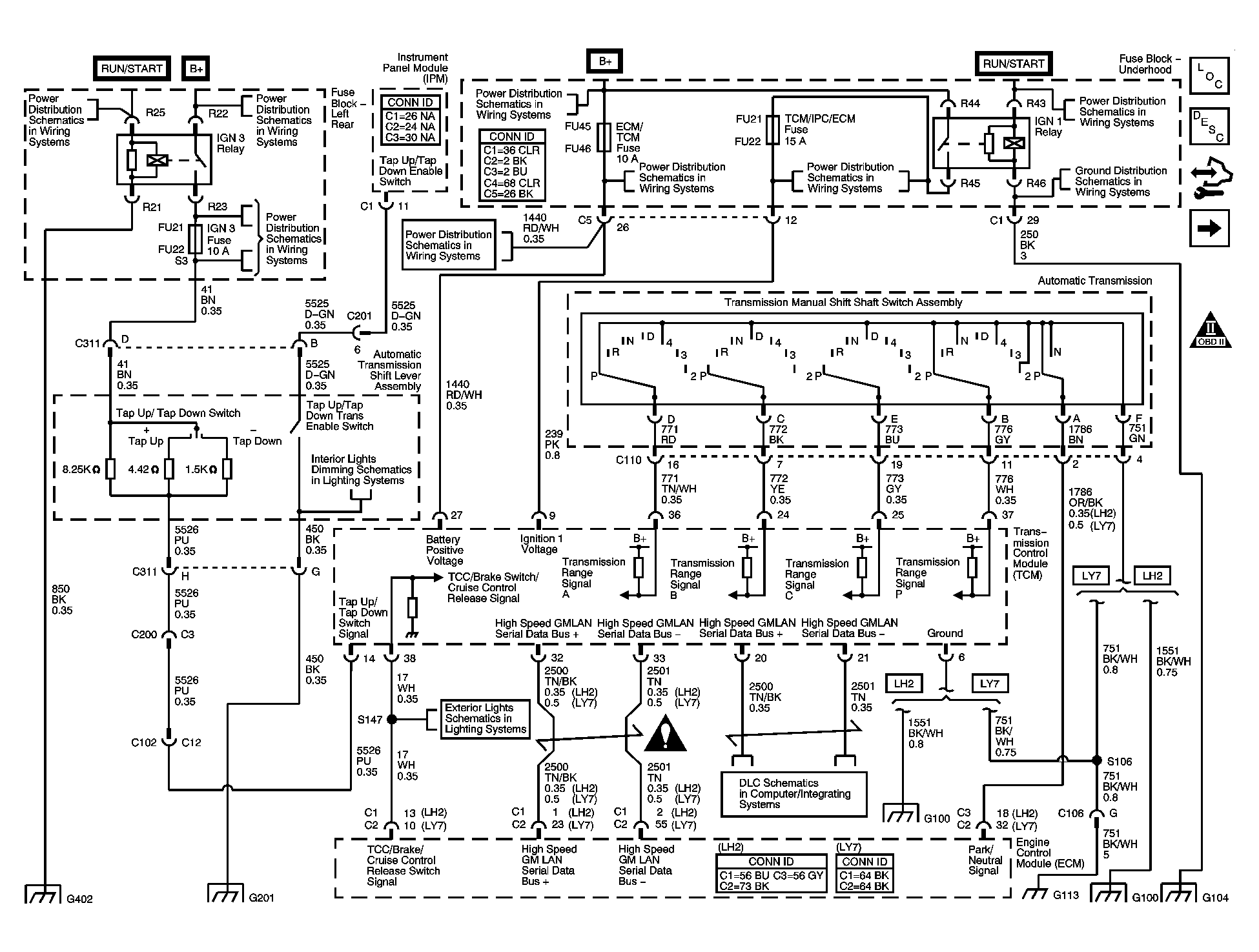

Fig 1: TCM Power, Grounds and DLC Schematics
GM1349921Courtesy of GENERAL MOTORS CORP.

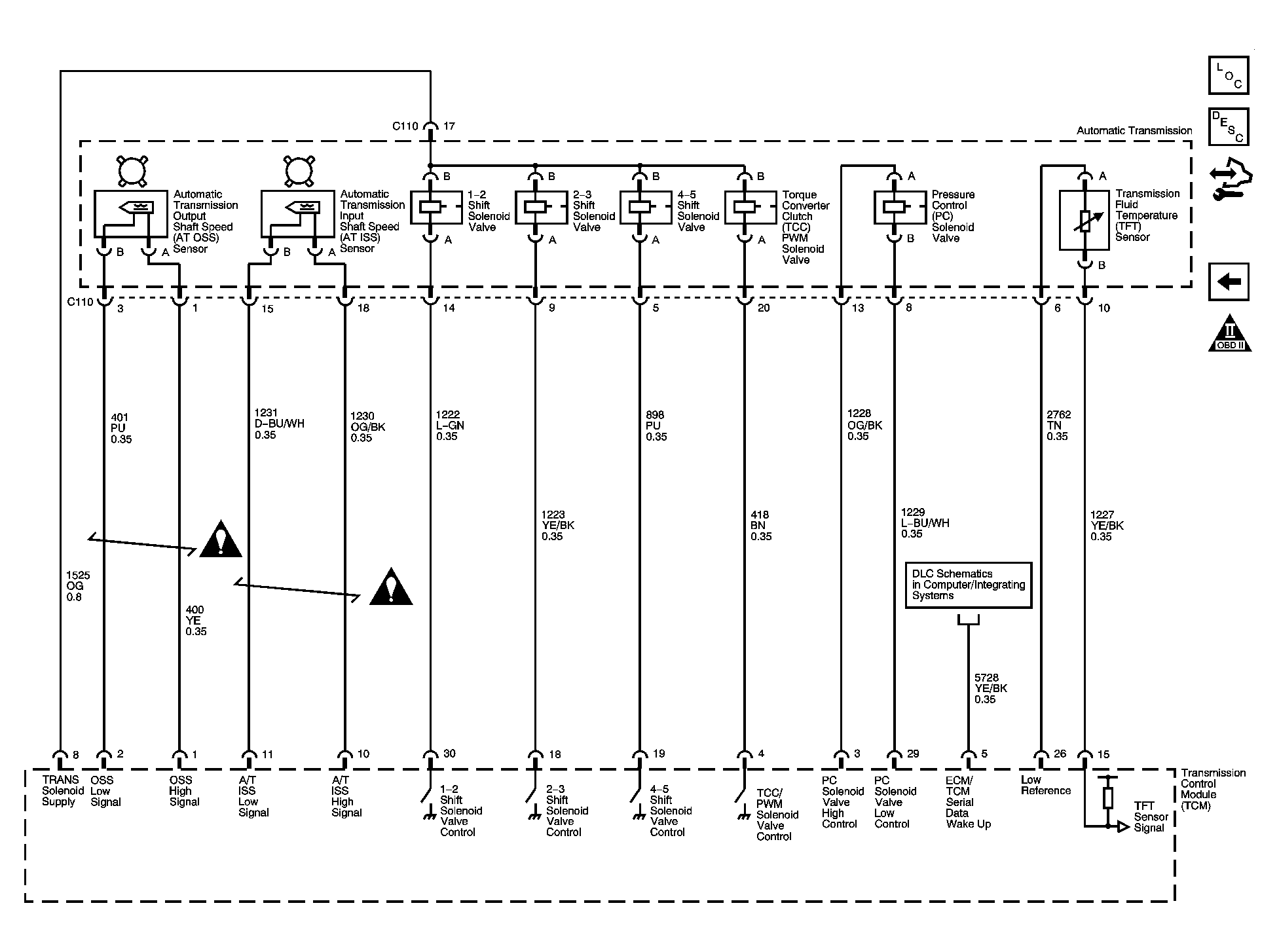

Fig 2: Transmission Sensors and Solenoids Schematics
GM1349932Courtesy of GENERAL MOTORS CORP.
