Drive Belt Tensioner Installation - Right

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

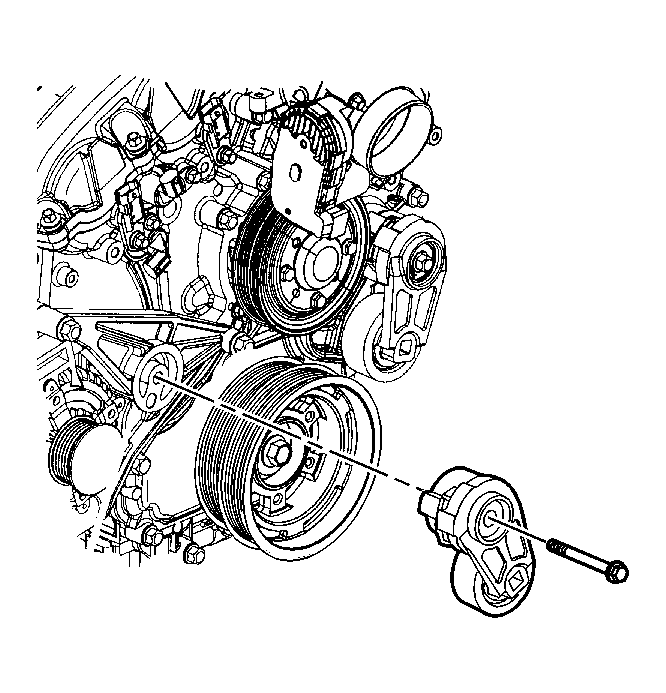

    Fig 1: View Of Right Drive Belt Tensioner
    GM1392403Courtesy of GENERAL MOTORS CORP.
  1. Place the right drive belt tensioner in position to the engine front cover.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the right drive belt tensioner bolt.

    Tighten:  Tighten the right drive belt tensioner bolt to 23 N.m (17 lb ft).
