Inner Drive Belt

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

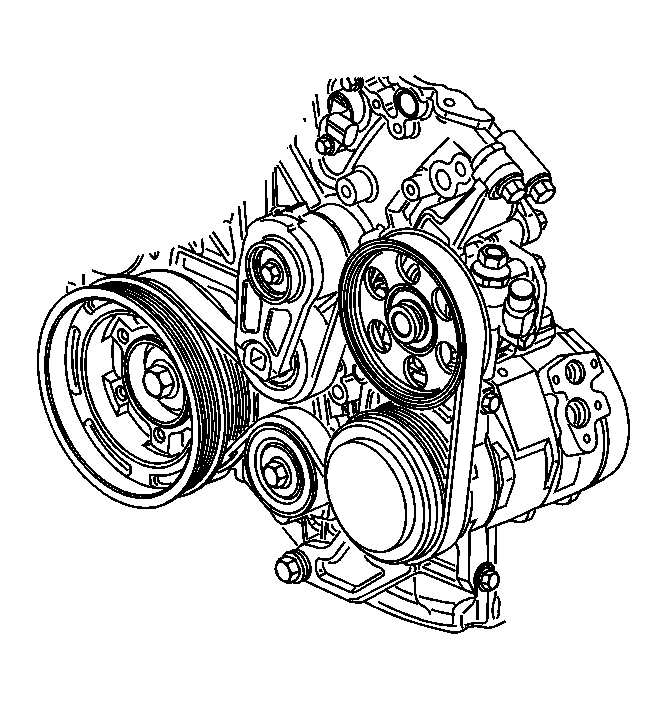

    Fig 1: View Of Inner Drive Belt
    GM1392401Courtesy of GENERAL MOTORS CORP.
  1. Route the inner drive belt around the following:
    • Crankshaft balancer
    • Air conditioning compressor
    • Drive belt tensioner
    • Power steering pump
    2. Fig 2: View Of Drive Belt Tensioner & Pulleys
    GM284263Courtesy of GENERAL MOTORS CORP.
  2. Insert a 1/2 inch drive ratchet into the inner drive belt tensioner.
  3. Rotate the drive belt tensioner clockwise.
  4. Route the remainder of the drive belt around the drive belt idler.
  5. Slowly rotate the drive belt tensioner counter-clockwise until the drive belt is tight.
  6. Remove the 1/2 inch drive ratchet.
  7. Inspect the drive belt for proper seating in all pulleys.
