Upper to Lower Intake Manifold Disassemble Procedure

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Upper-To-Lower Intake Manifold Bolts
    GM1507462Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not reuse the upper-to-lower intake manifold gasket and the intake manifold-to-cylinder head sealing gaskets.
  1. Remove the upper-to-lower intake manifold bolts.
    2. Fig 2: View Of Injector Harness Bracket Bolt
    GM1318829Courtesy of GENERAL MOTORS CORP.
  2. Remove the fuel injector wiring harness bracket bolt from the upper intake manifold.

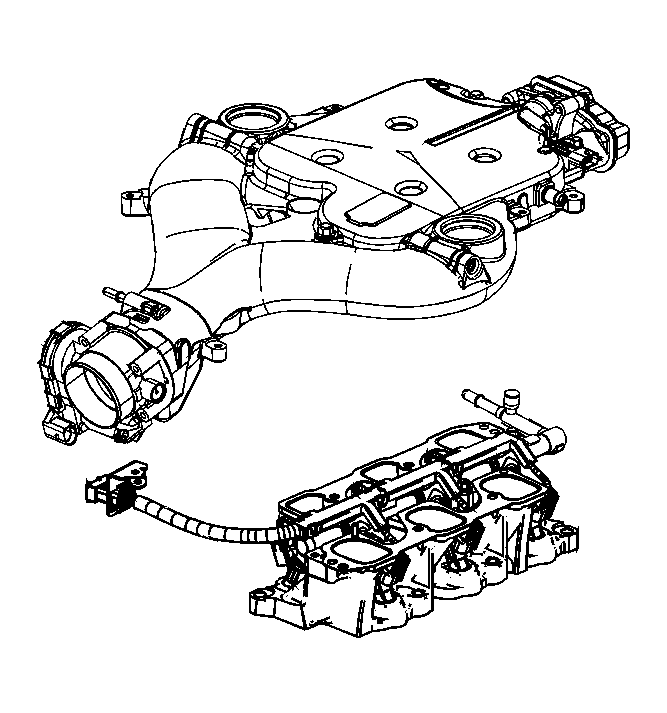

    3. Fig 3: View Of Upper & Lower Intake Manifold
    GM1507463Courtesy of GENERAL MOTORS CORP.
  3. Remove the upper intake manifold from the lower intake manifold.

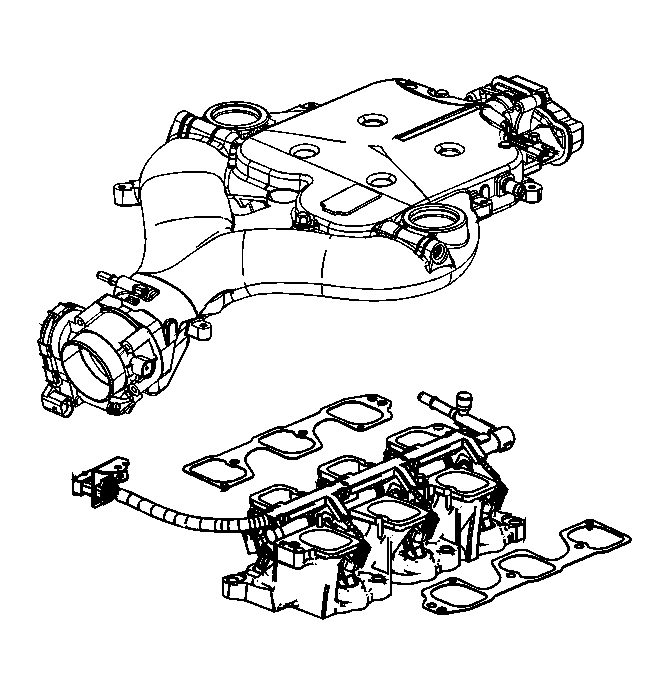

    4. Fig 4: View Of Upper-To-Lower Intake Manifold Gaskets
    GM1507464Courtesy of GENERAL MOTORS CORP.
  4. Remove and discard the upper-to-lower intake manifold gaskets.
