DTC P0974: Notes

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

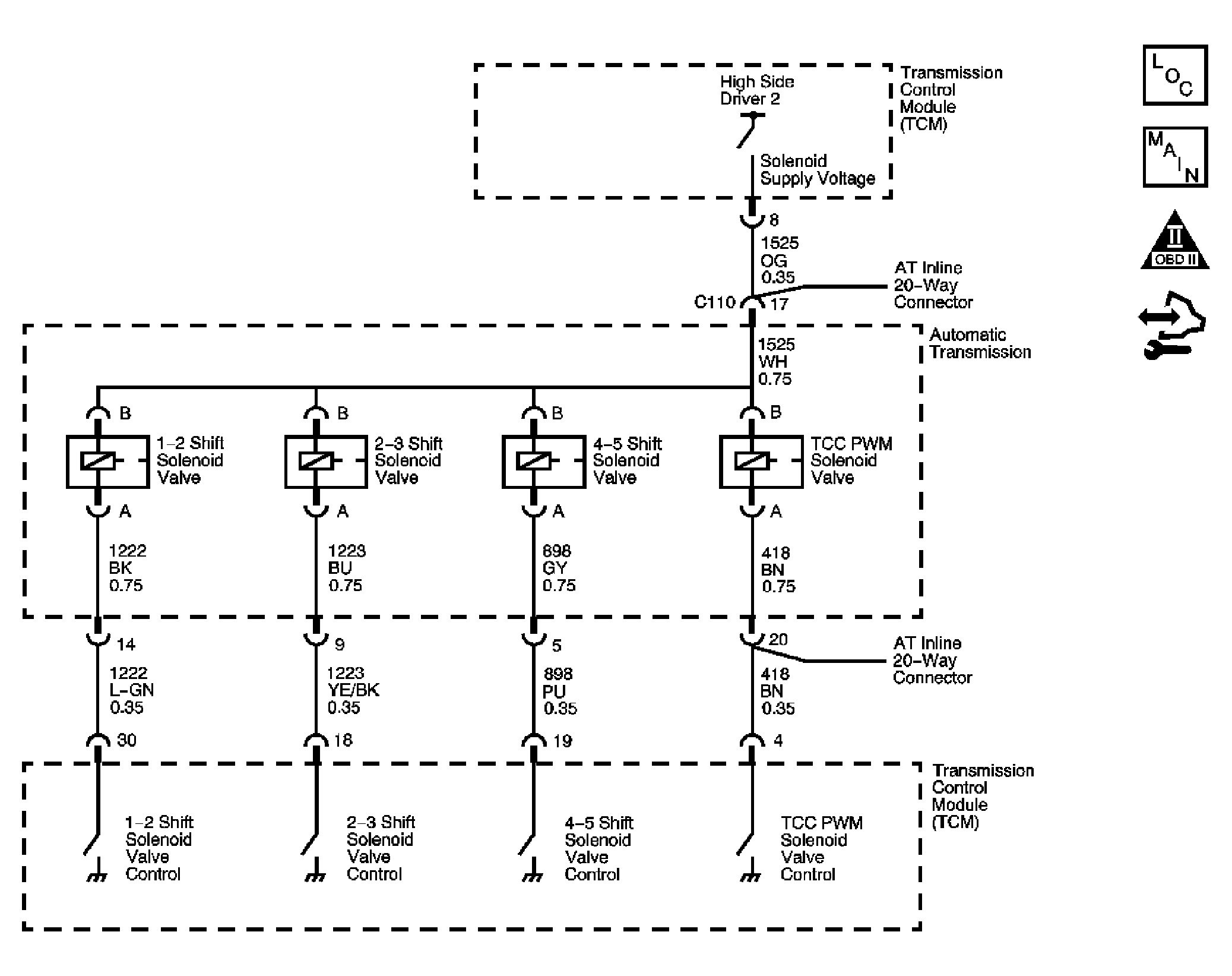

Fig 1: DTC P0974 Circuit
GM1466342Courtesy of GENERAL MOTORS CORP.
