Suspension Controls Schematics

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

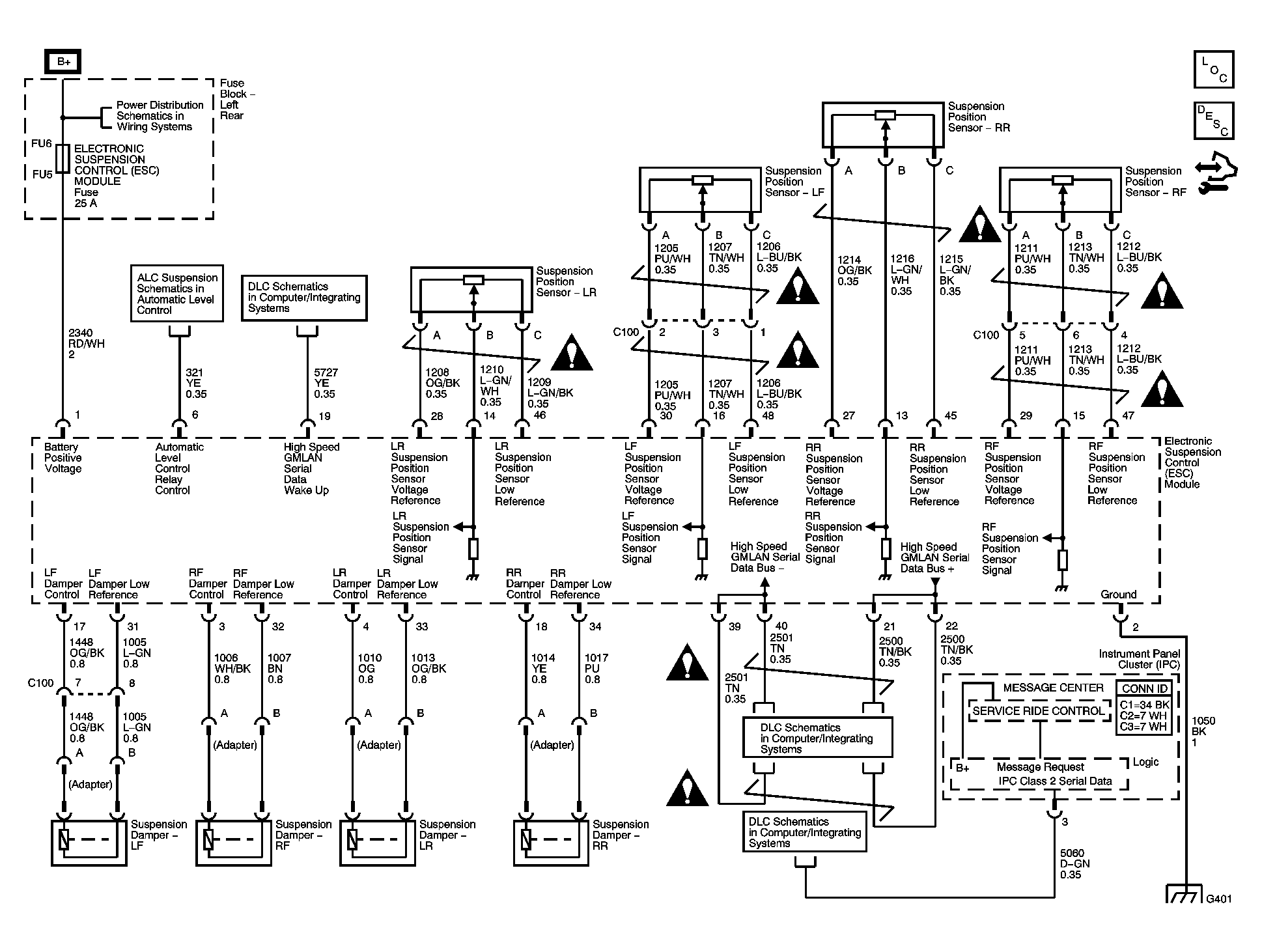

Fig 1: Suspension Controls Schematics
GM1372097Courtesy of GENERAL MOTORS CORP.
