Power Sunroof Schematics

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

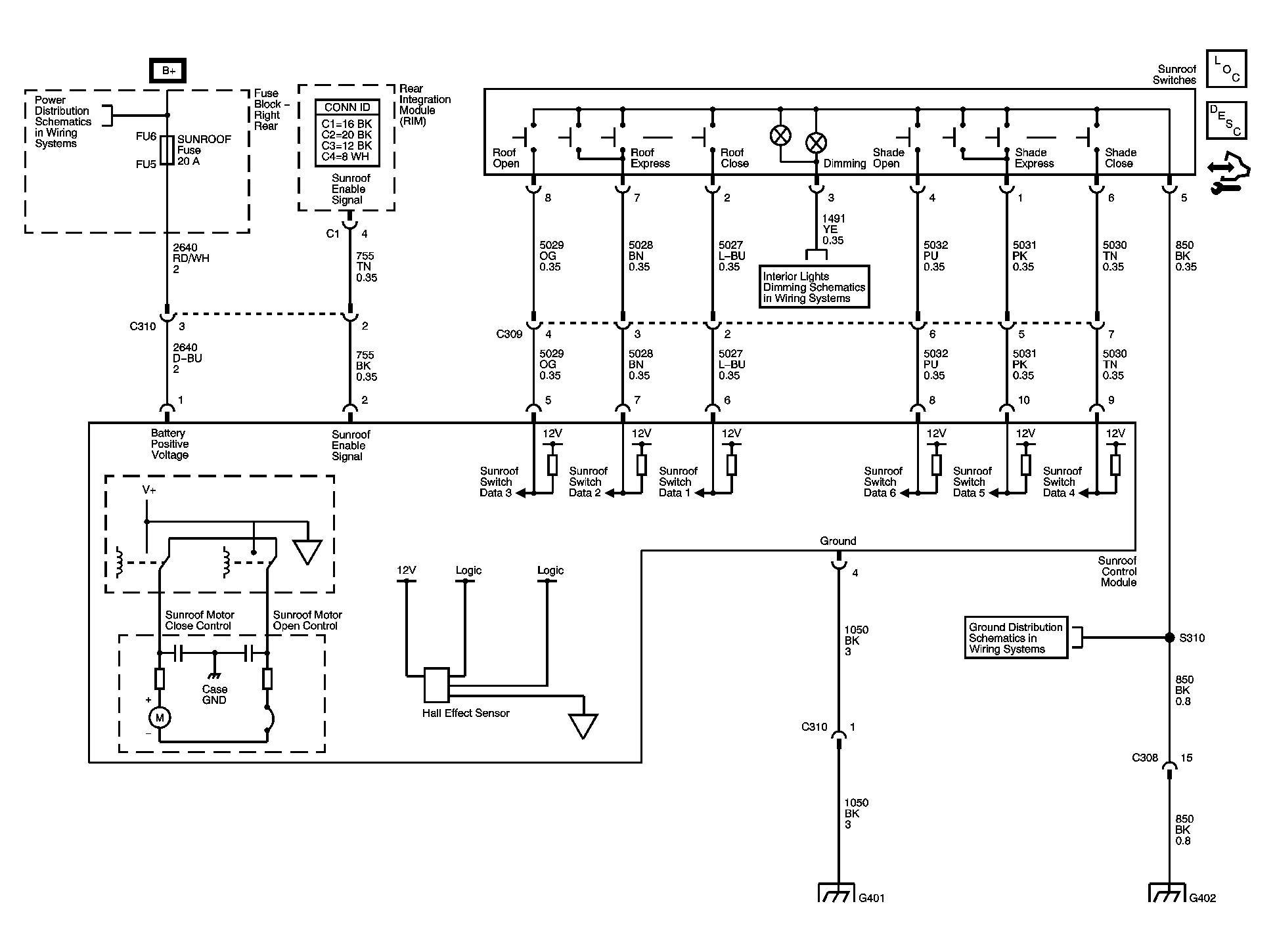

Fig 1: Power Sunroof Schematics
GM1388053Courtesy of GENERAL MOTORS CORP.
