Tools Required

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

J 25034-C  Pulley Remover. See Special Tools .

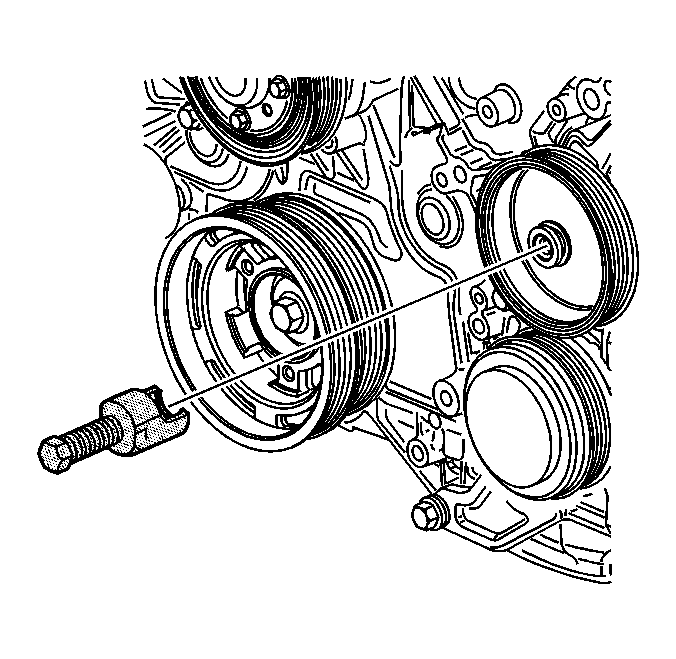

    Fig 1: Identifying J 25034-C
    GM1400016Courtesy of GENERAL MOTORS CORP.
  1. If necessary, using the J 25034-C  , remove the power steering pump pulley in order to access the power steering pump mounting bolts. See Special Tools .
    2. Fig 2: View Of Power Steering Pump
    GM945888Courtesy of GENERAL MOTORS CORP.
  2. Remove the power steering pump bolts.
  3. Remove the power steering pump.
