Rear Seat Schematics

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

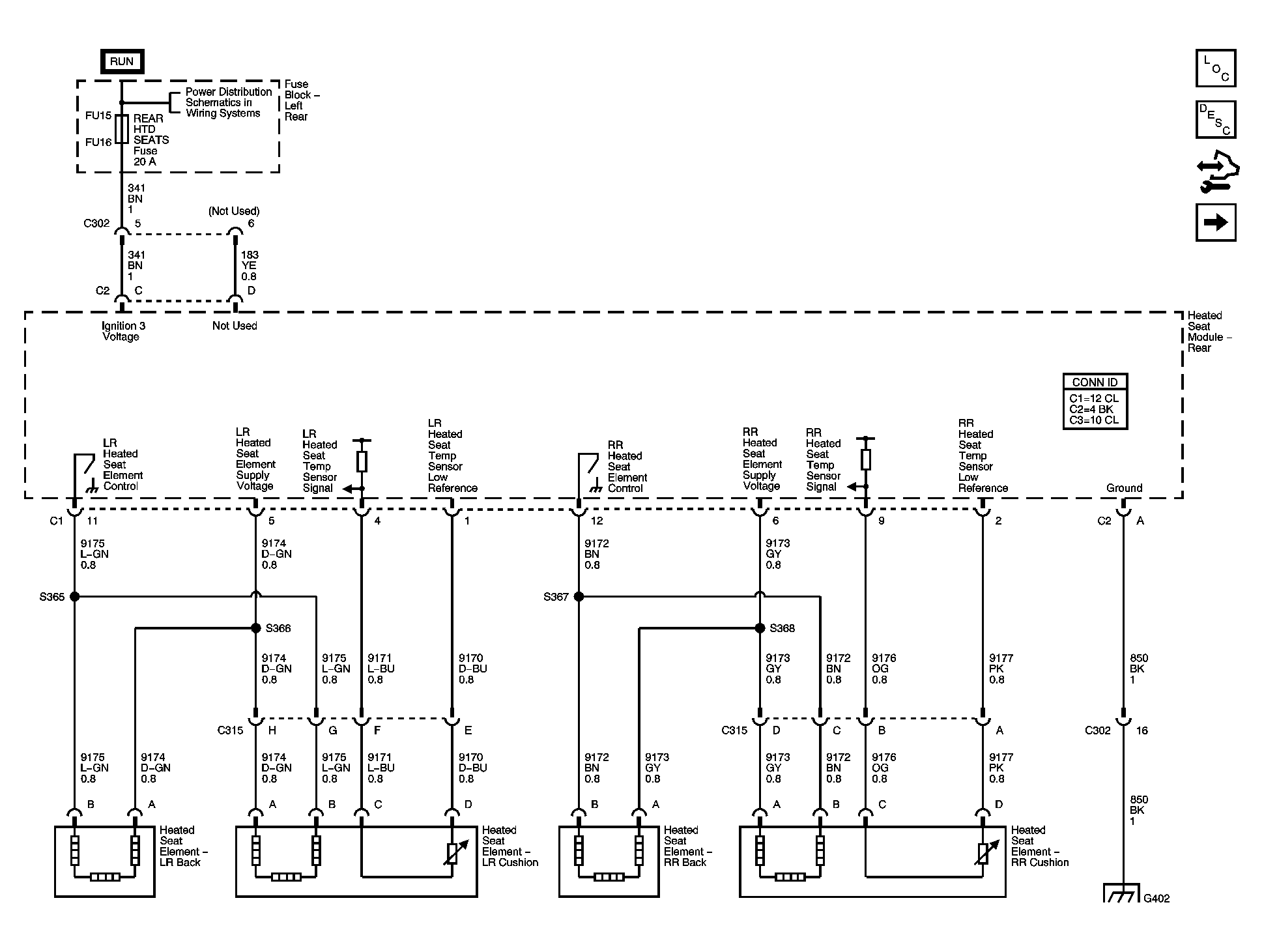

Fig 1: Rear Heated Seat Elements Schematics
GM1524254Courtesy of GENERAL MOTORS CORP.

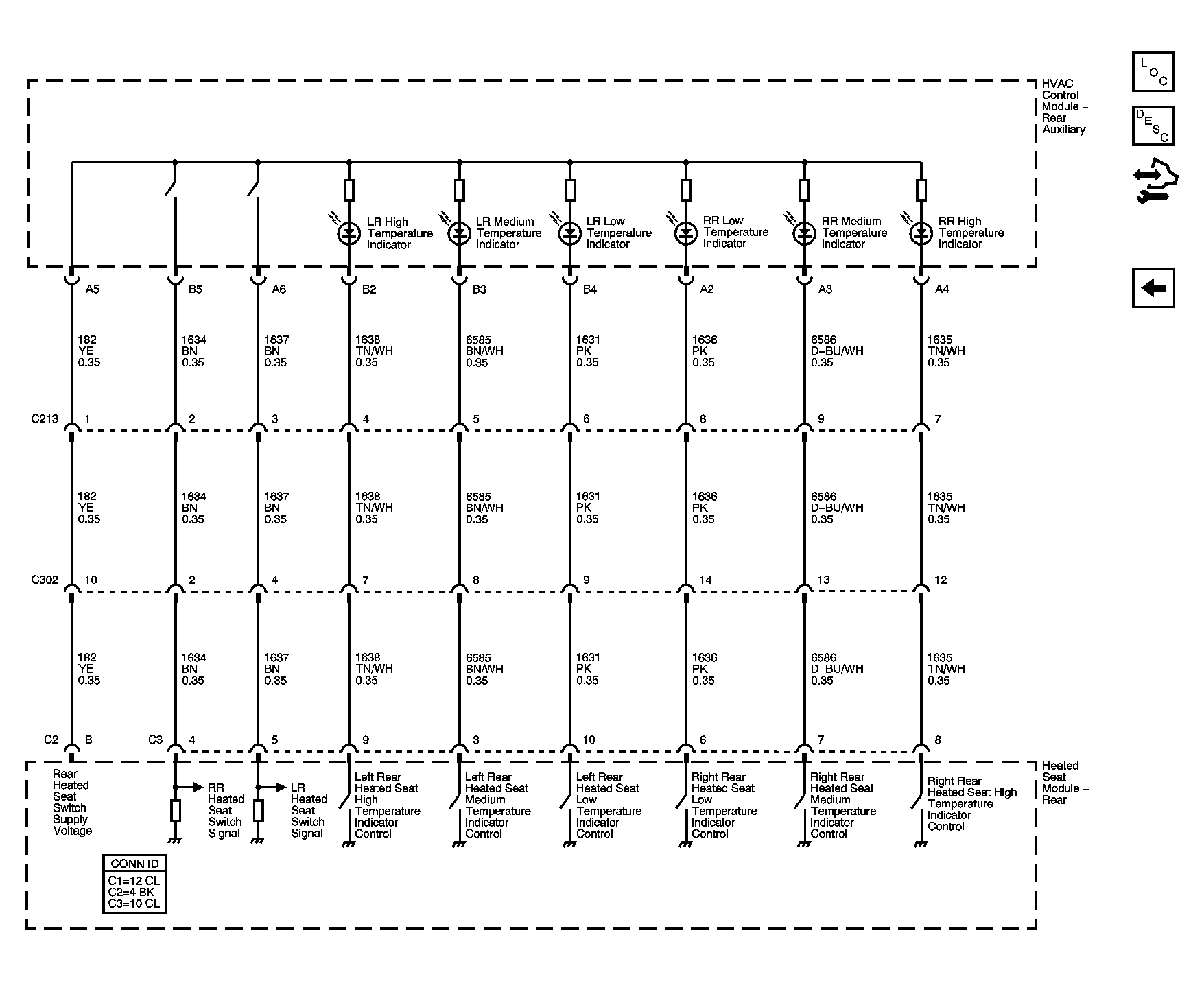

Fig 2: Rear Heated Seat Controls Schematics
GM1524257Courtesy of GENERAL MOTORS CORP.
