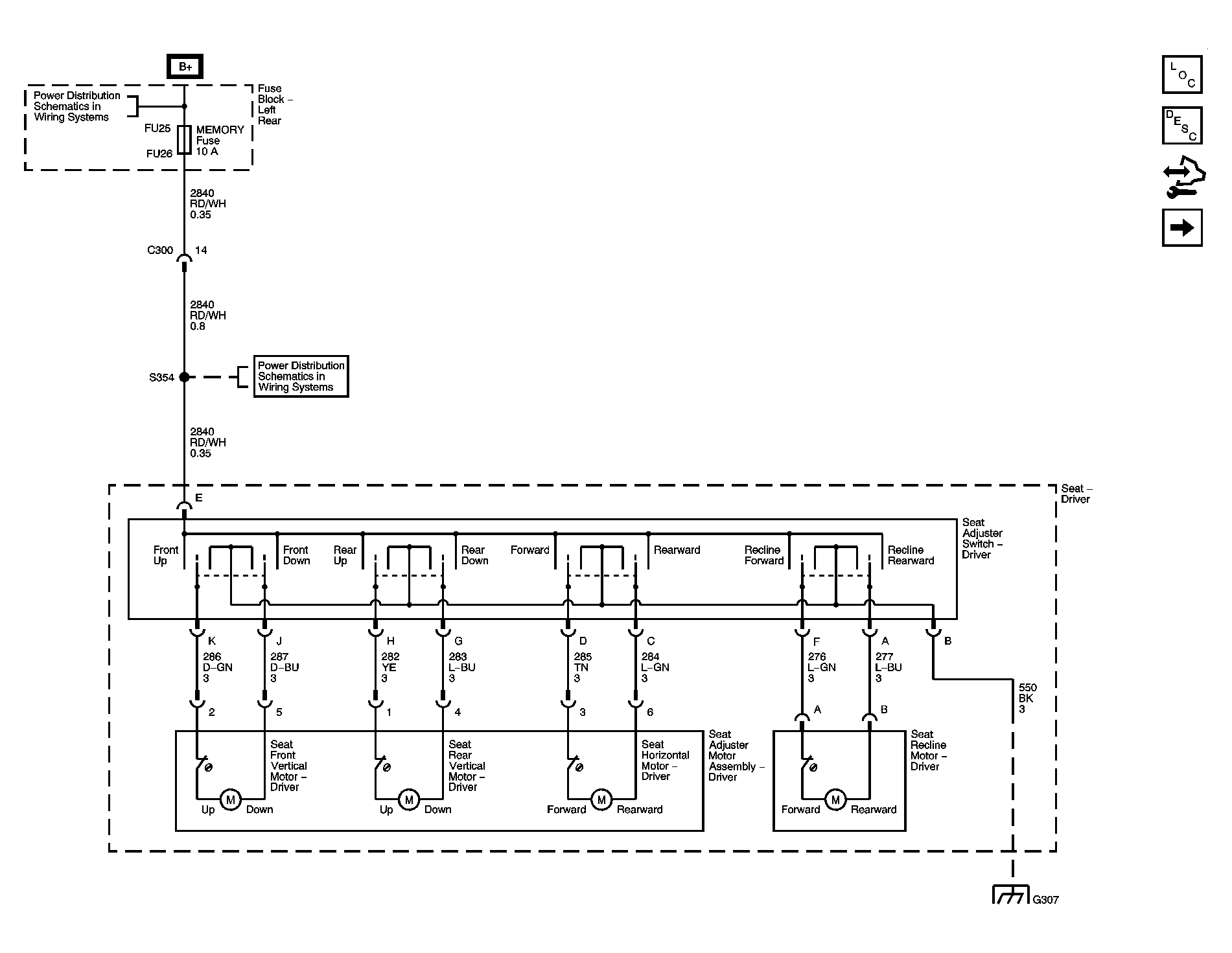

Fig 1: Power Seat Schematics (w/o A45)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Heated Seat Schematics
Courtesy of GENERAL MOTORS CORP.

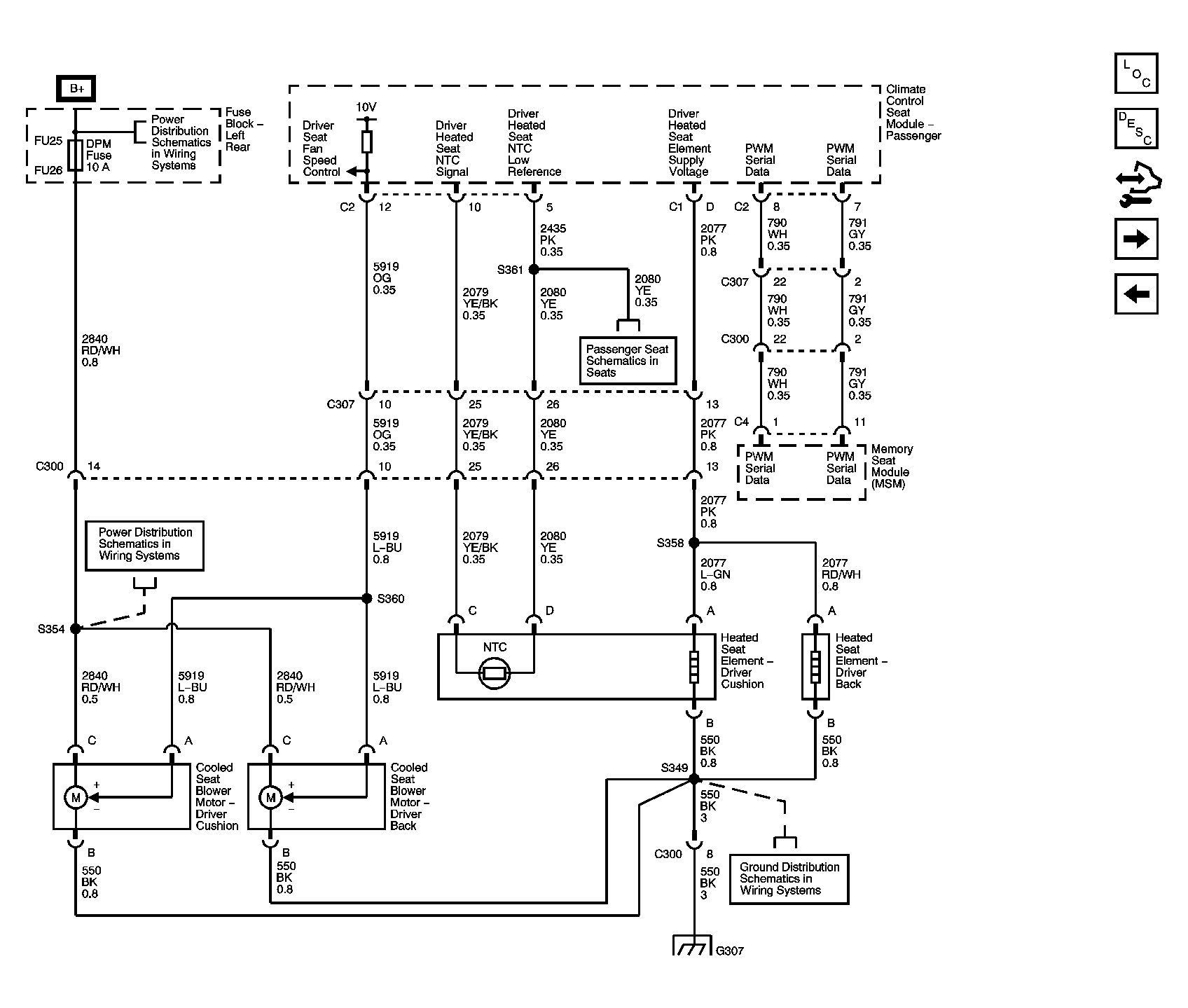

Fig 3: Heated/Cooled Seat Schematics
Courtesy of GENERAL MOTORS CORP.

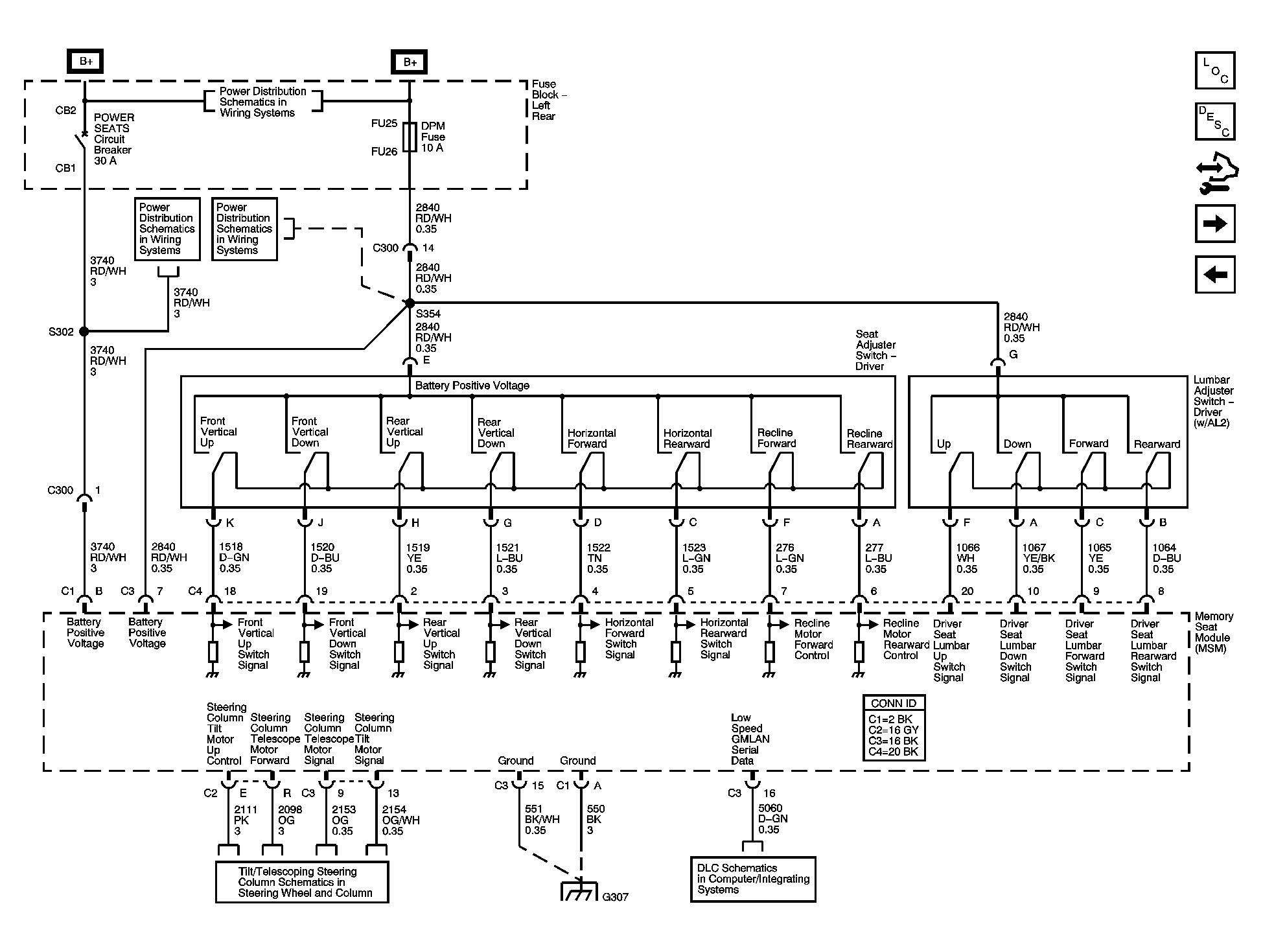

Fig 4: Memory Seat Module Power, Ground and DLC Schematics
