Frame, Trim Cover, Heater, Pad, Blower, Power Adjuster Control Module Replacement - Front Seat Cushion
WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

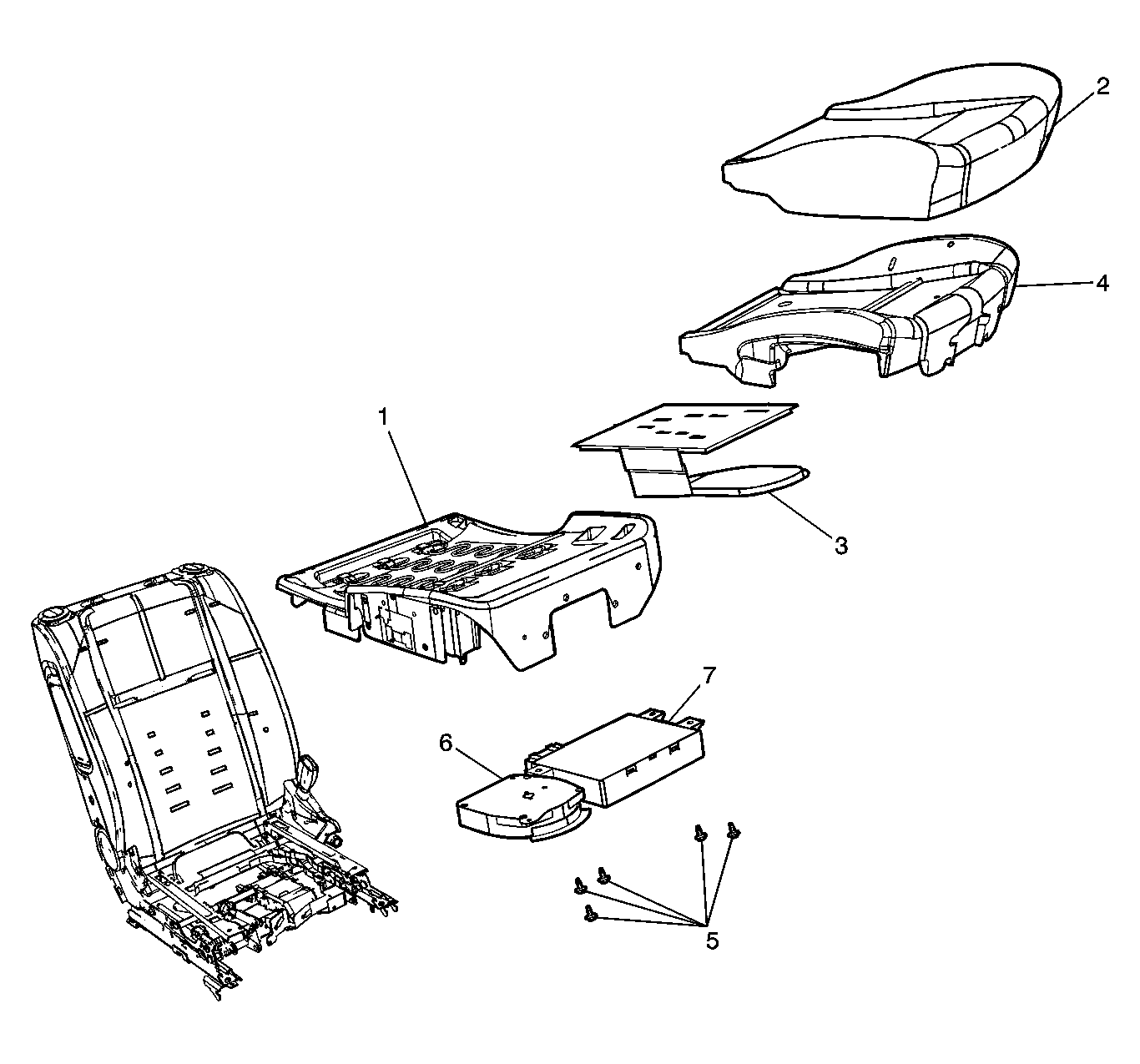

Fig 1: View Of Front Seat Cushion Frame, Trim Cover, Heater, Pad, Blower & Power Adjuster Control Module
Frame, Trim Cover, Heater, Pad, Blower, Power Adjuster Control Module Replacement - Front Seat Cushion
| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| Front Seat Cushion Frame Assembly Replacement Preliminary Procedure: Remove the front seat. Refer to Seat Replacement - Bucket . |
|
| 1 | Frame Assembly, Front Seat Cushion Tip: Disconnect the electrical connectors. |
| Front Seat Cushion Cover Assembly Replacement Preliminary Procedure: Remove the front seat. Refer to Seat Replacement - Bucket . |
|
| 1 | Frame Assembly, Front Seat Cushion Tip: Disconnect the electrical connectors. |
| 2 | Cover Assembly, Front Seat |
| Front Seat Cushion Climate Control Heated Ventilated Preliminary Procedure: Remove the front seat. Refer to Seat Replacement - Bucket . |
|
| 1 | Frame Assembly, Front Seat Cushion Tip: Disconnect the electrical connectors. |
| 3 | Climate Control Heat Ventilated Assembly, Front Seat Cushion |
| Front Seat Cushion Pad Assembly Replacement Preliminary Procedure: Remove the front seat. Refer to Seat Replacement - Bucket . |
|
| 1 | Frame Assembly, Front Seat Cushion Tip: Disconnect the electrical connectors. |
| 4 | Pad Assembly, Front Seat Cushion |
| Front Seat Cushion Blower Assembly Replacement Preliminary Procedure: Remove the front seat. Refer to Seat Replacement - Bucket . |
|
| 1 | Frame Assembly, Front Seat Cushion Tip: Disconnect the electrical connectors. |
| 5 | Screw, Module Blower |
| 6 | Blower Assembly, Front Seat Cushion Tip: Disconnect the electrical connectors. |
| Front Seat Memory Adjuster Module Assembly Replacement Preliminary Procedure: Remove the front seat. Refer to Seat Replacement - Bucket . |
|
| 1 | Frame Assembly, Front Seat Cushion Tip: Disconnect the electrical connectors. |
| 7 | Module Assembly, Front Seat Adjuster Memory Tip: Disconnect the electrical connectors. |
