Instrument Cluster Schematics

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

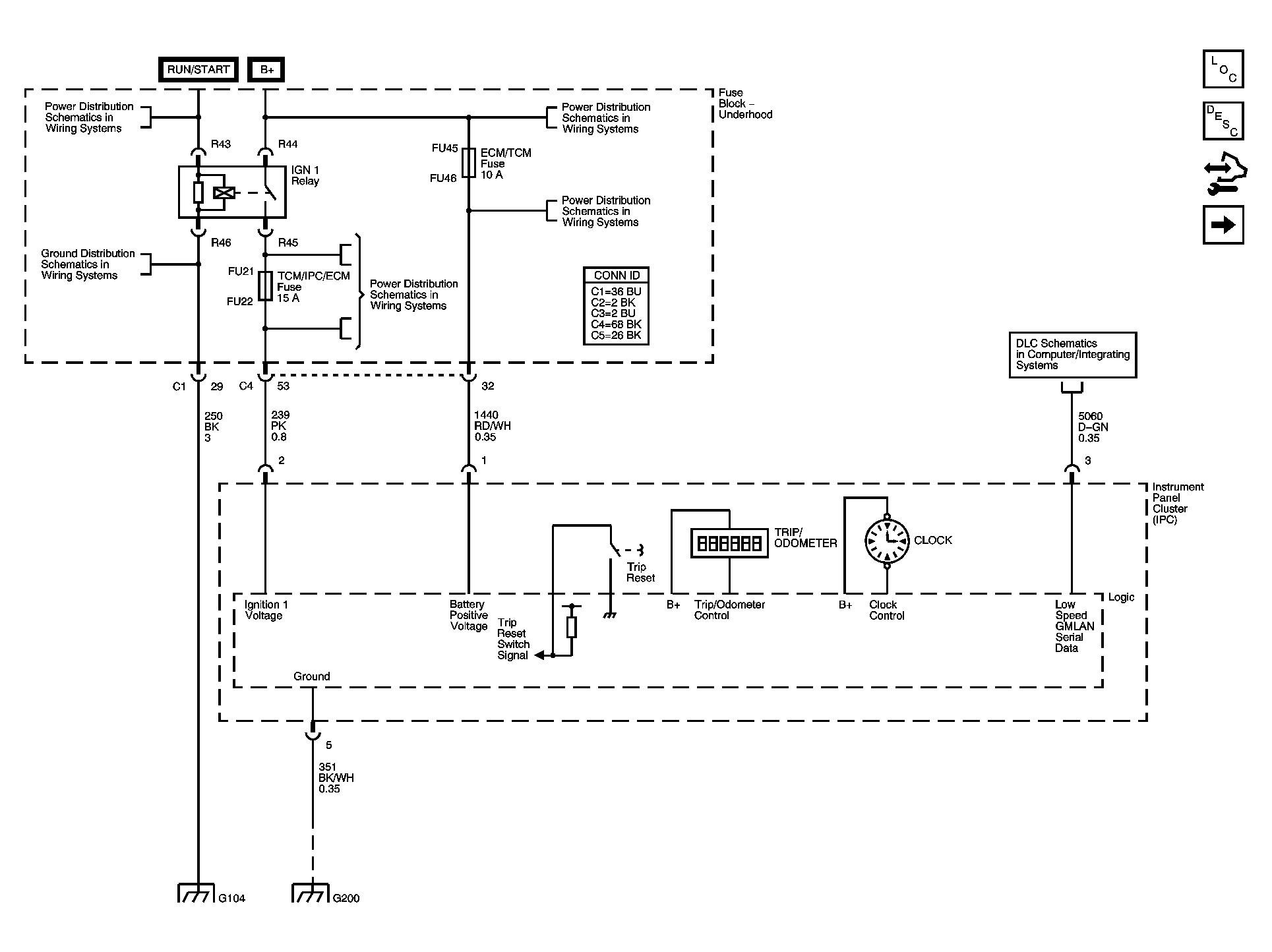

Fig 1: Power, Ground, DLC, Odometer and Clock Schematics

Courtesy of GENERAL MOTORS CORP.

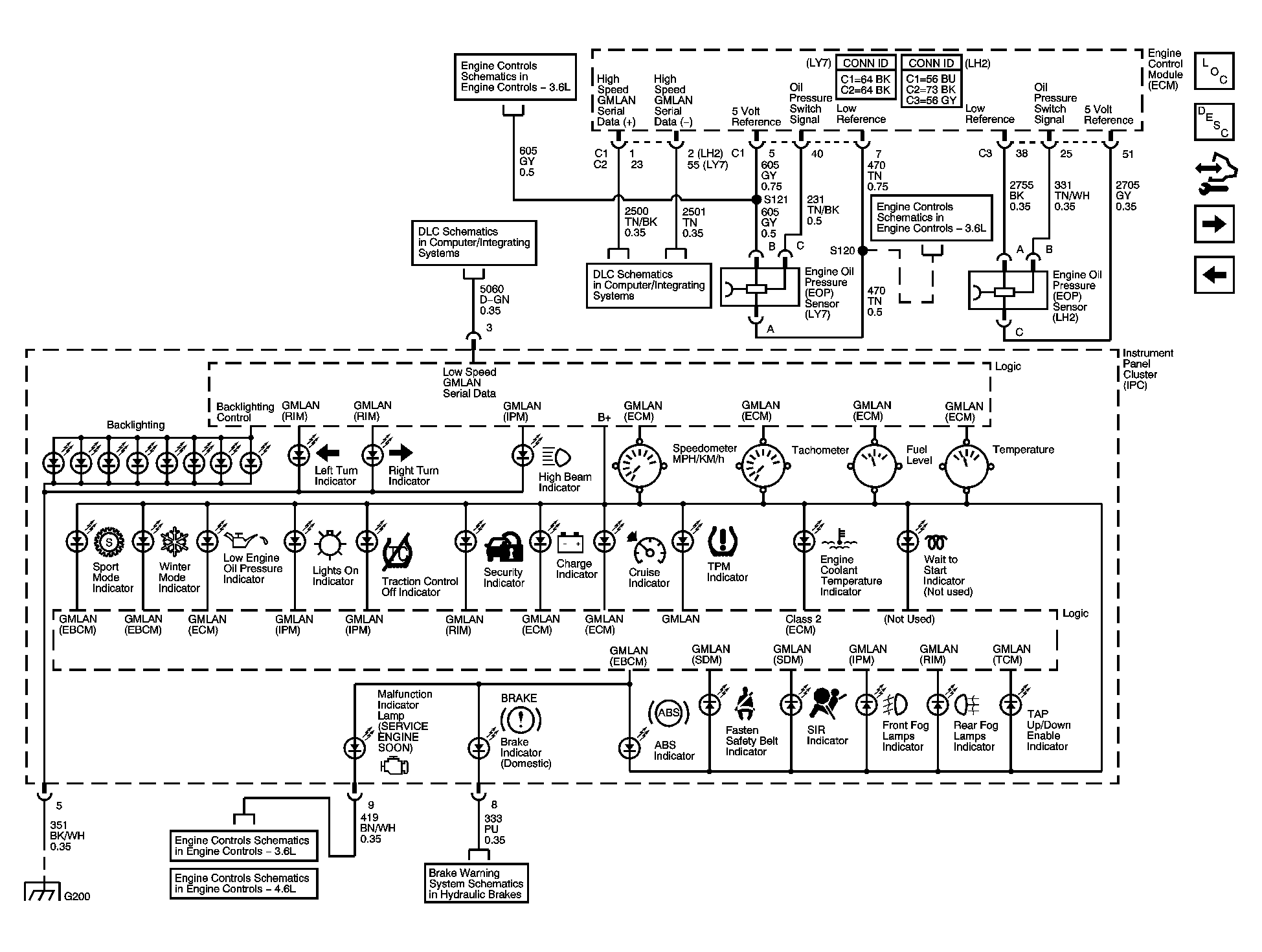

Fig 2: Indicators Schematics

Courtesy of GENERAL MOTORS CORP.

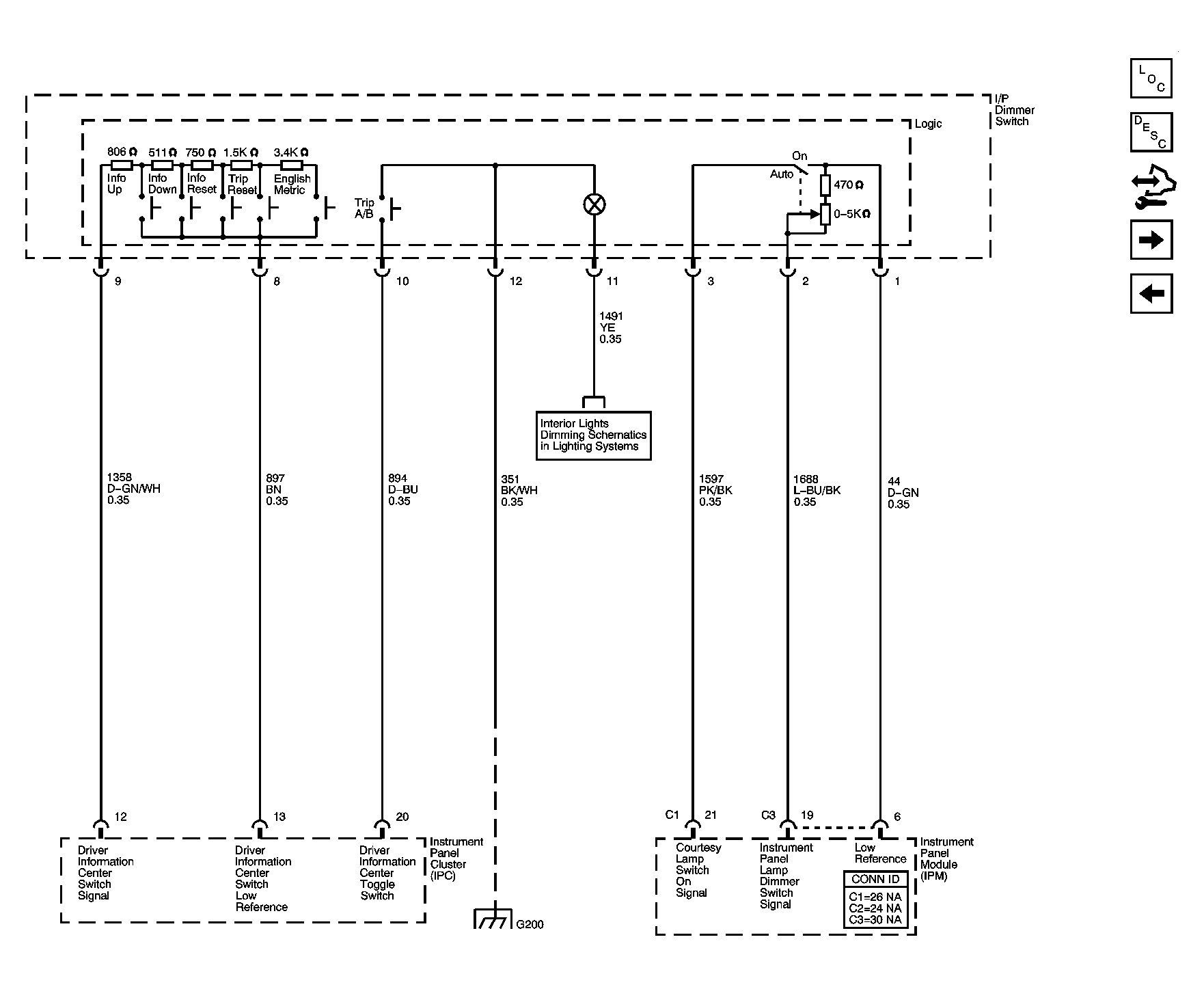

Fig 3: DIC/Dimmer Switch Schematics

Courtesy of GENERAL MOTORS CORP.

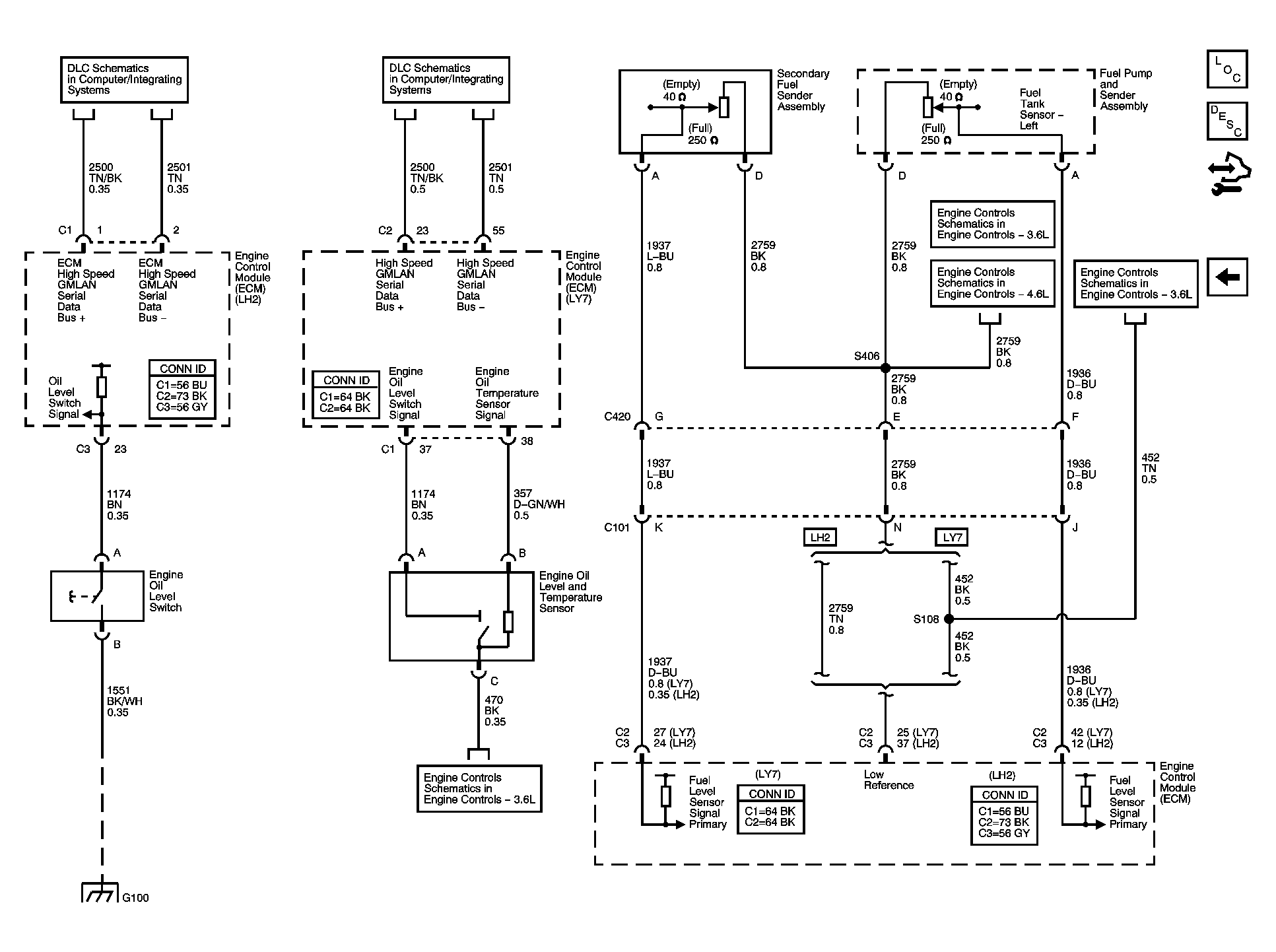

Fig 4: Engine Oil Level Switch, Engine Oil Level & Temp. Sensor, & Fuel Senders Schematics

Courtesy of GENERAL MOTORS CORP.
