Headlight Leveling Schematics

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

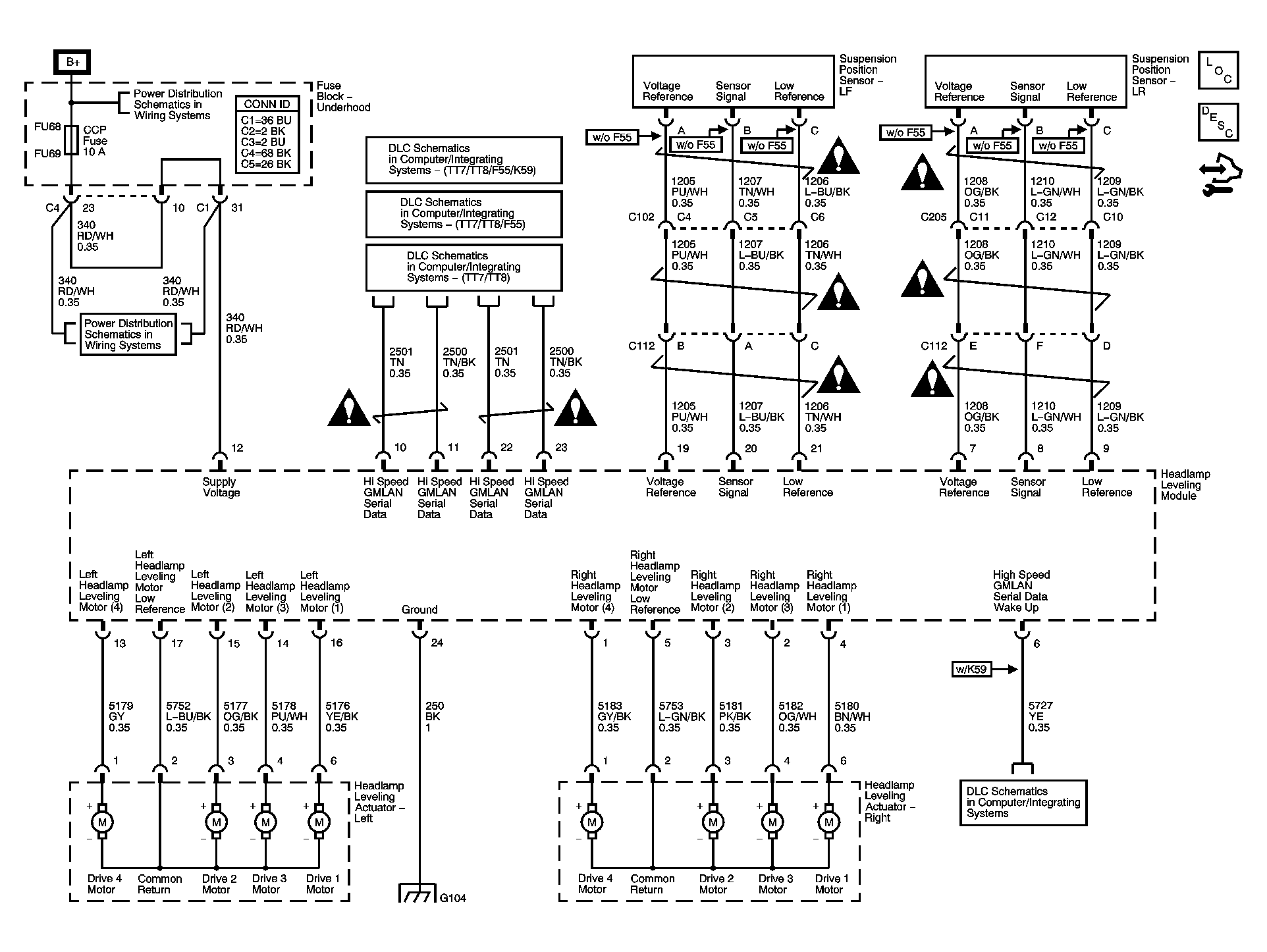

Fig 1: Headlamp Power, Ground, DLC and Indicator Schematics
GM1397464Courtesy of GENERAL MOTORS CORP.
