Section 149 (Steering Wheel And Steering Column)
>>
Schematic and Routing Diagrams
>>
Column/Ignition Lock Schematics
Column/Ignition Lock Schematics
WARNING:
This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

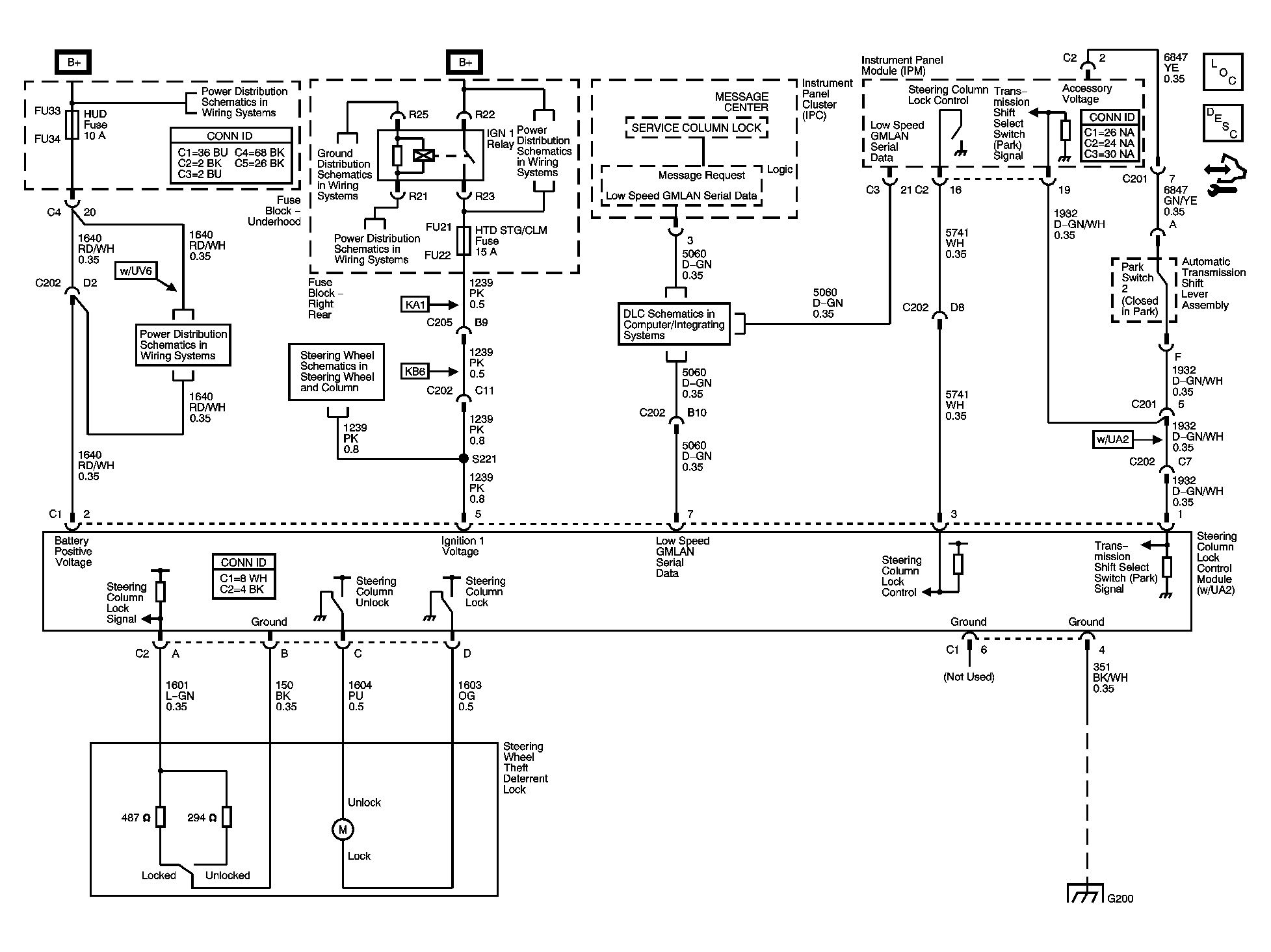

Fig 1: Column/Ignition Lock Schematics
Courtesy of GENERAL MOTORS CORP.
